Getting the latest technology doesn’t have to break the budget with the Pioneer SPH-DA77DAB featuring the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Dual Phone Bluetooth®, plus dual camera inputs.

Choose from a host of entertainment options, including USB with Full HD video playback supported**, DAB+ tuner, AM/FM tuner or Bluetooth music streaming, Android & iPhone Smartphone 2-way mirroring* (via cable connection) all controlled from a large, highly detailed 6.8-inch WVGA capacitive touch screen.

To make your in-car experience even easier, we’ve added a quick access capacitive button for Apple CarPlay and Android Auto users as well as an on-screen quick access bar for Pioneer source and audio control.

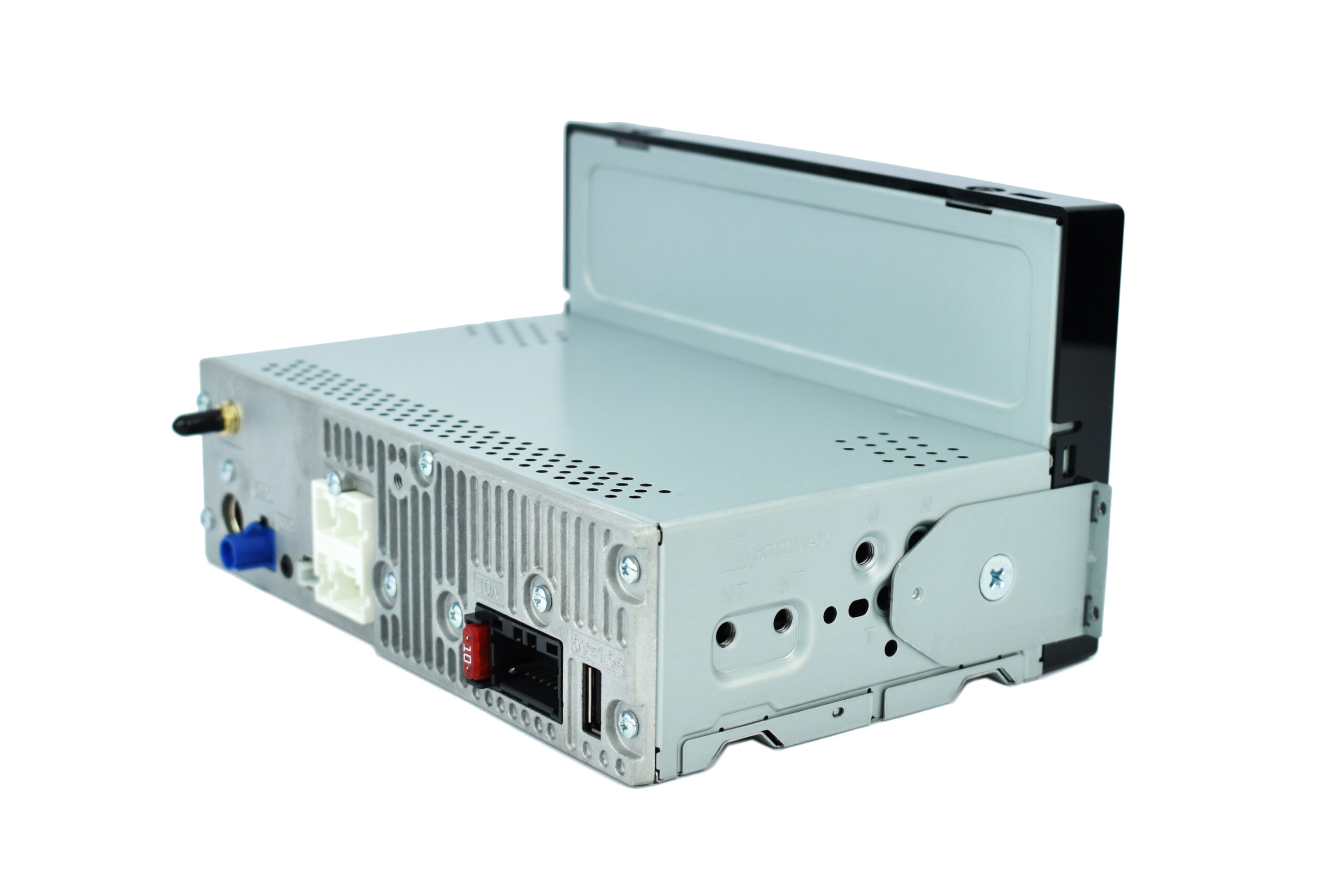

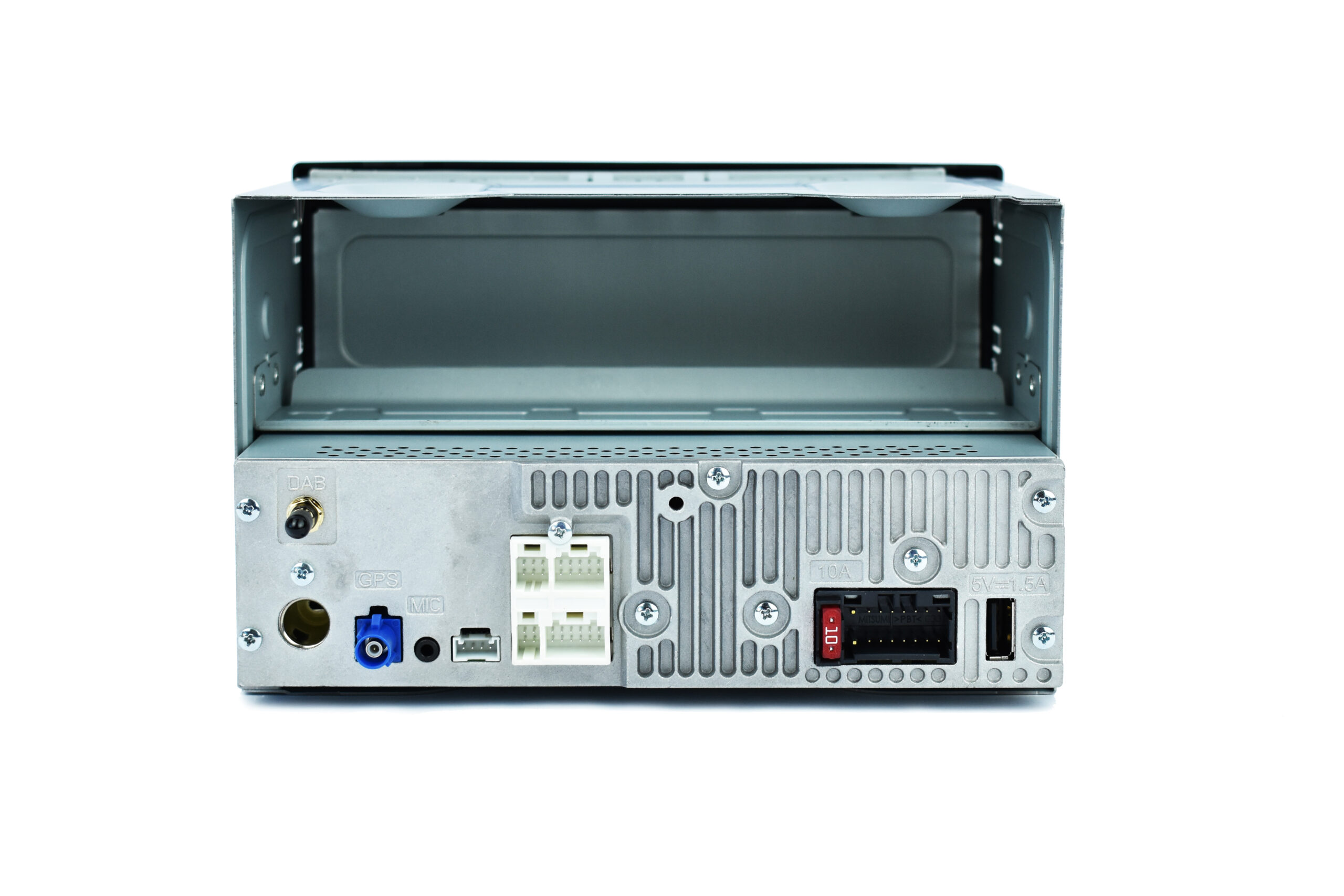

Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 x 4V Pre-outs (FRT, RR & SW) to make sure quality at high volumes can be achieved.

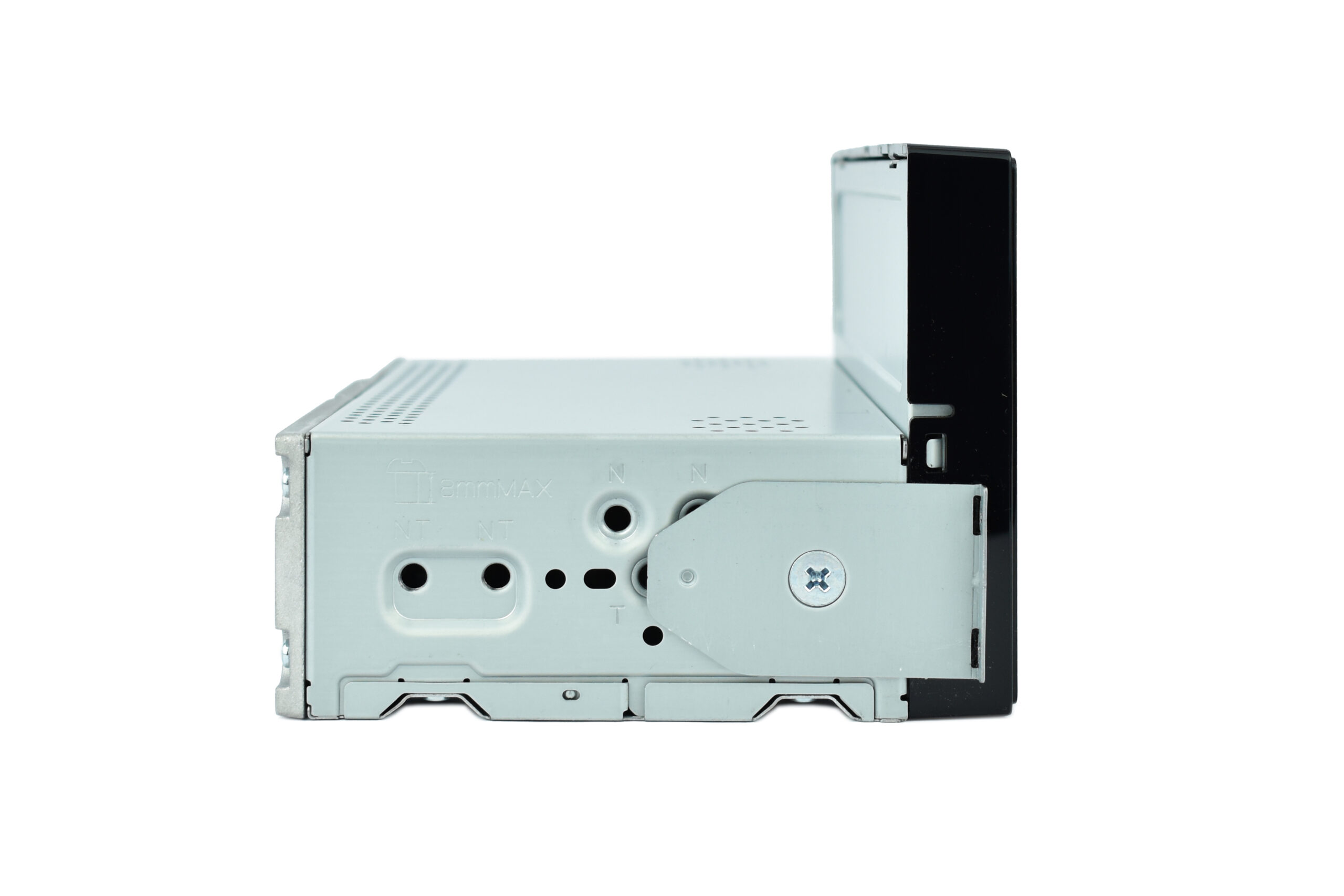

Installation is made easy with a 1-DIN chassis design with a depth of 125mm leaving more space for (and less pressure on) wiring behind your dash!

The Pioneer SPH-DA77DAB is designed to provide amazing functionality with a host of new improvements to make your in-car experience safe, easy and fun!

– APPLE CARPLAY™ (WIRELESS OR WIRED CONNECTION)
The best iPhone experience on four wheels Apple CarPlay is a smart and safe way to control your iPhone® in the car. Apple CarPlay enables you to make calls, navigate with Apple Maps, WAZE or Google Maps, listen to music, plus send and receive SMS messages.

– ANDROID AUTO™ (WIRELESS OR WIRED CONNECTION)
Enjoy seamless connectivity and control of your Android smartphone in the car. Activate by using your voice, or the pressing the Pioneer touch-screen, Android Auto allows you to make phone calls, navigate with Google Maps or WAZE, listen to music and send/receive SMS messages.*

Features:

– 6.8″ large capacitive touchscreen.
– Wireless Apple CarPlay
– Wireless Android Auto (phone dependent)
– Spotify and WAZE
– DAB+ and FM tuner.
– Google Maps via Apple Carplay .
– Siri Eyes Free.
– Bluetooth for wireless telephony and music streaming.
– 2x camera input

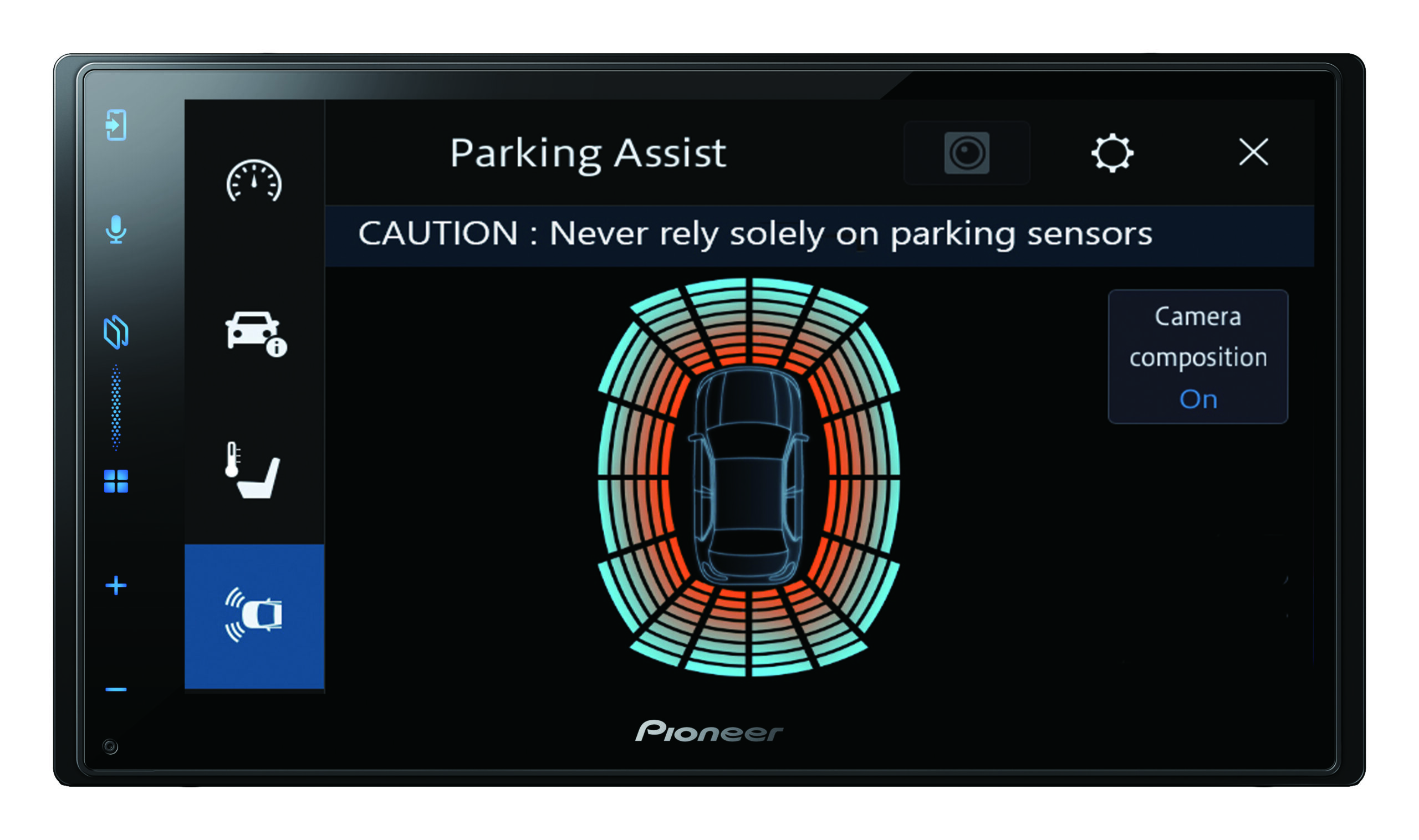

– Parking guides for camera.
– 4 x 50 watts.
– Short chassis (125 mm)

– 4x50W
– Näytön koko: 6,8″
– Bluetooth
– Apple CarPlay (langallinen ja langaton)
– Android Auto (langallinen ja langaton)
– Weblink
– 3 x RCA-linjalähtö 4V ( etu & taka & sub )
– Tuetut tiedostomuodot: MP3, WMA, AAC, WAV & FLAC, H.264, MKV, FLV, TS ja MPEG4 (Full HD) Mpeg2 videotiedostot ja JPEG kuvatiedostot
– USB-liitäntä
– AUX-in liitäntä
– 13-kaistainen graafinen taajuuskorjain
– Aikaviivekorjaus
– Network mode
– Ylipäästösuotimet: 25/32/40/50/63/80/100/125/160/200/250 Hz
– Alipäästösuotimet SUB-lähdölle: 25/32/40/50/63/80/100/125/160/200/250 Hz
– 1x liitäntä peruutuskameralle

taajuuskorjaimen säätötaajuudet 50Hz/80Hz/125Hz/200Hz/315Hz/500Hz/800Hz/1.25kHz/2kHz/3.15kHz/5kHz/8kHz/12.5kHz
taajuuskorjaimen korostus/vaimennus: +- 12dB jokaiselle kaistalle erikseen ( 1 dB portain )

– ISO-liittimet
– RDS-radio

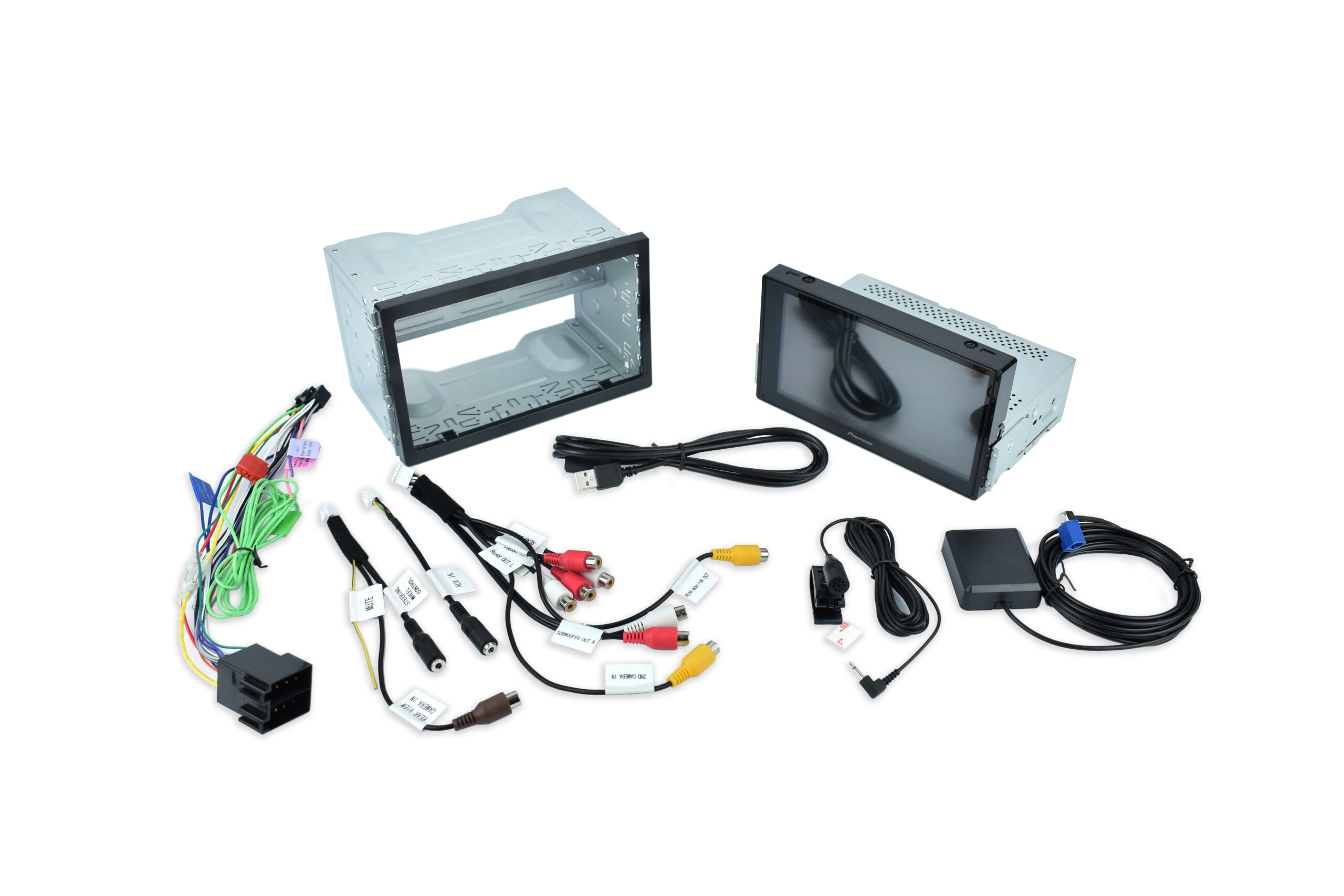

Pakkaus sisältää:
1x USB jatkojohto
1x GPS antenni
1x Ulkoinen mikrofoni handsfree puheluita varten
