HELIX V EIGHTEEN DSP – Connectivity beyond expectations
Whether it′s an upgrade for a multichannel premium sound system or even the design of an entirely new, extensive audio configuration: The HELIX V EIGHTEEN DSP is the all-in-one tool for anyone with insatiable audio system ambitions. This all-purpose miracle sets new standards for the enhancement and implementation of highly complex audio setups.

Multifunctionality and intelligent adaptation for a breathtaking audio experience
Following the Pure Class GD concept, this 18-channel amplifier combines exceptional sound quality and high performance, delivering an impressive musical experience even for the most discerning audiophiles. Moreover, the HELIX V EIGHTEEN DSP features an equal number of 18 highlevel inputs with up to 32 V RMS input sensitivity, enabling an 1:1 input-to-output routing. Especially when the exchange of existing components poses an obstacle and only the expansion through another amplifier is possible, the V EIGHTEEN DSP, with its extensive adaptation capabilities, is the ideal problem solver. The management of the remarkable twenty (20!) separate DSP channels is handled by two extremely powerful ″Fixed Point″ Audio DSPs with 64 Bit resolution, in conjunction with our unique DSP PC-Tool.

Our Smart Control Port (SCP) simplifies accessory connection, providing a compact and secure plug connection along with integrated power for remote controls such as the CONDUCTOR or DIRECTOR. The integrated HEC Slot allows system expansions like Bluetooth® HD Audio Streaming, High-Resolution Audio Streaming via USB, and more.

Virtual Channel Processing – this is how signal routing works today
The adaptation to modern OE sound systems via an increasing number of inputs has a significant impact on the complexity of the signal routing inside the amplifier. Especially when several input signals are mixed together and then split again into multi-way systems, conventional routing concepts quickly reach their limits. Audiotec Fischer′s new multi-stage ″Virtual Channel Processing″, in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to realize even highly complex system configurations. Besides, it allows to freely assign our proprietary FX sound features such as ″RealCenter″ or ″Augmented Bass Processing″.

Rapid processing power – thanks to ACO
Of course, the HELIX V EIGHTEEN DSP is equipped with our proprietary 32 Bit ACO platform, which doesn’t just take over all control tasks ultra-fast, but also handles a bunch of audio functions: Fantastic sound effects such as Augmented Bass Processing or Real Center are implemented as well as an 18-channel Input EQ including Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios, which already include a sound setup ex works.

DSP PC-Tool 5 feat. TuneEQ – powerful features for the ultimate sound experience
Of course, the HELIX V EIGHTEEN DSP can be easily configured via our professional and exceptionally intuitive DSP PC-Tool 5. The familiar, numerous setting options leave nothing to be desired and guarantee an extremely precise sound adjustment even for complex system configurations. And thanks to the new, proprietary TuneEQ function for automated frequency response correction, you also save a lot of time when optimizing your sound.

Perfect sound without compromises
The sound performance of the new HELIX V EIGHTEEN DSP is as impressive as its range of features. The highly efficient Class GD technology and excellent A/D and D/A converters from BurrBrown ensure optimal sound performance, best possible signal-to-noise ratio and lowest distortion. Thus, despite its extremely high flexibility and super compact design, the HELIX V EIGHTEEN DSP is a sound masterpiece that does not need to hide from the absolute top class at all.

Features
20 DSP channels for maximum flexibility with multi-channel sound upgrades
18-channel amplifier with Pure Class GD concept, which combines exceptional sound quality with high performance
High power 18-channel highlevel input with up to 32 V RMS input sensitivity and ADEP.3 circuit
1:1 IOR (Input-to-Output Routing) – same number of highlevel inputs and amplifier outputs
Up to 160 W RMS output power per channel into 2 Ω
TwinDSP Power – two extremely powerful “fixed point” Audio DSPs with 64 Bit
VCP (Virtual Channel Processing) allows even more flexible configuration for highly complex sound systems
ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:
ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.
Compact, future-proof SCP (Smart Control Port) for connecting remote controls and accessories
HEC slot for system add-ons like Bluetooth® HD Audio Streaming, High Resolution Audio Streaming via USB etc.
Optical digital input in SPDIF format and two processed signal outputs
Start-Stop capable power supply with extended input voltage range up to 18 V – ideal for modern EV vehicles
Automatic Remote switch
Compact design with low heat dissipation thanks to extraordinary efficiency

Power RMS ≤ 1% THD+N
– @ 4 Ohms Channel 1 – 12: 70 Watts
Channel 13 – 18: 75 Watts
– @ 2 Ohms Channel 13 – 18: 120 Watts
– @ 1 Ohm –
– bridged @ 4 Ohms –
– bridged @ 2 Ohms –
Max. output power per channel* Channel 1 – 12: Up to 100 Watts RMS @ 3 Ohms
Channels 13 – 18: Up to 160 Watts RMS @ 2 Ohms
Amplifier technology Pure Class GD
Inputs 6 x RCA / Cinch
18 x Highlevel speaker input
1 x Optical SPDIF (12 – 96 kHz)
1 x Remote In
Input sensitivity RCA / Cinch: max. 4 or 8 Volts
Highlevel: max. 16 or 32 Volts
Input impedance RCA / Cinch 12 kOhms
Input impedance highlevel 9 – 33 Ohms or 20 kOhms with ADEP.3

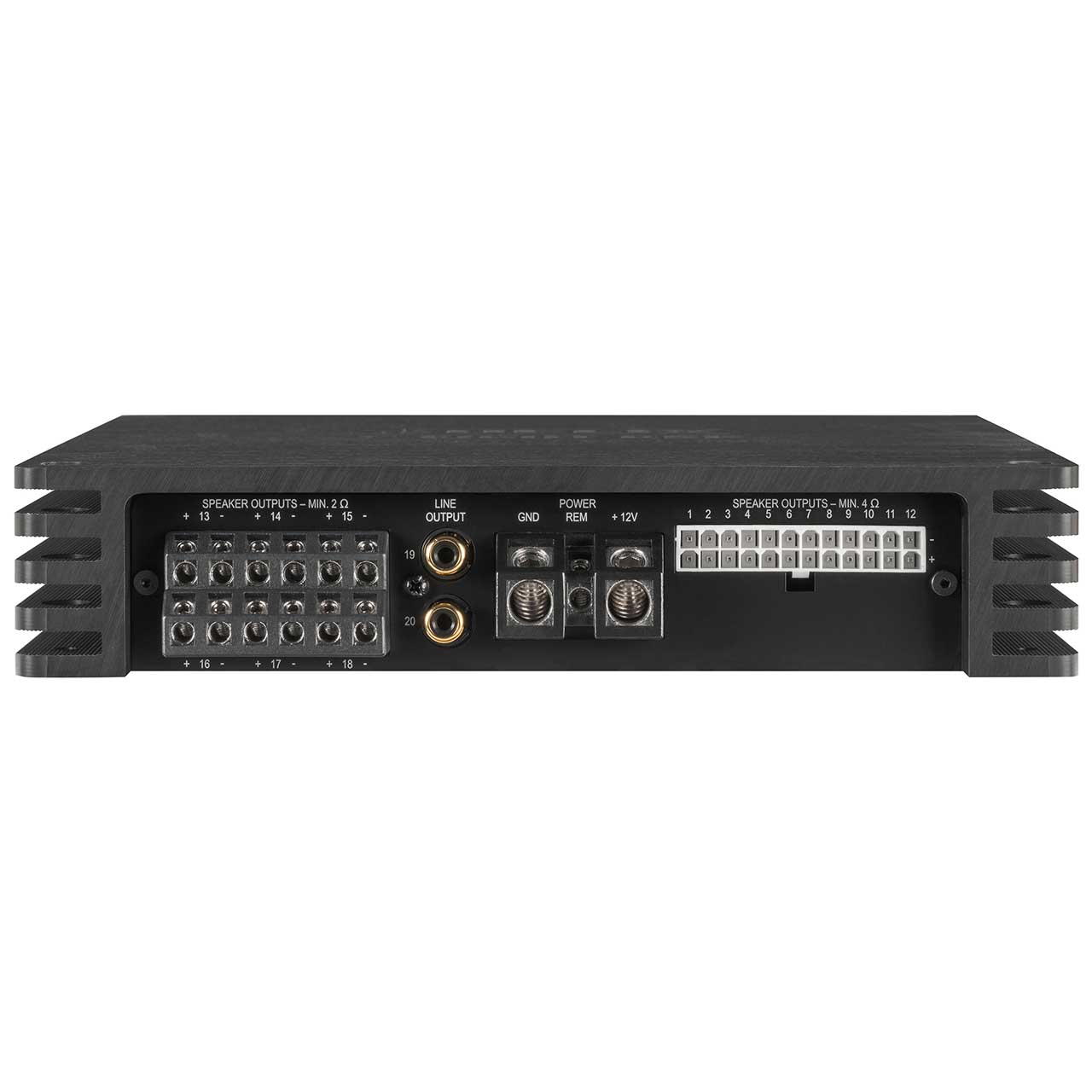

Outputs 18 x Speaker output
2 x RCA / Cinch
2 x Remote Out
Output voltage RCA / Cinch 3 Volts
Frequency response 20 Hz – 22,000 Hz
DSP resolution 64 Bit
DSP power 2 x 295 MHz (2.4 billion MAC operations/second)
Sampling rate 48 kHz
DSP type 2 x Audio signal processor
Signal converters A/D: BurrBrown 24 Bit
D/A: BurrBrown 24 Bit
Signal-to-noise ratio digital input 107 dB (A-weighted)
Signal-to-noise ratio analog input 102 dB (A-weighted)
Distortion (THD) 0.015 %
Damping factor 50
Operating voltage 10.5 – 18 Volts (max. 5 sec.down to 6 Volts)
Power rating DC 12 V ⎓ 108 A max.
Idle current 1.3 A
Max. remote output current 500 mA
Operating temperature range -40° C to +70° C
Fuse 3 x 30 A LP-Mini-fuse (APS)
Additional features HEC slot, ADEP.3 circuit, Smart Control Port, Auto Remote switch, 32 Bit CoProcessor
Dimensions (H x W x D) 44 x 255 x 220 mm /
1.73 x 10.04 x 8.66“
