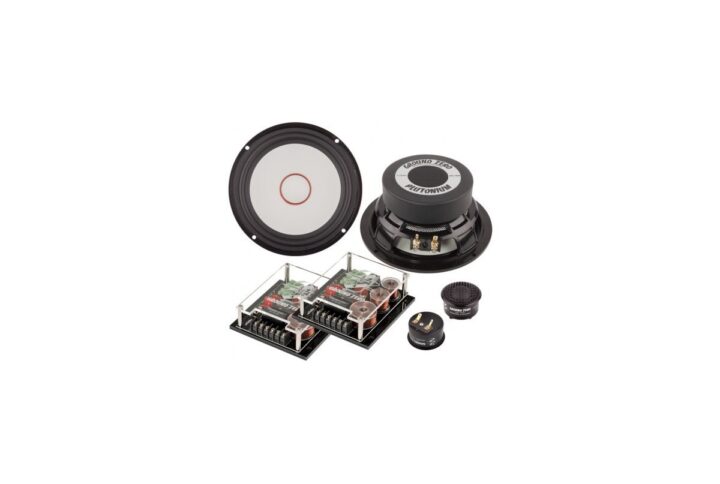

– 6.5” Woofer with alu-ceramic cone and linearised ferrit motor (GZPK 16SQ)<br>
– Resonance free cast basket<br>
– Rubber surrounds and connex spiders<br>
– 1.1” Silkdome tweeter with coupled chamber (GZPT 28SX)<br>
– Speakers optimized with the Ground Zero owned Klippel® system

TECHNICAL DATA

2 Way compo
Diameter of midwoofer or midrange 165 mm / 6.5″
Mounting diameter of midwoofer or midrange 143,5 mm / 5.65″
Mounting depth of midwoofer or midrange 68 mm / 2.68”
Voice coil of midwoofer or midrange 36 mm / 1.42″
Cone of midwoofer or midrange Alu-ceramic
Dustcap / Phaseplug of midwoofer or midrange Alu-ceramic
Basket of midwoofer or midrange Aluminum cast
Magnet of midwoofer or midrange Ferrit
Diameter of tweeter 54 mm / 2.1”
Mounting diameter of tweeter 48 mm / 1.89″
Mounting depth of tweeter 48 mm / 1.89”
Voice coil of tweeter 28 mm / 1.1″
Cone of tweeter Silk
Housing of tweeter Black anodized alu
Magnet of tweeter Dual Neodym
Power handling WRMS 130 (MW) / 100 (TW)
Power handling W peak 250 (MW) / 150 (TW)
Impedance 4 Ohm
SPL 90 dB.
