DD Audio VOW12 Basskit includes 2pcs of 12″ VOW12a-D4 subwoofer and UE-12.2a-C ported enclosure.

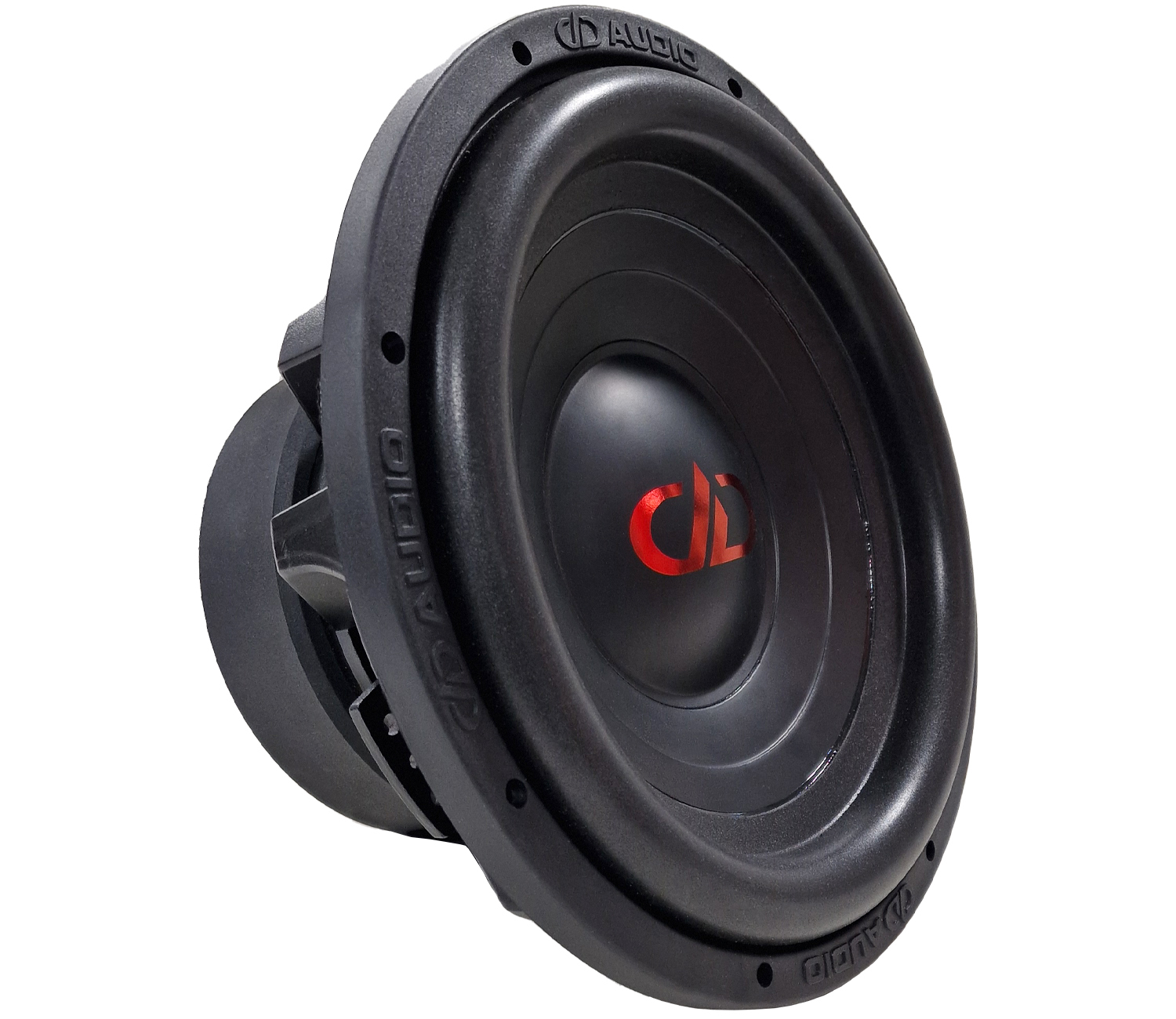

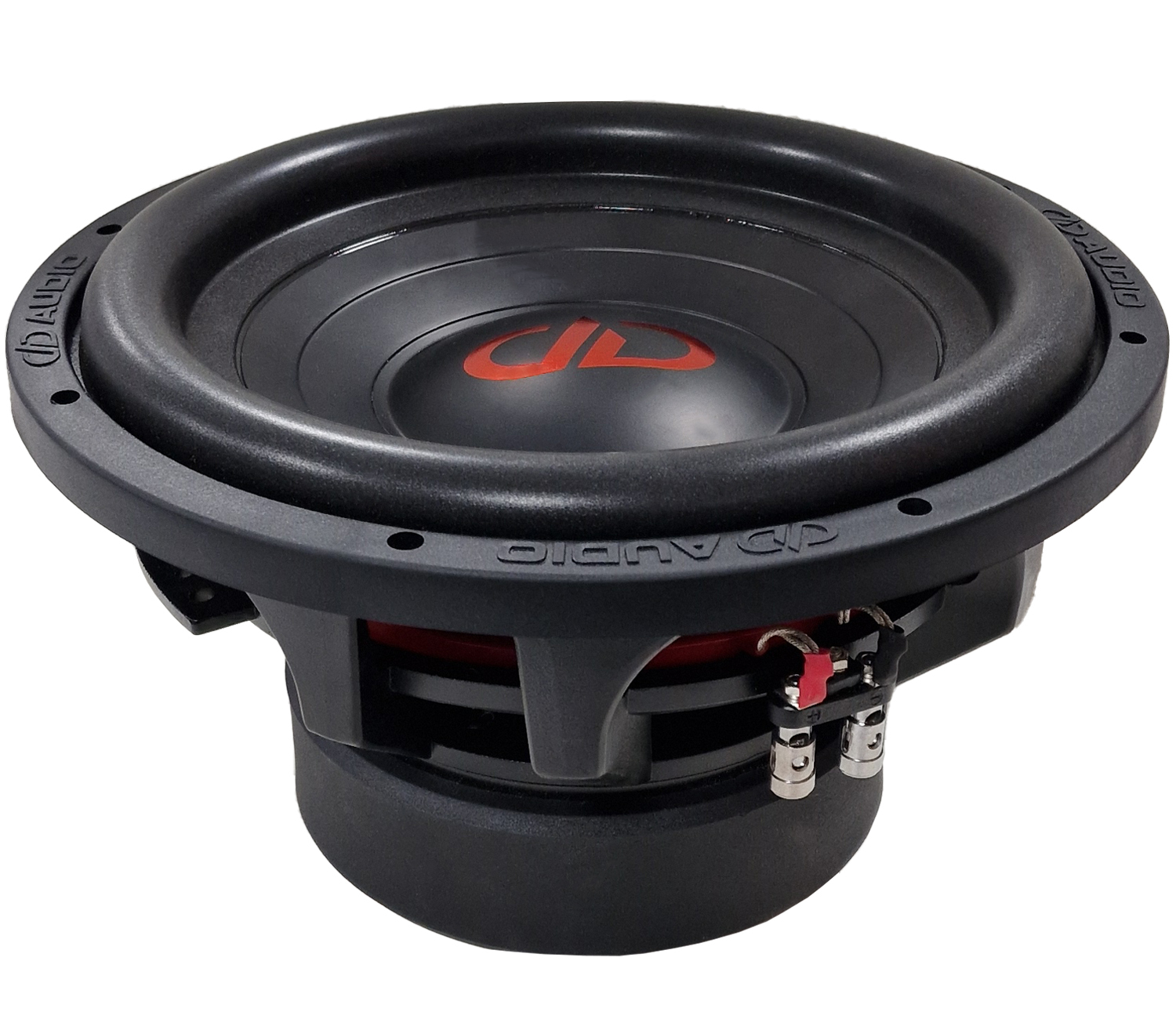

VOW12a-D4:

A new VO-W12a adds a new dimension to your car′s audio and makes it more vibrant and intense.The VO-W woofers are PA style, high output woofers designed for enthusiasts who want sound quality and high output. By combining design elements from pro audio and high-end car audio, DD has developed a new type of ultra efficient driver aimed at delivering high levels of clean output. The VO-W woofers feature performance refinements like large diameter voice coils, high-energy motors and cast frames. The low moving mass design coupled with tight motor tolerance produces ultra fast transients and high output able to keep up with any subwoofer system, or you can use them as stand alone PA drives. The VO-W Woofers will transform an ordinary system into a concert level crowd pleaser.

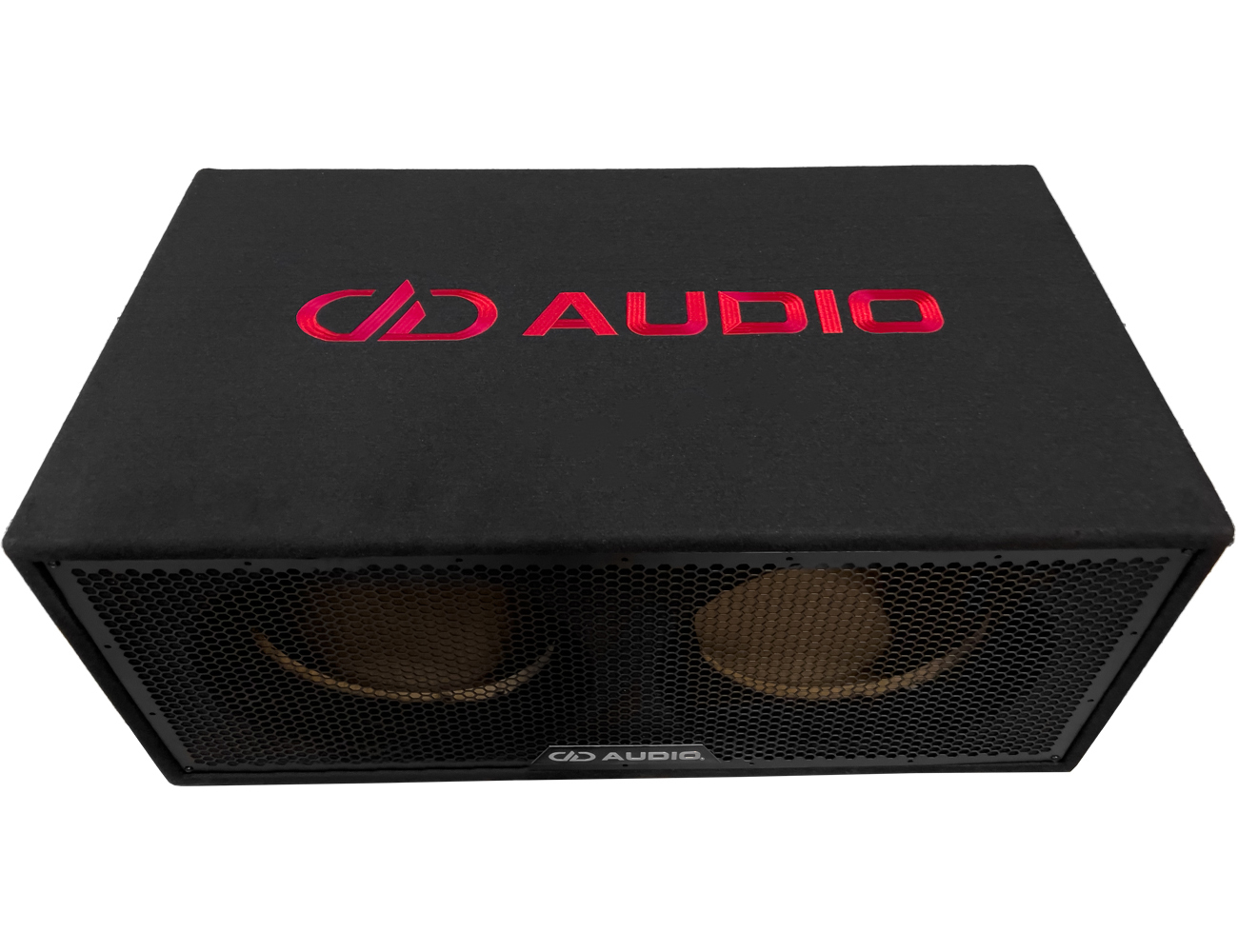

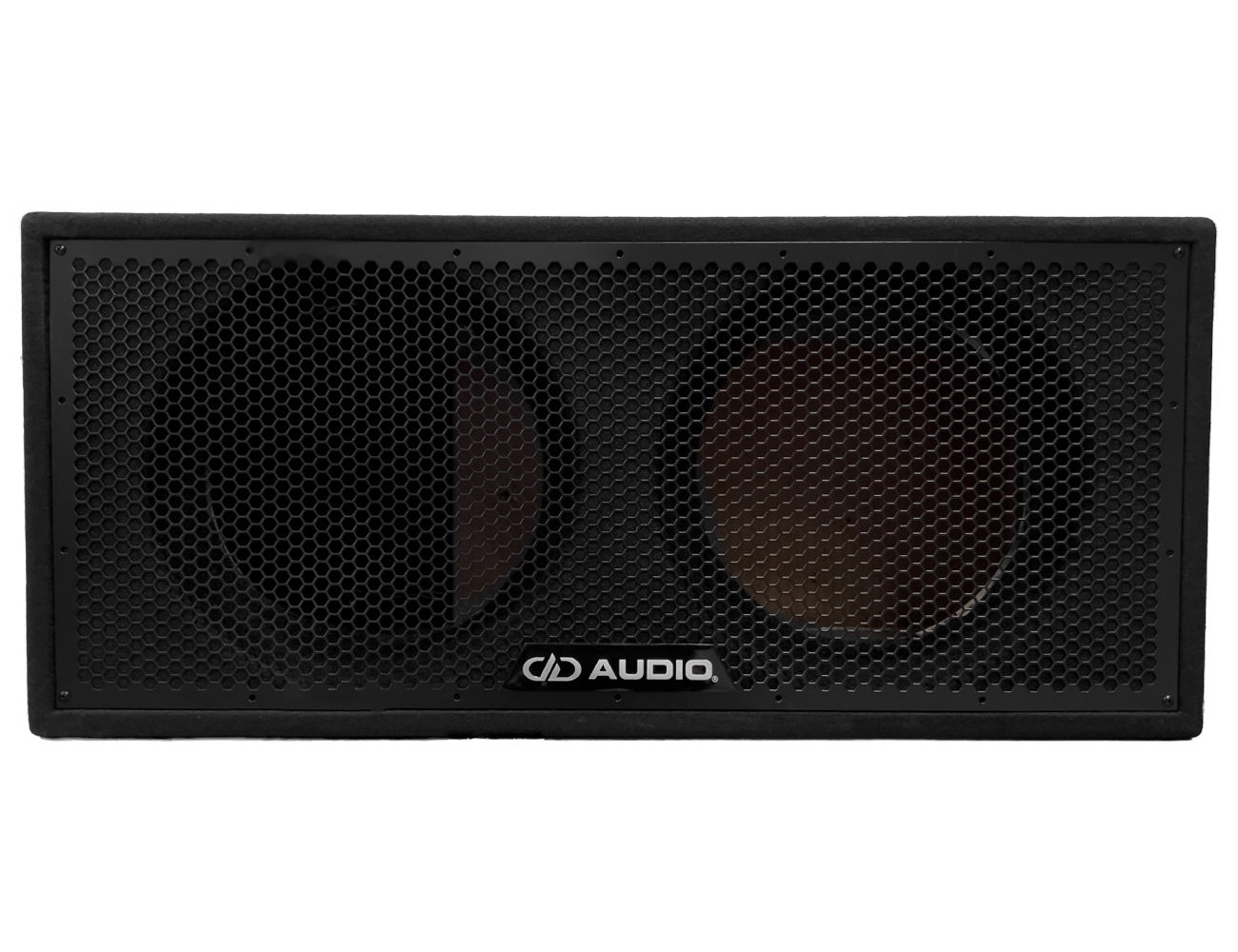

UE-12.2a-C:

The new DD Audio 2 x 12″ Unloaded Enclosure.

Note! The enclosure is designed for subwoofers with a cast-frame, and the mounting hole for the element is therefore 292mm.

Note! With the DD Audio F series and other subwoofers with a long xmax we recommend not installing the protective grill ( cone of the subwoofer could hit the grille )

The enclosure is great for the DD Audio VO-W12a-D4 subwoofer!

The large DD tuned rectangular port is side fired to provide optimal acoustic loading throughout the entire power band.

– ¾” MDF Construction
– Plywood front panel
– High Flow 35Hz Port Tuning
– Full Hex Cut Custom Metal Grills

VOW12a-D4

Speaker Size12″
Watts RMS500-1500
Watts Peak3000
Voice Coil Diameter – in3
Voice Coil ImpedanceDual 4 Ohm
Piston Diameter – in10.25
Fs – Hz39
Qms4.381
Qes0.439
Qts0.399
Vas – liters30.301
dBSPL88
Xmech – mm70
Xmax – mm8
Frame OD – in12.625
Frame OD w/Gasket – in12.75
Mounting Diameter – in11.125 (28,25cm)
Mounting Depth – in6.75 (17.14cm)
Motor Depth – in3 (7.62cm)
Motor Diameter – in7.87 (19,98cm)
Magnet Weight – oz160 (4,5kg)
Woofer Displacement – ft30.12
Sealed Enclosure – cu ft1.5-2.5 (42-70l)
Ported Enclosure – cu ft1.75-2.75 (49-78l)

Note! The enclosure is designed for subwoofers with a cast-frame, and the mounting hole for the element is therefore 292mm.

Note! If you install a subwoofer with a long xmax we recommend not installing the protective grill ( cone of the subwoofer could hit the grille )

Enclosure litres: 87

Size: W x H x D 773 x 410 x 510mm
