SUPRA USB 2.0 A-B BLUE 1M

Kaina už 1 vnt.

Hi-Speed, Type A-B

The sales of USB devices has increased exponentially and we are proud to offer our new cable for: digital audio convertors, music streaming from computers, multimedia players, among other devices providing a USB interface. There is a great need for better cables since the failed bit transmissions will undoubtedly be detected when listening to your music, since the error correction and number of re-tries will leave audible traces.

Many USB interface users are accustomed to quite short cables, but not anymore. SUPRA USB 2.0 allows for a distance of 15metres between your devices! The trick is, as always, shielding, separate for each pair of leads correctly twinned and an exact impedance matching of 90ohm, which is vital for these applications. SUPRA USB 2.0 will reward you with a dynamic, rich and detailed music experience. Undoubtedly!

Features & benefits

Long cables lengths – provides for long distances between devices

Correct data transfer – utmost sound capabilities

Perfect shielding and twinning – minimum signal degradation

Robust type A and type B connectors – reliable, long mobile life

Made in Sweden – Modern research, production and quality

Mechanical Specifications

Standard USB 2.0, Hi-Speed

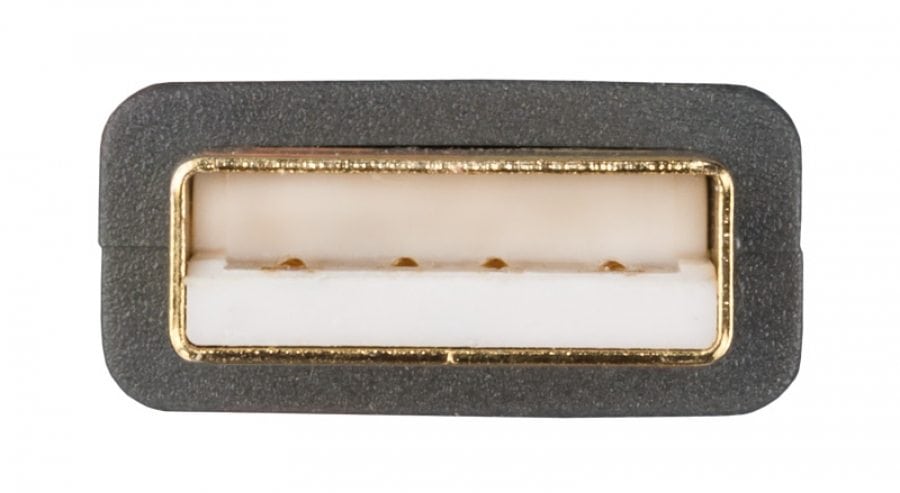

Connectors USB A Male to USB B Male

Signal Direction: <->

Application Examples: Computer, DAC

Data transfer rate: 480 Mbit/s

Solder Tin: Almit SR-34 Super

Cable clamping: Molded

Number of pairs: 2

Cross Area: 0.24 / 23 mm2/AWG

No. Wires/Conductor: 19

Wire diameter : 0.127 (mm)

Wire Material: Tin Plated OFC

Insulation: PE

Screen: Aluminium/Pet Foil

Jacket: PVC

Flameretardancy: No

Ext. Size 7.5 (mm)

Weight 56 (g/m)

Electrical performance

Resistance: 72 (Ohm/km)

C: 52 (pF/m)

Imp. Z: 90 Ohm

Velo. Factor 0.66c
