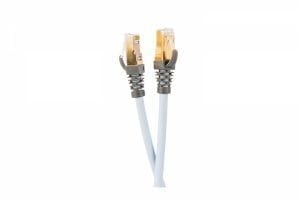

SUPRA CAT 8 STP PATCH FRHF BLUE 4M

Kaina už 1 vnt.

Supra Cat 8 Network Patch Cable – Astonishing speed and accuracy!

Supra Cat 8 is once more one step ahead by providing a future proof cable, e.g. 40GBASE-T over one singel cable! It is used beneficially in TCP/IP and UDP applications where bit-correct, jitter-free data transmissions is critical, e.g. 4K and 8K video streaming, high quality music streaming (e.g. 32 bits @ < 700 kHz for some downloadable music and in-studio applications), gaming and data centers, and in-building installations such as hotels, conference facilities, among others. Further it is available pre-connected as patch cables in a number of standard lengths, refer to available variant meny, pre-connected with Supra RJ45 Connectors, a fully shielded connector supporting the astonishing performance of the cable also under tough service conditions and it is possible to connect on-site. HDBaseT is transmitted over 6A up to 100 m (328 ft) long, with 8P8C modular connectors of the type commonly used for ethernet local area network connections. From Cat 6A to Cat 8 the step is four times the bandwidth. Supra Cat 8 allows for 2,000 MHz(!) an incredible transfer speed providing for quality enhancing massive headroom.  HDBaseT transmits uncompressed ultra-high-definition video (up to 4K), audio, power over HDBaseT (PoHDBaseT – up to 100W), Ethernet, USB, and a series of controls such as RS and IR.   Features and benefits Performance better than “8.2” according to preliminary specification IEC 61156-10 – Astonishing future proof transfer speeds Excellent NEXT (= crosstalk), very low dampening and mutual lead pair interference – Bit correct transfers Low dampening – long cable lengths without signal degradation or voltage drops for PoE Excellent shielding, both pair and total – Almost completely interference immune with very low pick-up Low jitter, perfect timing – Very low bit stream timing errors gives low needs for error corrections, thus high transfer speeds Supra Connectors – Allows for maintained transmission performance also under tough service conditions Bandwidth at 2,000 MHz – Buckle up because this is going to be a ride to remember … Flame retardant, halogen-free – Allowed in public spaces and buildings Made in Sweden!   Usage Installation and patch cable for all networks conforming to ISO/IEC 11801 and EN 50173 (2nd issue), for computer centrals according to ISO/IEC 24764, EN 50173-5 and also TR 11801-99-1. Ideal for all applications from D up to FA and Class II, Multimedia (TV, video, data, voice) >40 GbE enligt IEEE 802.3 bq (draft), cabel sharing, VoIP and PoE/PoE+.

Mechanical Specifications

Standard

Cat 8 Patch Ethernet Cord

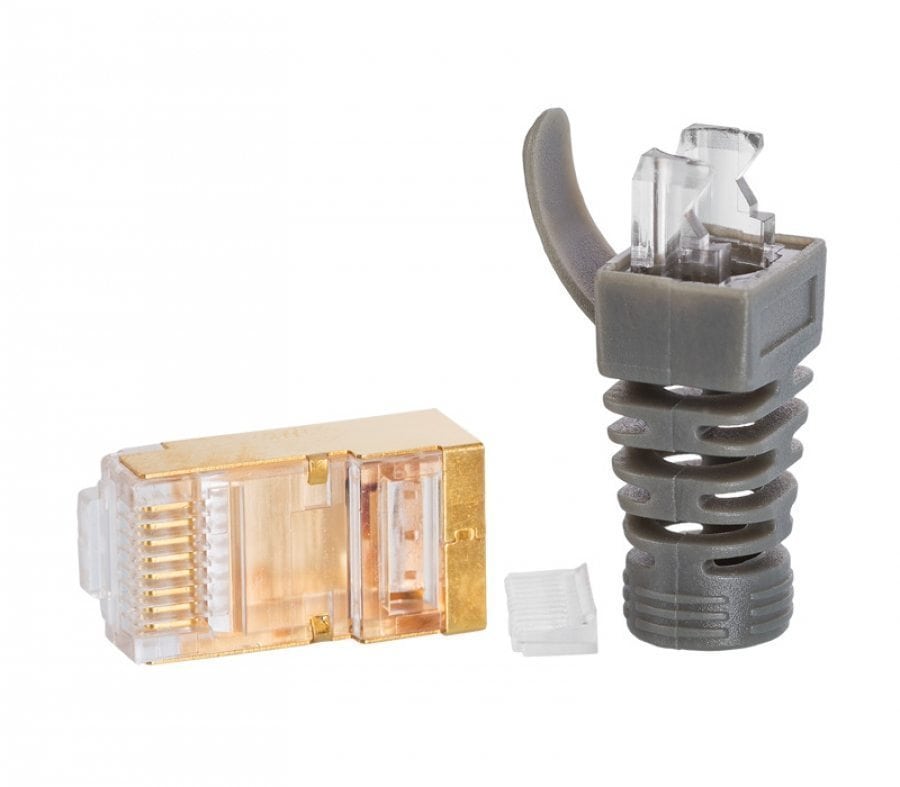

Connectors

Supra RJ45 Male ► Supra RJ45 Male

Signal direction

Bi-directional

Application examples

Ethernet 40GBASE-T

Cable design

Cable

4 pair, Cat 8 S/STP PIMF

Lead area

0.23 / 26

mm2 / AWG

Number of strands

7

pieces

Lead material

Bright drawn oxygen-free 5N copper

Insulation

Air-injected, low capacitance PE

Inner shield

Aluminium foil

Outer shield

Tin plated, oxygen-free 5N copper braid

Jacket

PE (FRHF)

Outer dimension

Ø 6

mm

Flame retardancy

Yes

Electrical performance

Resistance

145

Ohm / km

Capacitance

43

pF / m

Bandwidth

2,000

MHz

Skew @ 100 MHz

5 / 100

ns / m

Impedance

100

Ohm

Velocity factor

0.8x

C (speed of light)
