SUPRA CAT 8 STP PATCH FRHF BLUE 20M

223.00
people are viewing this right now

20 m. interneto kabelis.

Liko vnt.





    Image Safe Checkout
    Garantuotas saugus apmokėjimas
    • NEMOKAMAS PRISTATYMAS LIETUVOJE UŽSAKIUS VIRŠ 99 EUR
    • PREKIŲ PRISTATYMAS LIETUVOJE PER 2 - 3 D.D. Shipping & Return
    SKU: 2334 Kategorijos: , ,

    SUPRA CAT 8 STP PATCH FRHF BLUE 20M

    Kaina už 1 vnt.

    Supra Cat 8 Network Patch Cable – Astonishing speed and accuracy!

    Supra Cat 8 is once more one step ahead by providing a future proof cable, e.g. 40GBASE-T over one singel cable! It is used beneficially in TCP/IP and UDP applications where bit-correct, jitter-free data transmissions is critical, e.g. 4K and 8K video streaming, high quality music streaming (e.g. 32 bits @ < 700 kHz for some downloadable music and in-studio applications), gaming and data centers, and in-building installations such as hotels, conference facilities, among others. Further it is available pre-connected as patch cables in a number of standard lengths, refer to available variant meny, pre-connected with Supra RJ45 Connectors, a fully shielded connector supporting the astonishing performance of the cable also under tough service conditions and it is possible to connect on-site. HDBaseT is transmitted over 6A up to 100 m (328 ft) long, with 8P8C modular connectors of the type commonly used for ethernet local area network connections. From Cat 6A to Cat 8 the step is four times the bandwidth. Supra Cat 8 allows for 2,000 MHz(!) an incredible transfer speed providing for quality enhancing massive headroom.  HDBaseT transmits uncompressed ultra-high-definition video (up to 4K), audio, power over HDBaseT (PoHDBaseT – up to 100W), Ethernet, USB, and a series of controls such as RS and IR.   Features and benefits Performance better than “8.2” according to preliminary specification IEC 61156-10 – Astonishing future proof transfer speeds Excellent NEXT (= crosstalk), very low dampening and mutual lead pair interference – Bit correct transfers Low dampening – long cable lengths without signal degradation or voltage drops for PoE Excellent shielding, both pair and total – Almost completely interference immune with very low pick-up Low jitter, perfect timing – Very low bit stream timing errors gives low needs for error corrections, thus high transfer speeds Supra Connectors – Allows for maintained transmission performance also under tough service conditions Bandwidth at 2,000 MHz – Buckle up because this is going to be a ride to remember … Flame retardant, halogen-free – Allowed in public spaces and buildings Made in Sweden!   Usage Installation and patch cable for all networks conforming to ISO/IEC 11801 and EN 50173 (2nd issue), for computer centrals according to ISO/IEC 24764, EN 50173-5 and also TR 11801-99-1. Ideal for all applications from D up to FA and Class II, Multimedia (TV, video, data, voice) >40 GbE enligt IEEE 802.3 bq (draft), cabel sharing, VoIP and PoE/PoE+.

    Mechanical Specifications

    Standard

    Cat 8 Patch Ethernet Cord

    Connectors

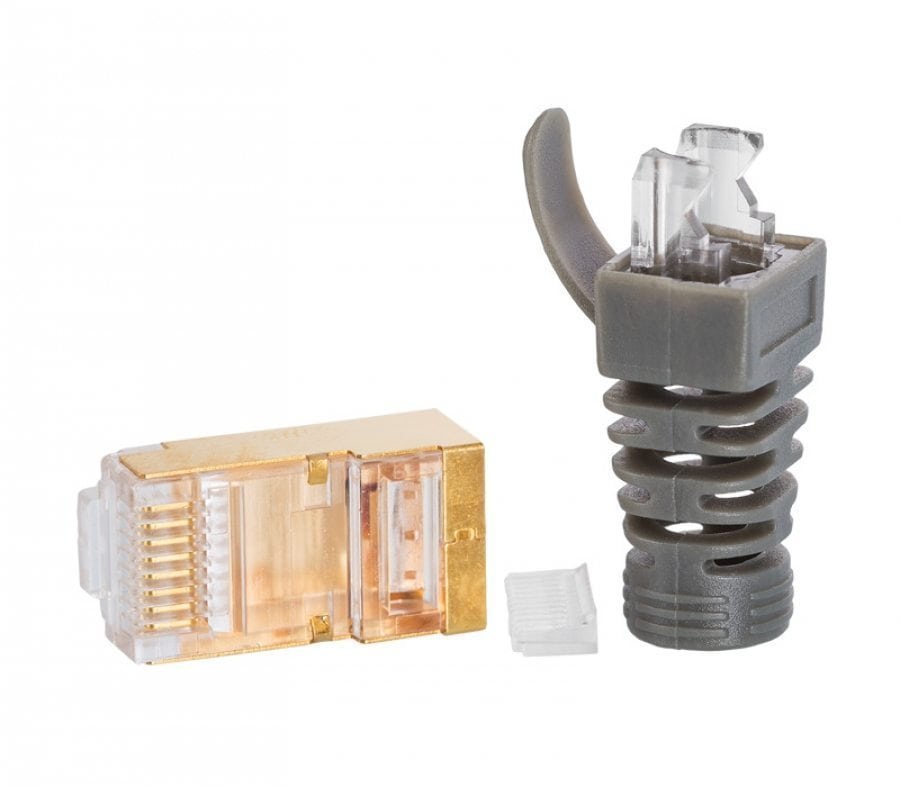

    Supra RJ45 Male ► Supra RJ45 Male

    Signal direction

    Bi-directional

    Application examples

    Ethernet 40GBASE-T

    Cable design

    Cable

    4 pair, Cat 8 S/STP PIMF

    Lead area

    0.23 / 26

    mm2 / AWG

    Number of strands

    7

    pieces

    Lead material

    Bright drawn oxygen-free 5N copper

    Insulation

    Air-injected, low capacitance PE

    Inner shield

    Aluminium foil

    Outer shield

    Tin plated, oxygen-free 5N copper braid

    Jacket

    PE (FRHF)

    Outer dimension

    Ø 6

    mm

    Flame retardancy

    Yes

    Electrical performance

    Resistance

    145

    Ohm / km

    Capacitance

    43

    pF / m

    Bandwidth

    2,000

    MHz

    Skew @ 100 MHz

    5 / 100

    ns / m

    Impedance

    100

    Ohm

    Velocity factor

    0.8x

    C (speed of light)
