Traditional Appearance, with Plentiful Functions Including DAB Tuner You’ll enjoy a wide range of sources and functions, from CD, USB and FM / DAB radio to the latest versions of Wi-Fi, MusicCast, AirPlay® and Bluetooth®. Not only convenience, you get all the high sound quality you demand. Support for MusicCast means you can always enjoy your favourite music. And by adding other MusicCast compatible components, you expand your musical enjoyment even further. You’ll enjoy a wide range of sources and functions, from CD, USB and FM / DAB radio to the latest versions of Wi-Fi, MusicCast, AirPlay® and Bluetooth®. Not only convenience, you get all the high sound quality you demand. MusicCast for audio enjoyment in every room Support for internet radio and various music streaming services Aluminium front panel with hairline finish High performance speaker with VCCS (Vibration Control Cabinet Structure) technology Supports 192 kHz/24-bit High Resolution Music (Flac / WAV / AIFF) Bluetooth® for wireless music streaming Supports Bluetooth output for pairing MCR-N470D and other Bluetooth equipped products * Music service availability varies by region and may change or be discontinued without notice. AirPlay® allows music streaming from Mac, PC, iPod®, iPhone®, iPad® Control app for easy operations (MusicCast CONTROLLER) Front USB terminal for playback of USB memory (mass storage class) Enjoy digital radio from DAB / DAB+ tuner

Center Unit

Bluetooth Version/Profile Ver. 2.1 + EDR / A2DP, AVRCP SBC, AAC

Bluetooth Maximum Communication Range 10 m / 32.8 ft. 10 in. (without interference)

Disc Type CD, CD-R, CD-RW (Audio CD, MP3, WMA)

USB Yes

Internet Radio vTuner

Wi-Fi Yes

AirPlay Yes

DLNA Yes

File Format MP3, WMA, MPEG4, AAC, WAV(*1), FLAC(*1), AIFF(*1), ALAC(*2) — (*1) 192 kHz / 24-bit (*2) 96 kHz / 24-bit Ethernet

Ethernet Yes

Tuner DAB, DAB+, FM

PreSet Memory DAB x 30, FM x 30

Headphone Jack Yes

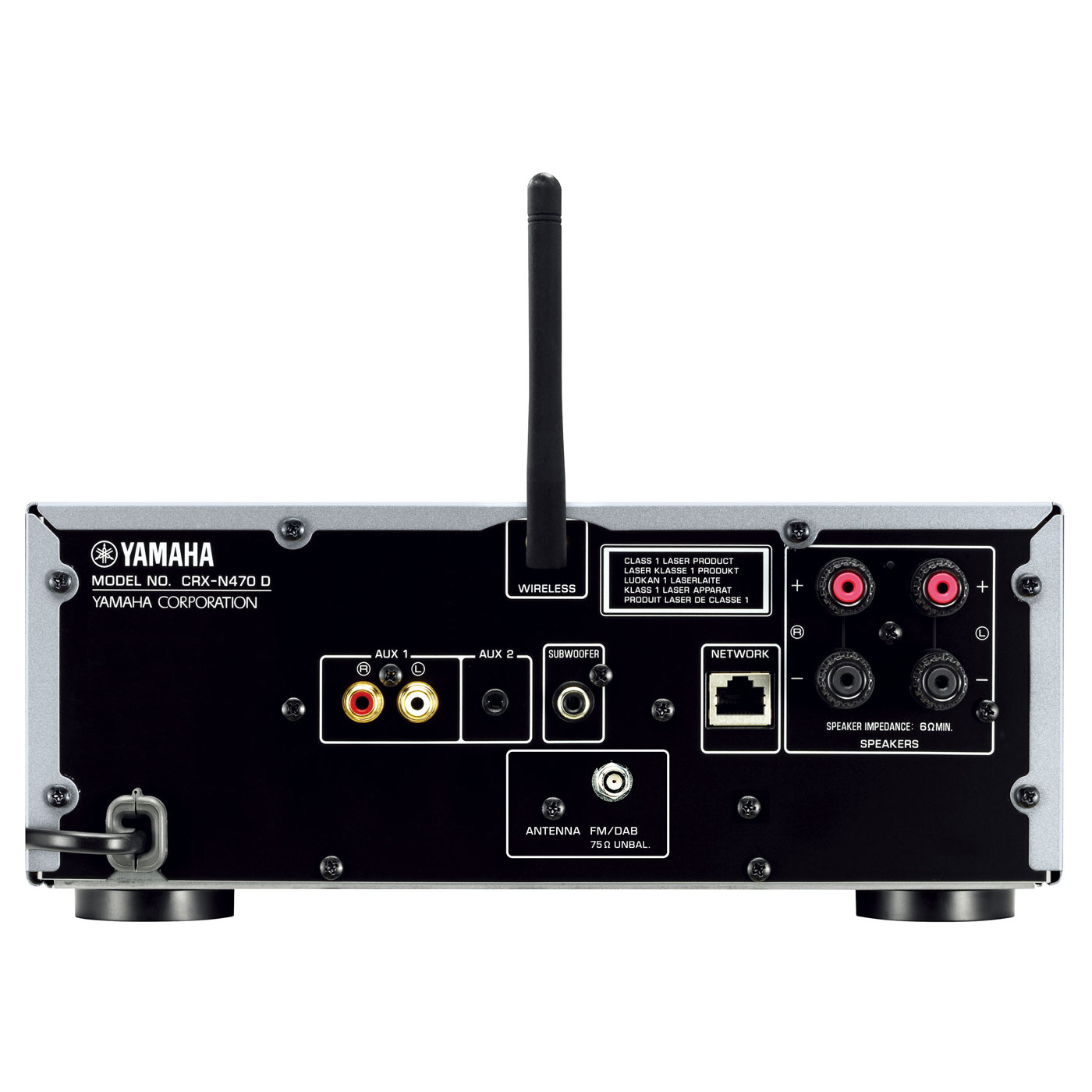

Analog Audio Input RCA × 1, 3.5mm STEREO mini Jack × 1

Total Harmonic Distortion(CD to Sp Out, 20 Hz-20 kHz) 0.05%

Output Power/Channel (6 ohms, 1 kHz, 10% THD) 22 W + 22 W

Standby Power Consumption 0.5 W (Network standby off / Bluetooth standby off), 1.9 W (Network standby on / Bluetooth standby on, Wi-Fi connection)

Dimensions (W x H x D) 270 x 110 x 330 mm 10-5/8” x 4-3/8” x 13”

Weight 3.0 kg 6.6 lbs.

Speaker System

Woofer 11 cm (4-3/8″) cone woofer

Tweeter 2.5 cm (1″) dome tweeter

Input Power (Max/Nominal) 30 W (Nominal)

Frequency Response 55 Hz-38 kHz

Sensitivity 83 dB / 2.83 V / 1 m

Crossover Frequency 5 kHz

Impedance 6 ohms

Dimensions (W x H x D) 154 x 274 x 237 mm 6-1/8” x 10-3/4” x 9-3/8”

Weight 2.6 kg 5.7 lbs..
