Supra XL Annorum

Supra XL Annorum is a speaker cable we are proud to announce as one of our 40THAnniversary offer. The name derives from playing with latin numbers and language where XL means -10+50=40 and Annorum is a bent form of Anno, latin for year, hence 40 Years. We take great pleasure in the fact that this cable is developed together with a reknowned Swedish speaker designer famous for e.g. QLN speakers among others. The intention was a conductor lead for the internal wiring of drivers and cross-over filter. During the progress we acknowledged such good performance that the idea of having the conductors forming a complete speaker cable came to life.

The design is a 4 x 1.6 mm2 square shaped lead configuration, where each lead comprises a plastic core around which 12 strands 5N Oxygen-free Copper are spun in a tight pitch. This minimizes skin-effect and inductance efficiently and by choosing the sonically benign PP as di-electric (insulation) the sonical stability by preventing corrosion and material fatigue, will remain at highest possible level year after year.

The specification and performance fits right in between our Supra Quadrax and Sword edition.

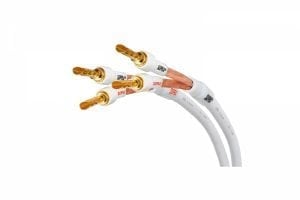

It is available mounted with Supra CombiCon connectors in Star Quad, single-wire (2 ►2) fullrange configuration, single bi-wire (2 ►4), bi-amp (4 ►4) and on bobbin B75. This means that in addition to our standard lengths, we offer custom lengths upon order.

Features and benefits

Star Quad configuration for inductance cancellation and noise immunity

CombiCon contacts features maximum customer convenience. Forks included.

5N Oxygen free Copper strands spun on core to minimize skin-effect

PP dielectric for maximum signal integrity and chemical stability

Developed in co-operation with renowned Swedish speaker designer as internal wiring

Will be incorporated in his newest speaker project’s internal wiring

Made in Sweden!

Mechanical data

Lead area: 1.6 mm2

Number of leads: 4 pieces

Number of strands per lead: 12 pieces

Strand diameter: 0.4 mm

Strand material: Bright drawn 5N Oxygen-free Copper

Di-electric (insulation): PP (strong chemical stability)

Mantel: Age and heat resistant PVC

Outer dimension: Ø 10 mm

Halogen free and flame retardent: No

Contacts

Configuration: 2 ►2 singel-wire, fullrange

Banankontakt/BFA:  Yes

Fork: Yes

Joining method: Airtight high pressure crimp

Electrical data

Resistance: Under revision Ohm/km

Inductance: Under revision  µH/m

Capacitance: Under revision pF/m
