Supra SWIFT 3F XLR AU GREY

Kaina už 1 vnt.

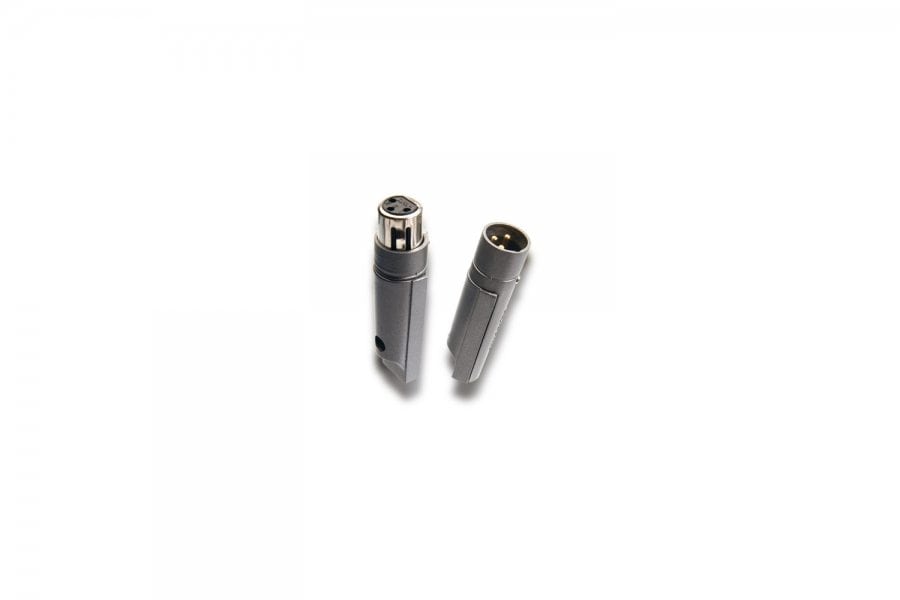

Supra Swift 3F XLR Female

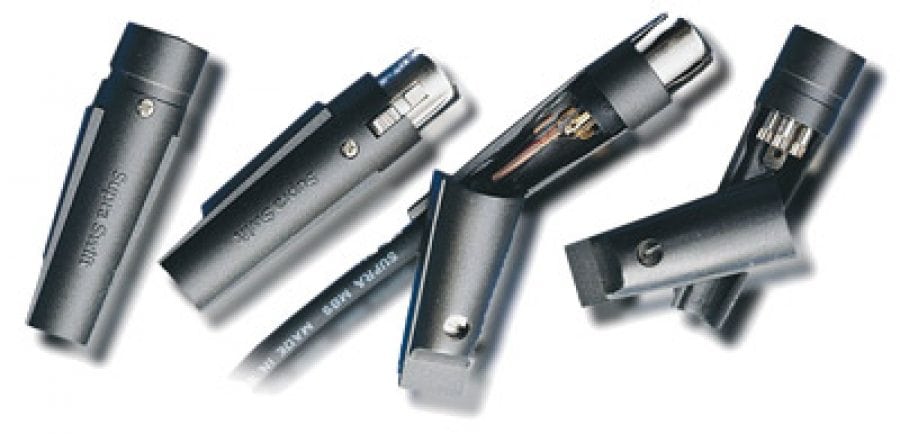

Supra Patented XLR connector consists of 24K gold plated pins for maximum conductivity and fully shielded housing for max RFI immunity. Further it is easy to assemble, there are no screws that may get lost and there are no shells or housing parts that must be pre-mounted prior to fixing the cable.

This is a very sturdy contact, aimed for the professional audio industry such as in-studio and on-stage usage, but will of course perform exceptionally good in high-end home hifi equipment as well. It is the standard connector for our pre-mounted top-of-the-line interconnects, e.g. The Sword.

10 pieces per bulkpack.

Technical data

Contact standard

Female balanced XLR for cable mount

Contact pins

24K gold plated copper

Insulation

Noryl

Cover (patented)

Shielding side mounted after cable fixing

Fixing – apparatus

Button release quick lock

Fixing – cable

Solder

Strain relief

Housing cover clamping force

Maximum cable area in solder slot and solder loop

1.5 and 1.0 respectively

mm2

Maximum cable diameter

7.7

mm

Dimensions (Ø x length)

19 x 75

mm
