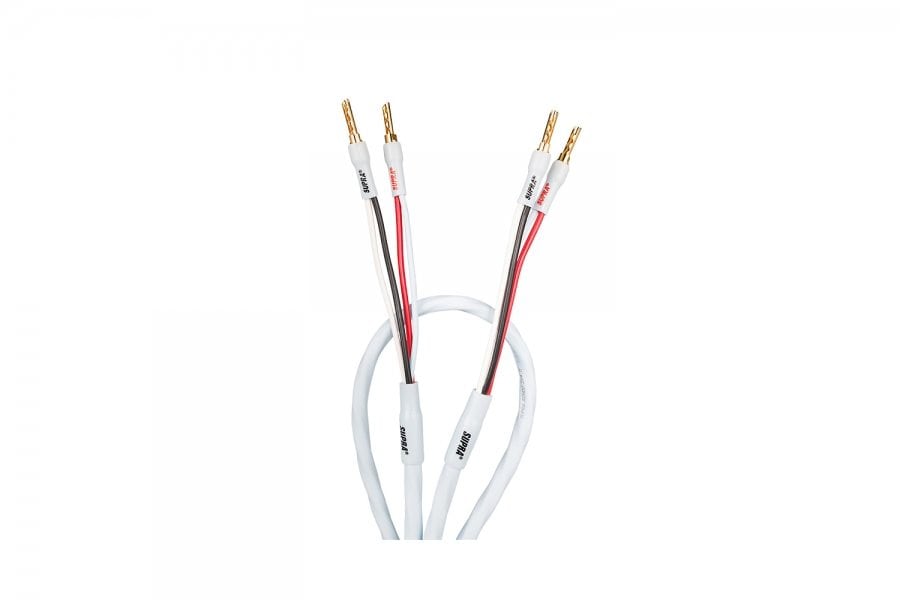

SUPRA RONDO 4X2.5 BLUE COMBICON 2X4M

Kaina už 1 vnt.

Supra Rondo CombiCon 4 x 2.5 mm2 – Full Range Star Quad

High quality speaker cable with four tin plated multi-strand conductors, high pitch twisted for noise cancellation and lower inductance. Here pre-terminated with our finest connectors Supra CombiCon, allowing you to choose between banana/BFA or fork over and over again as your need changes.
Typical applications: High powered, short to intermediate lengths and/or in bi-wired or bi-amplified Hi-Fi system or on-stage.

Supra Rondo – A versatile, electrically sound speaker cable

The Supra Rondo cable allows for a number of possible connections, where the full range Quad Star, is a nearly ideal laid out suppressing the inductance to low levels. Thanks to its four leads it is possible also to connect as bi-wired or bi-amplified. Tests have shown that full range Star Quad, supplemented with a good jumper replacing the often really poor leads konnecting high and low range connectors on the speakers give the best conditions for a better transition of music. Further to the Star Quad lead configuration, the short pitch twinning of the leads, contributes to even lower inductance and lowered tendency to pick-up RFI from the surroundings. Yes, RFI is highly malignant also in the speaker circuit. Any means to lower RFI in your hifi or multimedia equipment will undoubtedly pay off with lower noise floor and a much crisper and sharper picture as well as a sound full of micro dynamics standing out from a pitch black background, with a completely new level of bass attack and dynamic compared to a standard cable. Supra Rondo is available on bobbin, blisterpacks and pre-terminated with Supra CombiCon contacts. Let the show begin!

Tip!
Four conductor Supra Rondo provides for very low inductance by following Star Quad wiring example in the figure, i.e. 0.25-0.35mH respectively.

Mechanical Specifications

Pre-termination standard

Full range, i.e. Star Quad

Conductor crossection area

2.5 / 13

mm2 / AWG

Number of conductors

4

pieces

Number of strands per conductor

320

pieces

Strand diameter

0.10

mm

Conductor material

Tin Plated oxygen free 5N Copper

Insulation and jacket

Heat and age resistant PVC

External diameter

9.7

mm

Weight

170

g/m

Halogen free and flame retardant

No

Electrical performance

Resistance

6.8

Ohm / km

Inductance

0.25 (Star Quad connection)

µH / m
