SUPRA NYLON BRAID 15 KIT BLACK

Kaina už 1 rinkinį.

Accessories for bi-wiring

Bi-wiring is a separation of the music signal current between power amplifer and loudspeaker drive-units into two cables; one for the higher and one for the lower frequency range, e.g. one for bass and one for the midrange/tweeter.

Bi-wiring makes an audible enhancement. The best combination is a pair of Ply 3.4 or 3.4/S.

In order to make it work, the loudspeakers should preferably be equipped with separate inputs to the crossover networks. If not, then you could move out the crossover network from the loudspeaker boxes and put it close to the amplifier. It should then be easy to make a bi-wired connection from the crossover to the loudspeaker components.

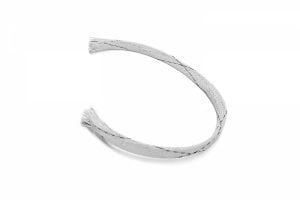

Nylon braid ’hose’ is available for sleeving over the cables to gather them into a more convenient single bi-wire cable pair.

You do it like this:

The braid sleeve widens when it is pushed together longitudinally, which makes it very easy to push the cable pair into it. The Nylon Braid sleeve is supposed to be somewhat shorter than the cable pair, to leave a margin to be stretched afterwards in order to tighten against the cable pair.

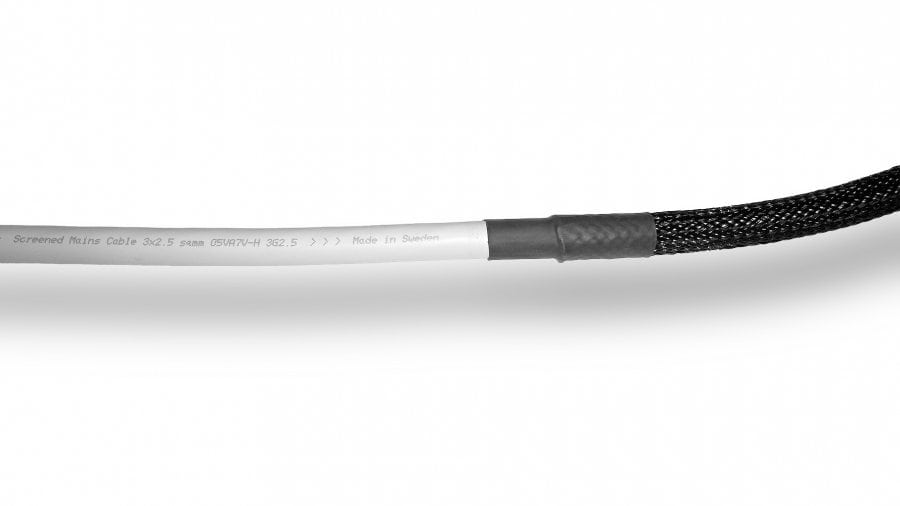

A Heat Shrink sleeve at each end fixes the stretched braid sleeve, and completes the work.

Please be aware: A very tense stretching creates a neat result, but also a less flexible cable.

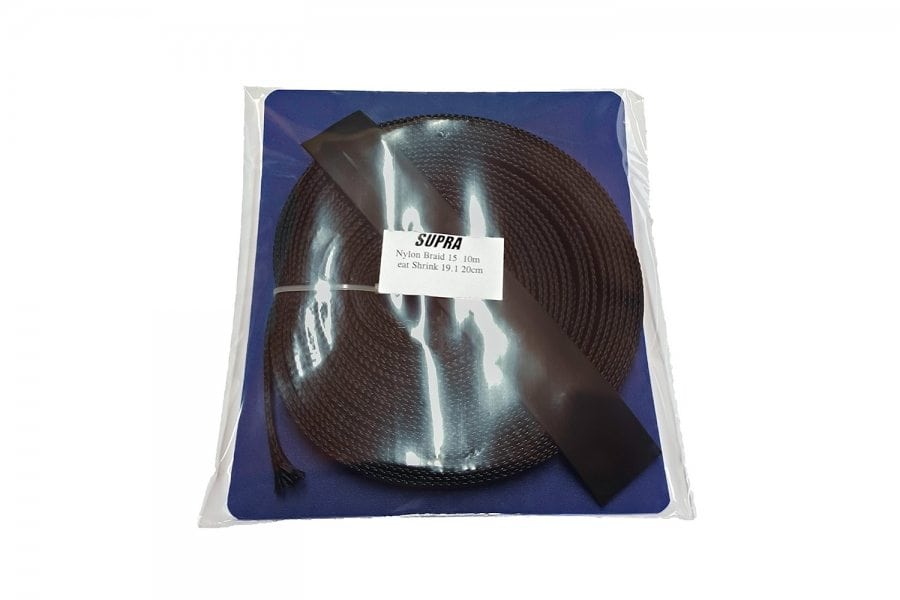

Nylon Braid Kits

The Nylon Braids are available in Kits with suitable Heat Shrink sleeving. See the table below.
