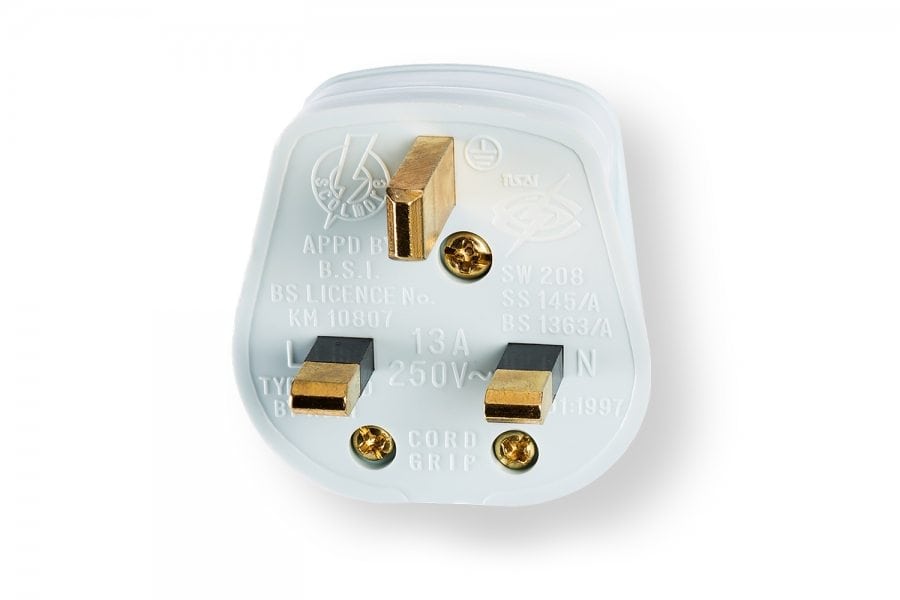

SUPRA MAINS PLUG MC-BS MALE

Kaina už 1 vnt.

Supra LoRad MC series – Male Gold Plated Mains Connectors

Supra MC is a series of mains connectors for 110 up to maximal 250 volt, safety approved Hospital Grade and Audio Grade. The plugs are available in a number of versions for the major electrical standards around the world. They accept large cable diameters for the conveniance of a number of cable brands and are of course proven to be the best connector for our Supra LoRad mains flex range. The maximal current allowed is according to the standard 13 ampere. The plug provides 24K gold plated pins and cabel screw clamps for solid joints with minimal contact degradation. The mains plug accepts cable diameters up to 11 mm and cable lead area up to 2.5 mm2.

Conforms to the Brittish Standard valid in UK (United Kingdom) and on Ireland.

Technical data

Standard

British Standard in UK and Ireland

Maximal current

13

Ampere

Nominal (maximal) voltage

230 (250)

Volt

Mains frequency

50

Hz

Maximal cable size

Ø 11

mm

Maximal cable area

2.5

mm2

Pins and cable clamp

24K gold plated pins and screw clamps

Cable strain relief

Screw clamp integrated in housing
