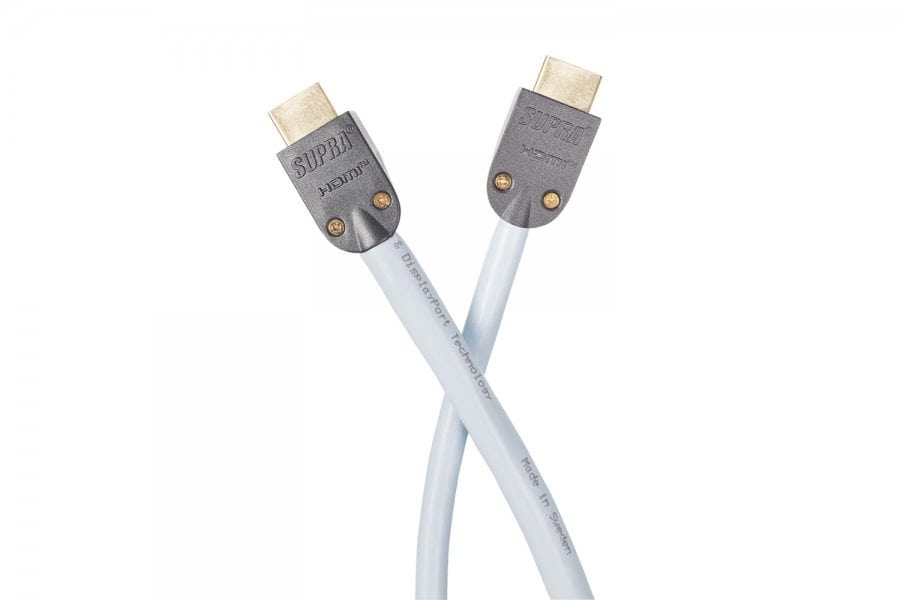

SUPRA HDMI-HDMI HD A/V 1.5M ilgio kabelis
Kaina už 1 vnt.
HDMI HD A/V HD5/S slim cable (7mm)
HDMI High Speed with Ethernet Cable
HDMI cables 0.5m to 5m is assembled with HD5/S slim cable.
The cable to the right of the picture
HDMI HD A/V HD5 cable (9.5mm)
HDMI High Speed with Ethernet Cable
HDMI cables 6m to 30m is assembled with HD5 cable.
The cable to the left of the picture
From the start and on, we have delivered trustworthy HDMI cables, hence our reputation on the installation market, where we supply large quantities to hotels, conference facilities and similar, and where no one overlooks sub-standard performance. Nine years of continuous product development has resulted in the Supra HD5 HDMI Met-S/B, which (according to us) is the best passive HDMI cable there is, offering HDMI High Speed with Ethernet & 4K resolution. We guarantee that our HD5 cable handles HDMI 1080P signals up to 32 meters – passively! We think we are alone to offer this.
High Speed HDMI with Ethernet transmission
SUPRA launched its first HDMI cable in 2004. Already from the very beginning, the HDMI standard and its contact gave most manufacturers a hard time to achieve perfect performance. Yet many cables were launched claiming fluent transmission, a fact many customers soon found reason to doubt. When we at Supra started our development, we knew how challanging this would become and left nothing to chance.
We know also the burden of proof, why we test and approve in compliance with the latest test provisions by HDMI´s Accredited Testing Center in the USA – a quality assurance treat to our customers. The bandwidth of the HD5 is 1100MHz, above three (< 3) times the specification of HDMI High Speed (340MHz). There are some interesting esoteric cables out there claiming to do the job but only a few are actually up for it. Supra High Speed HDMI is one.

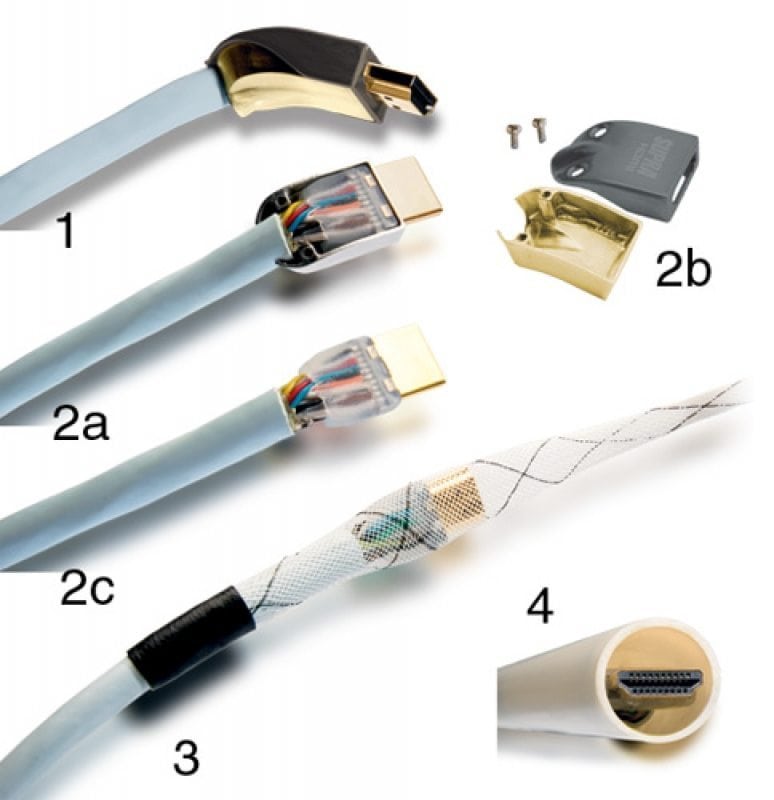

With the addition of our smart contact Supra Met-B/S, the cable is now possible to route in 20 millimeters conduits including the contact. No more on-site cut-offs and re-soldering, jeopardizing the typical Supra top notch performance.
SUPRA HDMI Features & benefits
Transmits today’s challenging formats flawlessly
Future proof – Meets today’s HDMI standard and known requirements of tomorrow
Sturdy design – Withstand the normal installation abuse
up to 23AWG leads – For minimum losses
Triple screen technology – Provides for long distance clearance hence freedom of installation with maintained signal integrity
Made in Sweden, three step quality plan – Unsurpassed quality and reliability
High resolution picture and sound
We often meet scepticism when we talk about HDMI cables. ”Does it really matter?” ”I mean, it’s only a data stream? Yes, it is a stream of digital bits. Yes, it does matter. Unfortunately there is an intermediate state before the signal is so corrupt it cannot be read and blanks out. Many claim that if the screen shows, the signal is good enough. There is circuitry in the receiver which tries to repair broken data stream by buffering and error correction, but this is based on best possible estimates and is not necessarily what was sent. You might experience sync problems (delays), distorted colorations, insufficient blackness, noise and unexplainable audible pops during which the hardware is working overtime trying to repair the fragile bitstream. Do your precious hardware the best possible favour you can by connecting it using SUPRA HDMI cables and both you and your equipment will fully enjoy the show.
SUPRA High Speed HDMI with Ethernet Cable (v2.0) in short:
Signal Bandwidth: 1100 MHz
TMDS Bandwidth: 18 Gbit/s
Color Depth: 48 bit (16 bit per color channel)
Maximal resolution and corresponding cable length: 4096 x 2160 @ 60 fps; 1-10 meter, 4096 x 2160 @ 24/30 fps; <10-20m and 1080p @ 24/30 fps up to 30 meter passively!
Deep Color, x.v.Color
Auto Lip Sync
Dolby TrueHD, DT-HD Master Audio
3D over HDMI
Audio Return Channel
Ethernet Channel
Mechanical Specifications
Standard: HDMI 2.0, High speed with Ethernet
Connection configuration: Single-Link
Connectors: HDMI-HDMI Met-S
Signal direction: Bi-directional
Included HDMI connectors: 2 x Supra Met-S (straight)
Additional connectors: Supra Met-B (bent housing sold separately)
Applications e.g.: Bluray/Projector/TV/DVD/TV-decoders
Max resolution per cable length interval in passive appliances: 4096 x 2160 @ 60 fps; up to 10 meter, 4096 x 2160 @ 24/30 fps; up to 20 meter and 1080p @ 24/30 fps up to 30 meter
Solder tin: Almit SR-34 Super
Cable clamping: Molded connector body fitted in aluminium housing
Cable: Supra HD5/S or HD5
Lead area, 0.5 – 5m: 5xTMDS 0.128 / 26 (HD5/S) mm2 / AWG
Lead area, 5 – 30m: 5xTMDS 0.26 / 23 (HD5) mm2 / AWG
Lead material: Solid strand oxygen-free copper
Di-electric (insulation): Air-injected PE foam for minimal capacitance
Inner shield / coverage: Aluminized PET foil / 100 %
Communication leads (HD5/S): 5 x 0.081 / 28 (di-electric: PE) mm2 / AWG
Communication leads (HD5): 5 x 0.129 / 26 (di-electric:PE) mm2 / AWG
Outer shield / coverage: Aluminized PET foil and braid / 100 %
Jacket: Heat an age resistant PVC
Flame retardancy: No, see FRHF Version
Cable outer dimension (HD5/S): 7 mm
Cable outer dimension (HD5): 9.5 mm
Electrical performance – Supra HD5/S
Resistance: Rev. Ohm / km
Capacitance: Rev. pF / m
Characteristic impedance: 100 Ohm
Velocity factor: 0.8 x C (speed of light)
Electrical performance – Supra HD5
Resistance: 82 Ohm / km
Capacitance: 42 pF / m
Characteristic impedance : 100 Ohm
Velocity factor: 0.8 x C (speed of light)
