SUPRA HDMI-HDMI/H MET-S/B FRHF 3M

Kaina už 1 vnt.

Supra HDMI-HDMI/H – Flame retardant and halogen-free with Ethernet 2.0 cable

From the start and on, we have delivered trustworthy HDMI cables, hence our reputation on the installation market, where we supply large quantities to hotels, conference facilities and similar, and where no one overlooks sub-standard performance. Nine years of continuous product development has resulted in the Supra HD5 HDMI Met-S/B, which (according to us) is the best passive HDMI cable there is, offering HDMI High Speed with Ethernet & 4K resolution. We guarantee that our HD5 cable handles HDMI 1080P signals up to 32 meters – passively! We think we are alone to offer this.

High Speed HDMI with Ethernet transmission

SUPRA launched its first HDMI cable in 2004. Already from the very beginning, the HDMI standard and its contact gave most manufacturers a hard time to achieve perfect performance. Yet many cables were launched claiming fluent transmission, a fact many customers soon found reason to doubt. When we at Supra started our development, we knew how challanging this would become and left nothing to chance.

We know also the burden of proof, why we test and approve in compliance with the latest test provisions by HDMI´s Accredited Testing Center in the USA – a quality assurance treat to our customers. The bandwidth of the HD5 is 1100MHz, above three (< 3) times the specification of HDMI High Speed (340MHz). There are some interesting esoteric cables out there claiming to do the job but only a few are actually up for it. Supra High Speed HDMI is one. With the addition of our smart contact Supra Met-B/S, the cable is now possible to route in 20 millimeters conduits including the contact. No more on-site cut-offs and re-soldering, jeopardizing the typical Supra top notch performance.   SUPRA HDMI MET-S/B Connectors (Straight/Bent) Angled HDMI for less strain by heavy cables and easier fitting for wall tv/dvd/reciever etc. Also available in straight shape. The housing is detachable from the soldered cable. The connector body is pre-moulded to protect the termination and make installation possible in conduits. (>20mm pipe and >25mm tube). The housing is in metal for optimal shielding. Should you prefer to put a straight housing on after installation, it is available, too. Both bent and straight plugs are included in the package, use the one that fits your setup best.

The Trick

How you get a bent and too big connector through a small conduit pipe (minimal Ø 20mm for conduit pipe and 25mm for conduit tube).

1. Can you pull this connector through a conduit pipe

2a. All parts are easily detachable.
2b. These are the parts of the dis-assembled connector.
2c. The soldered part is overmoulded for protection.

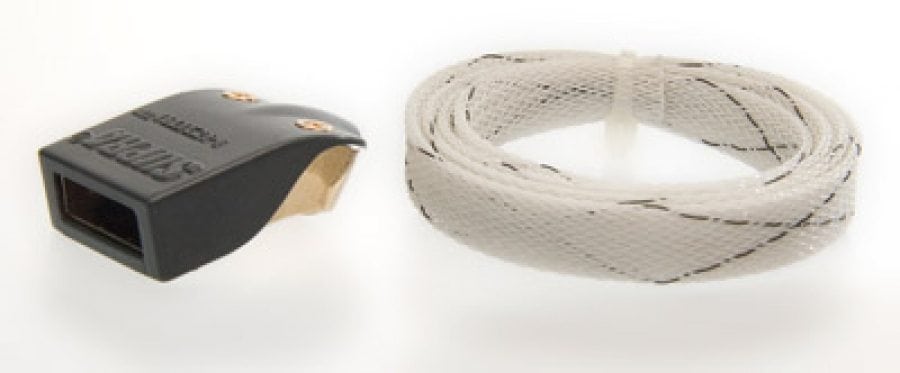

3. Nylon braid is used as an aid to pull the cable through the conduit. Fasten the braid to the pulling tool with a knot.

4. Picture showing how much space there is left in a 20mm pipe.

5. As you can see, despite the sharply bent pipe, the cable got through, effortlessly.

6. Assembled cable and connector ready for use.

SUPRA HDMI Features & benefits

Transmits today’s challenging formats flawlessly

Future proof – Meets today’s HDMI standard and known 4K Ultra requirements of tomorrow

FRHF – Flame retardant and halogen-free

Sturdy design – Withstand the normal installation abuse and provides long service life

up to 23AWG leads – For minimum losses allowing longer cable routing

Triple screen technology – Provides for long distance clearance hence freedom of installation with maintained signal integrity

Made in Sweden – Unsurpassed quality and reliability thanks to three step quality plan

High resolution picture and sound

We often meet scepticism when we talk about HDMI cables. ”Does it really matter?” ”I mean, it’s only a data stream?” Yes, it is a stream of digital bits. And, yes, it does matter. When a cable is so poor that the picture blanks out, does not sync, you immediately notice something is wrong.

Unfortunately there is an intermediate state before the signal is so corrupt it cannot be read and blanks out. Many claim that if the screen shows, the signal is good enough. There is circuitry in the receiver which tries to repair broken data stream by buffering and error correction, but this is based on best possible estimates and is not necessarily what was sent. Further, if there is time, the data protocoll allows for calling for re-submission of missing bitstreams. If there is time … You might experience sync problems (delays), distorted colorations, insufficient blackness, noise and unexplainable audible pops during which the hardware is working overtime trying to repair the fragile bitstream. Do your precious hardware the best possible favour you can by connecting it using SUPRA HDMI cables and both you and your equipment will fully enjoy the show.

SUPRA High Speed HDMI with Ethernet Cable (v2.0)

Signal Bandwidth: 1100 MHz

TMDS Bandwidth: 18 Gbit/s

Color Depth: 48 bit/px

4K Ultra support enables video resolutions: 4096 x 2160 @ 60 fps (Hz), 1-10m; 4096 x 2160 @ 24/30 fps (Hz), 10-20m and 1080p @ 24 fps (Hz) up to 32 meter passively!

Deep Color, x.v.Color

Auto Lip Sync

Dolby TrueHD, DT-HD Master Audio

3D over HDMI

Audio Return Channel

Ethernet Channel

Flame retardant and halogen free

Perfect for installation in public premises

Excellent flame-retardancy; E30

Halogen-free

Low smoke generation

Low toxic gas emission

Mechanical Specifications

Standard: HDMI 2.0, High speed with Ethernet 2.0

Connection configuration: Supra HD5/H single-link

Connectors: HDMI Met/S – HDMI Met/S

Signal direction: Bi-directional

Included HDMI connectors: 2 x Supra straight HDMI

Optinal connectors: Supra Met/B (bent housing)

Applications e.g.: Bluray/Projector/TV/DVD/TV-decoders

Maximum resolution:

4096 x 2160 @ 60 fps (Hz), 1 – 10 meter

4096 x 2160 @ 24/30 fps (Hz), 10-20 meter

1080p @ 24 fps (Hz) up to 32 meter

Solder tin: Almit SR-34 Super

Cable clamping: Integrated cable clamping in connector housing

Lead area: 5 x TMDS 0.26 / 23 mm2 / AWG

Lead material: Solid strand 5N oxygen-free copper

Di-electric (insulation): Low density, air-injected PE foam

Inner shield / coverage: Aluminized PET foil / 100 %

Communication leads: 5 x 0.129 / 26 (di-electric:PE) mm2 / AWG

Outer shield / coverage: Aluminized PET foil and 5N OFC braid / 100 %

Jacket: Flame retardant and halogen-free PE

Flame retardancy: Yes

Outer dimension: Ø 9.5 mm

Electrical performance – Supra HD5/H

Resistance: 82 Ohm / km

Capacitance: 42 pF / m

Characteristic impedance: 100 Ohm

Velocity factor: 0.8 x C (speed of light)
