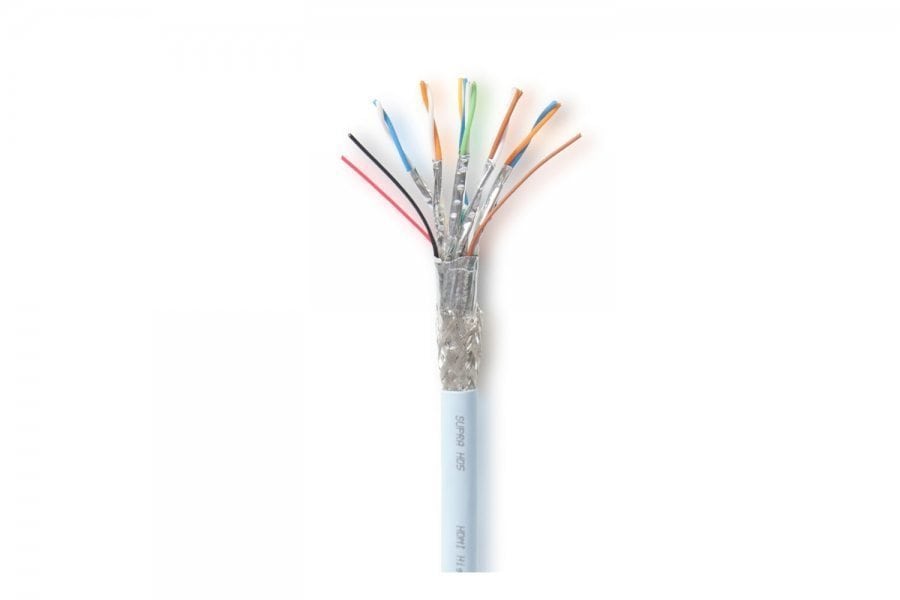

SUPRA HD5 HDMI/DVI/DP BLUE

Kaina už 1 metrą.

Supra HD5 – HD multimedia multipurpose A/V cable with Ethernet connection

From the start and on, we have delivered trustworthy multimedia (HDMI, DVI) cables, hence our reputation on the installation market, where we supply large quantities to hotels, conference facilities and similar, and where no installer overlooks sub-standard performance. Nine years of continuous product development has resulted in e.g. the Supra HD5 HDMI Met-S/B, which (according to us) is the best passive HDMI cable there is, offering HDMI High Speed with Ethernet & 4K resolution. We guarantee that our HD5 cable handles HDMI 1080P signals up to 32 meters – passively! We think we are alone to offer this.

High Speed multimedia with Ethernet transmission

SUPRA launched its first HDMI cable in 2004. Already from the very beginning, the HDMI standard and its contact gave most manufacturers a hard time to achieve perfect performance. Yet many cables were launched claiming fluent transmission, a fact many customers soon found reason to doubt. When we at Supra started our development, we knew how challanging this would become and left nothing to chance.

We know also the burden of proof, why we test and approve in compliance with the latest test provisions by HDMI´s Accredited Testing Center in the USA – a quality assurance treat to our customers. The bandwidth of the HD5 is 1100MHz, above three (< 3) times the specification of HDMI High Speed (340MHz). There are some interesting esoteric cables out there claiming to do the job but only a few are actually up for it. Supra High Speed HDMI is one.

With the addition of our smart contact Supra Met-B/S, the cable is now possible to route in 20 millimeters conduits including the contact. No more on-site cut-offs and re-soldering, jeopardizing the typical Supra top notch performance.

The Supra Met HDMI Trick

How you get a bent and too big connector through a small conduit pipe (minimal Ø 20mm for conduit pipe and 25mm for conduit tube).

1. Can you pull this connector through a conduit pipe

2a. All parts are easily detachable.
2b. These are the parts of the dis-assembled connector.
2c. The soldered part is overmoulded for protection.

3. Nylon braid is used as an aid to pull the cable through the conduit. Fasten the braid to the pulling tool with a knot.

4. Picture showing how much space there is left in a 20mm pipe.

5. As you can see, despite the sharply bent pipe, the cable got through, effortlessly.

6. Assembled cable and connector ready for use.

SUPRA HD5 – Features & benefits

Transmits today’s challenging formats flawlessly

Future proof – Meets today’s standards and known requirements of tomorrow

Sturdy design – Withstand the normal installation abuse and provide long service life

Up to 23 AWG leads – For minimal losses and longer cable routing

Triple Screen Technology – Provides for long cable routing hence freedom of installation with maintained signal integrity

Made in Sweden, three step quality plan – Unsurpassed quality and reliability

High resolution picture and sound

We often meet scepticism when we talk about HDMI cables. ”Does it really matter?” ”I mean, it’s only a data stream?” Yes, it is a stream of digital bits. And, yes, it does matter. When a cable is so poor that the picture blanks out, does not sync, you immediately notice something is wrong. Unfortunately there is an intermediate state before the signal is so corrupt it cannot be read and blanks out. Many claim that if the screen shows, the signal is good enough. There is circuitry in the receiver which tries to repair broken data stream by buffering and error correction, but this is based on best possible estimates and is not necessarily what was sent. Further, if there is time, the data protocoll allows for calling for re-submission of missing bitstreams. If there is time … You might experience sync problems (delays), distorted colorations, insufficient blackness, noise and unexplainable audible pops during which the hardware is working overtime trying to repair the fragile bitstream. Do your precious hardware the best possible favour you can by connecting it using SUPRA HDMI cables and both you and your equipment will fully enjoy the show.

SUPRA HD5 Multimedia cable with Ethernet connection

Signal Bandwidth: 1100 MHz

TMDS Bandwidth: 18 Gbit/s

Color Depth: 48 bit/px

4K Ultra support enables video resolutions: 4096 x 2160 @ 60 fps (Hz), 1-10 meters; 4096 x 2160 @ 24/30 fps (Hz), 10-20m and 1080p @ 24 fps (Hz), up to 32 meter passively!

Deep Color, x.v.Color

Auto Lip Sync

Dolby TrueHD, DT-HD Master Audio

3D over HDMI

Audio Return Channel

Ethernet Channel

Mechanical Specifications

Standards

HDMI 2,0 and DVI-D 18+1 single-link

Connection configuration

Single-Link

Signal direction

Bi-directional

Applications e.g.

Bluray/Projector/TV/DVD/TV-decoders/Computers …

Max resolution

4K Ultra up to 15m, 1080P@24 15m to 30m

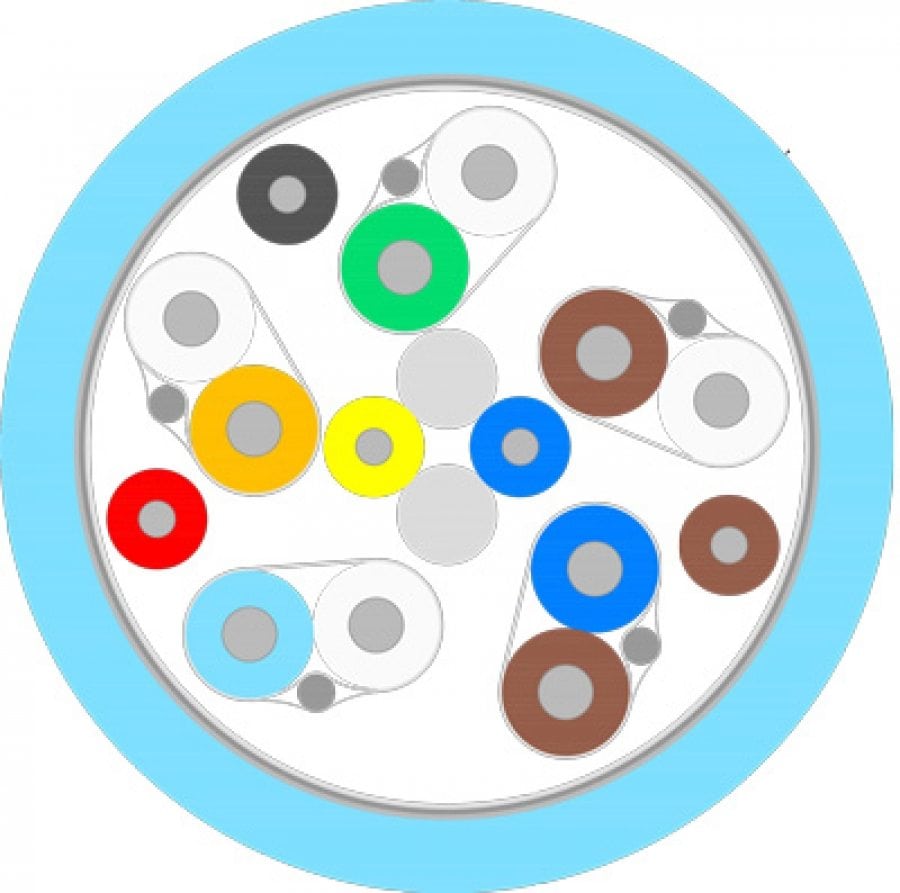

Lead area

5 x TMDS 0.26 / 23

mm2 / AWG

Lead material

Solid strand 5N oxygen-free copper

Di-electric (insulation)

Low density, air-injected PE foam

Inner shield / coverage

Aluminized PET foil / 100

%

Communication leads

5 x 0.129 / 26

mm2 / AWG

Di-electric (comm. leads)

PE

Outer shield / coverage

Aluminized PET foil and 5N OFC braid / 100

%

Jacket

Heat and age resistant PVC

Flame retardancy

No, see FRHF Version

Outer dimension

9.5

mm

Packaging/bobbin

75

meters/bobbin

Electrical performance

Resistance

82

Ohm / km

Capacitance

42

pF / m

Characteristic impedance

100

Ohm

Velocity factor

0.8 x

C (speed of light)
