Supra DVI-DVI Dual Link
DVI (Digital Visual Interface) is a standard for digital picture and video transmissions between e.g. computers, screens and projectors. It included also support for HDCP video encyption and defines input/output protocols for major 3D video formats, paving the way for true 3D gaming and 3D home cinema applications. SUPRA HD7 high performance DVI dual link cable is specially designed for digital high bandwidth transfer up to 30m. Screen resolution support of 3840 x 2400 @ 33 fps (Hz), 2560 x 1600 @ 60 fps (Hz) and 2560 x 1440 @ 60 fps (Hz), makes it suitable for new generation > 27 inch computer screens, set new standard of both picture quality and cable design.
The HD7 cable conductors are insulated with air-injected PE foam for lowest capacitance and highest velocity factor (0.8 x speed of light) giving digital square wave rise time very close to the ideal; from 0 to 1 and back again instantly. The digital pairs have a precise and stable impedance over all working frequencies a property crucial in any digital circuit for not causing jitter. Individual screened pairs are twisted with different directions of the pitches in order to minimise crosstalk. The cable is triple-shielded, the most sensitive conductors are separately screened. In addition, all conductors are protected with a common, double shield of aluminized PET foil and a 5N purity copper braid, which provides highly efficient shielding over a wide band of electro-magnetic interference (EMI, RFI).
The cable is equipped with 24K gold plated connectors and a fully shielded contact housing made of aluminium to further avoid signal degradation. The connector is rewireable to enable mounting after cable installation in walls or conduits, tubing, trunking, etc. Since the contact housing is possible to disassemble, the DVI contact body is possible to route in a large enough conduit provided that the fragile leads kan be covered and NO traction force is applied to the contact housing itself. The gold plating of the pins is as thick as 0.8 microns for long service life connection quality also with frequent re-connections.
Features and benefits
High resolution allows for the challanging formats of todays upcoming computer screens
Exceptionally fast with low capacitance allows very detailed and easy-to-read square waves at the receiver end
Rugged cable, strain relief and connectors provides for long service life also when frequently re-connected
Made in Sweden! – Highest possible quality according to our rigid quality assurance plan
Maximal resolution, DVI-D dual-link:
3840 x 2400 @ 33 fps (Hz) (WQUXGA)
2560 x 1600 @ 60 fps (Hz)
2560 x 1440 @ 60 fps (Hz) (WQXGA)

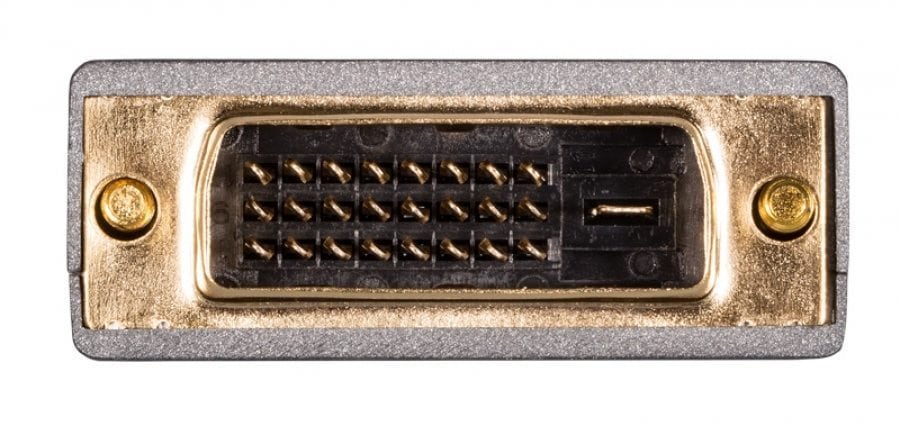

Connectors: DVI-D 24+1, 24K gold plated
Mechanical specifications
Standard: DVI (Digital Visual Interface)
Connection configuration: Dual-Link, DVI-D 24+1 pins
Connectors: DVI ♦ DVI
Signal direction: Bi-directional
Applications e.g.: Computers, projectors and computer displays
Max resolution: 3840 x 2400 @ 33 (WQUXGA) pixels @ fps
Solder tin: Almit SR-34 Super
Cable strain relief: Screw / clamp integrated in connector housing
Cable: Supra HD7 dual-link
TMDS lead cross section: 7 x TMDS 0.258 / 23 mm2 / AWG
Lead material: Solid 5N oxygen-free copper
Di-electric (insulation): High content, air-injected PE foam
Inner screen, coverage: Aluminized PET Foil, 100 %
Communication lead cross section: 5 x 0.129 / 26 mm2 / AWG
Di-electric (comm. leads): PE
Outer screen, coverage: Aluminized PET Foil and 5N OFC Braid, 100 %
Jacket: Heat and age resistant PVC
Flame retardancy: No, se FRHF Version
Outer dimension: 11 mm
Weight / meter without connector: 0.142 kg/m
Electrical properties
Resistance: 82 Ohm / km
Capacitance: 42 pF / m
Characteristic impedance: 100 Ohm
Velocity factor: 0.8 x C (speed of light)
