SUPRA CLASSIC 2X4.0 WHITE 5M

Kaina už 1 vnt.

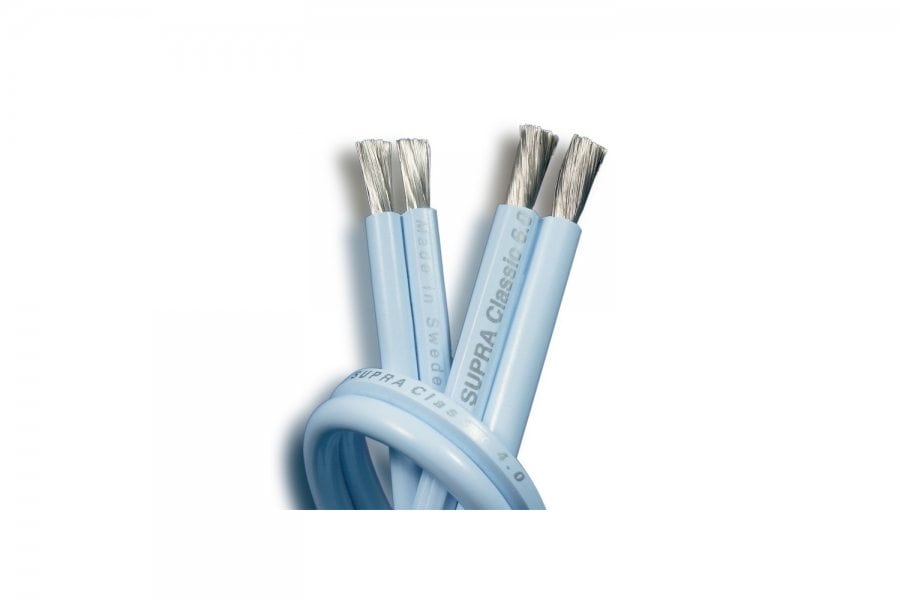

Supra Classic 2 x 4.0 mm2
Typical applications: High powered, also intermediate lengths or bass wiring in bi-wired or bi-amplified Hi-Fi system. Maintained flexibility.

Classic Series – The Original!
The Classic series encompasses flexible tin plated, multi-strand, oxygen-free 5N purity Copper! In addition to the corrosion resistance, the tin plating contributes also to a much wanted skin-effect reduction and prevents the electrons (i.e. the current) from disruptive ”jumps” between the strand surfaces, hence adding unwanted timing errors to the music signal. The insulation of a select grade chemically stable PVC further improving the sonically benign tin surface over time. The Classic cables are available also in a flame retardant and halogen free version; Classic/H FRHF.

The Classic series is according to todays measures good entry level cables and are available in dimensions suitable for a wide range of power transmission demands. Compared to any low cost hifi-kits included speaker cables, Supra Classic will give a clearly audible improvement.

Mechanical Specifications

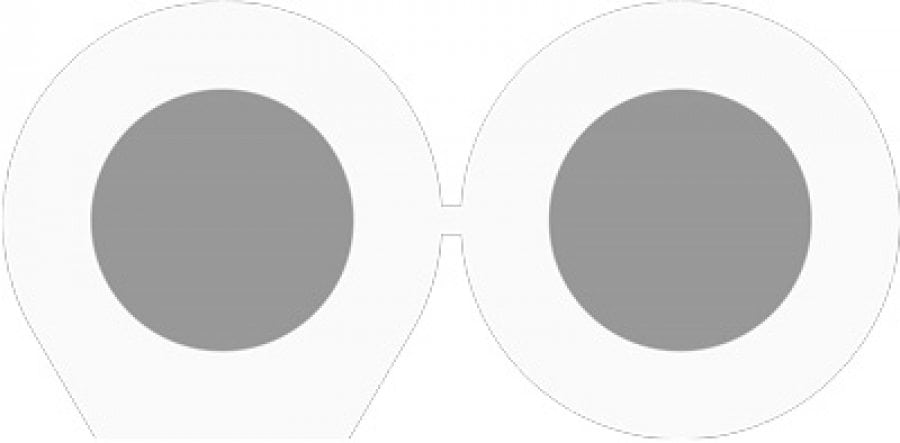

Crossection area

4.0 / 11

mm2 / AWG

Number of conductors

2

pieces

Number of strands per conductor

511

pieces

Strand diameter

0.10

mm

Conductor material

Tin plated oxygen free Copper

Jacket

Heat and age resitant PVC

Yttermått

4.8 x 9.6

mm

Weight

108

g/m

Halogen free and flame retardant

No, refer to Classic FRHF

Electrical performance

Resistance

4.3

Ohm/km

Inductance

0.55

µH/m
