PIONEER BDP-X300 – Universal player for BD, DVD, CD and SACD with DLNA1.5 video and audio streaming, 4K video scaling, 24bit/192kHz D/A converter and PQLS jitter control

Premium image and sound performance – at a moderate price

The BDP-X 300 represents the advancement of technology at its best: with this universal disc player, both the image and sound benefit from technologies that were very expensive or not even available a short time ago. The performance of the highly modern video engine for example is astounding, transforming conventional HD content from Blu-ray discs or the integrated video streamer into credible 4K ultra-HD. The Miracast screencast standard in combination with integrated WiFi is always a joy, beaming the screen contents of a tablet to the television at a tap. Those who want to use their player with the stereo system on occasion appreciate the BDP-X 300 even more; it features converters of very high quality that are clearly a match for pure CD players in terms of sound. With compatible Pioneer receivers, the BDP-X 300 with PQLS has even more up its sleeve, benefiting from exclusive sound transmission via the HDMI cable. On principle this transfer is prone to jitter, meaning fluctuations in the data rate that can result in distortion after conversion. With the BDP-X 300, Pioneer solves this problem at its root: when the player works with a PQLS-compatible receiver, it handles clocking of the audio data which practically eliminates jitter and results in more focused, clearer sound.

HIGHRES AUDIO

Experience digitally stored music as close to the original as never before. This device supports formats beyond the CD standard of a 44.1 kilohertz sampling rate and a depth of 16 bit. Experience WAV and FLAC files in real studio quality with resolutions of up to 192/24. This device also plays the direct stream digital (DSD) format used on super audio CDs, with a sampling rate of up to  2.8 megahertz.

EVERYTHING WELL UNDER CONTROL

With the user-friendly iControlAV5 app you can control your iPlayer directly from your Smartphone or Tablet. You can acquire this app free of charge in an app store or on Google Play.

4K ULTRA-HD SCALING

Give your Ultra-HD display the food it needs. This Pioneer device is not only fully compatible with all available high-definition video signals, its high-performance video scaler also produces 4K images, even from low-resolution material. In this way, with up to 20 times as many pixels, even your old DVDs will gain a new dimension where both focus and lack of interference are concerned.

EXPERIENCE MORE TOGETHER

This device supports a wide range of all current formats and possibilities for sharing content together. Connect yourself with the home network wirelessly via wi-fi direct, without a router or an access point, and access films, photos and music on your PC or on your network hard disk. Send videos, photos and games directly from your Smartphone to the television via your player. And use the integrated YouTube Client for speedy access to millions of videos from the internet.

QUICK VIEW/SLOW VIEW

Via the “quick view with sound” and “slow view with sound” functions, Blu-ray discs and DVD films can be played faster (at 1.5 times the speed) or slower (at 0.8 times the speed) without changing the tone pitch or the sound characteristics.

SPECIFICATIONS:

AUDIO FEATURES:

Exclusive Audio DAC Board with 192 kHz/24-bit DAC

192 kHz/24-bit Audio Playback (WAV, FLAC, ALAC)

2.8 MHz DSD Playback

Multi-Channel (5.1ch, 5.0ch) Audio Playback (WAV, FLAC, DSD)

Dolby TrueHD/Dolby Digital Plus

DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS-ES/DTS 96/24

HQ Sound for Clear Audio Transmission via HDMI

Precision Quartz Lock System (PQLS) for Compatible AV Receiver

Shielded Power Supply (SMPS) Circuit Board

Anti-Standing Wave Insulators (Rear Insulators Only)

Sound Retriever Link

VIDEO FEATURES:

Ultra HD (4K/24p) Upscaling (BD/DVD/PC File)

Blu-ray 3D Playback

Stream Smoother Link

36-bit Deep Colour, “x.v.Colour”

NETWORK FEATURES:

DLNA Certified™*1 (1.5) with Trick Play Features (Fast/Slow Forward, Fast/Slow Rewind)

Various Playable Formats

Built-in Wi-Fi (IEEE802.11 b/g/n)

Miracast via Wi-Fi Direct™

OPERATING FEATURES:

Network Standby/Wake on LAN (Wired/Wireless)

BD-Live™/BONUSVIEW™

iControlAV5 Remote App Ready (iOS/Android)*2

Continue Mode

Quick (x1.5)/Slow (x0.8) View with Audio

Short Skip/Replay

GUI in HD Resolution

Auto Power Off

Firmware Update (USB/Network)

BD-ROM/BD-R (DL)/BD-RE (DL)

DVD-Video/DVD-R (DL)/DVD-RW/DVD+R/DVD+RW

AVCHD

Video CD/CD-DA/CD-R/CD-RW/CD-EXTRA (audio only) / CD-GRAPHICS (audio only)/DTS-CD (audio only)

SACD

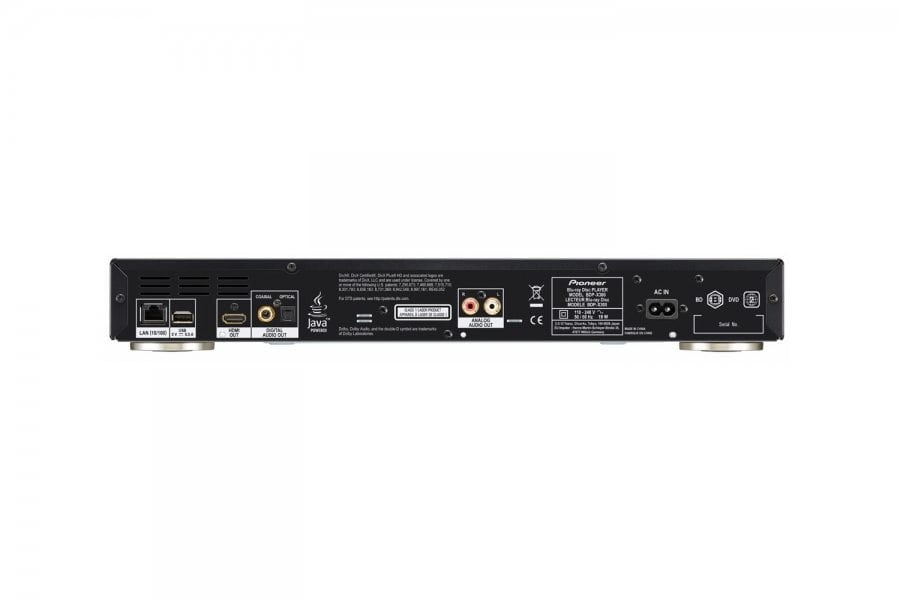

CONNECTIONS:

HDMI Output (Gold Plated)

Digital Optical Output

Digital Coaxial Output (Gold Plated)

USB 2 Inputs (1 Front/1 Rear)

Ethernet

2-ch Analogue Audio Output (Gold Plated)

OTHER FEATURES:

Network Standby/Wake on LAN (Wired/Wireless)

BD-Live™/BONUSVIEW™

iControlAV5 Remote App Ready (iOS/Android)*2

Continue Mode

Quick (x1.5)/Slow (x0.8) View with Audio

Short Skip/Replay

GUI in HD Resolution

Auto Power Off

Firmware Update (USB/Network)

DIMENSIONS & WEIGHT:

Dimensions (W x H x D): 435 x 63 x 250 mm

Weight: 2.3 kg
