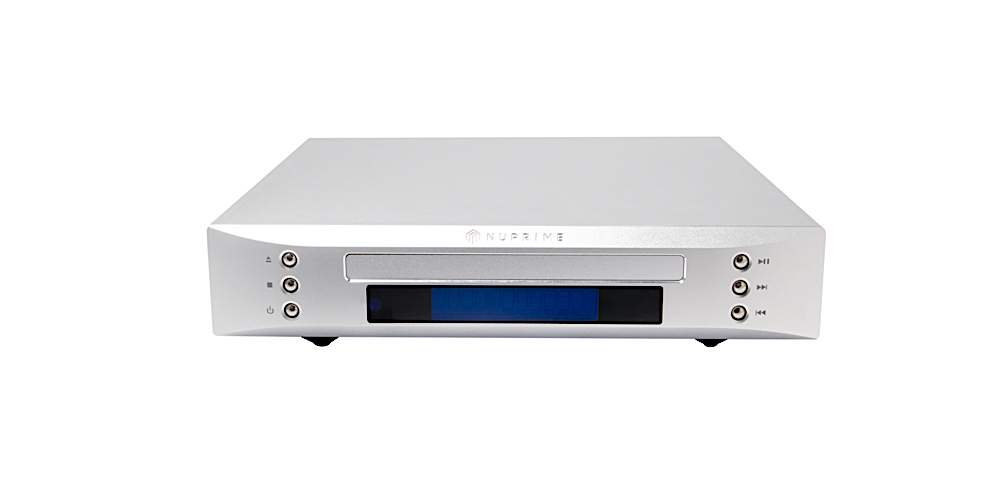

The NuPrime CDT-9 is a highly accurate professional music CD transport with powerful DSP-based decoder that provides all Red Book error-correction capabilities with master-clock control of the entire decoding system, thus lowering jitter significantly. The transport’s single speed minimizes vibration and unbalanced discs. A selectable sampling rate converter (SRC) samples the CD format to a higher sampling rate (up to PCM 24-bit/768kHz and DSD256) with ultra-low jitter and distortion.

The CDT-9 Transport comes with features that enable it to out perform all CD transports in its price range.

Highly Accurate CD Playback

• A powerful ARM chip LPC2103F CD reads, writes and controls error correction
• Philips SAA7824HL high-end laser reads/writes head control and decodes chips for CD transport. The transport and laser assembly is a Sony KHM-313.
• Supports CD-DA CD-R, CD-RW format
• Algorithm reduces digital interference resulting in extremely low jitter
• Coaxial output with a dedicated isolation transformer
• Low jitter I2S output for professional use

Sampling Rate Converter

• The sampling rate of CD playback can be up sampled to PCM and DSD, from 44.1kHz to 768kHz or DoP256
• The conversion is achieved by up-sampling to mega hertz before down converting to the targeted sampling rate with ultra-low jitter and distortion

Power and Mechanical

• Custom R-type professional transformer with shielding
• Low power consumption in Standby Mode•
• NuPrime vibration-free isolation feet
• High quality aluminium remote control
• Available in black or silver anodized aluminum finish
• External AC adapter included
• Bundled with LPS-212 for $1450 (recommended option)

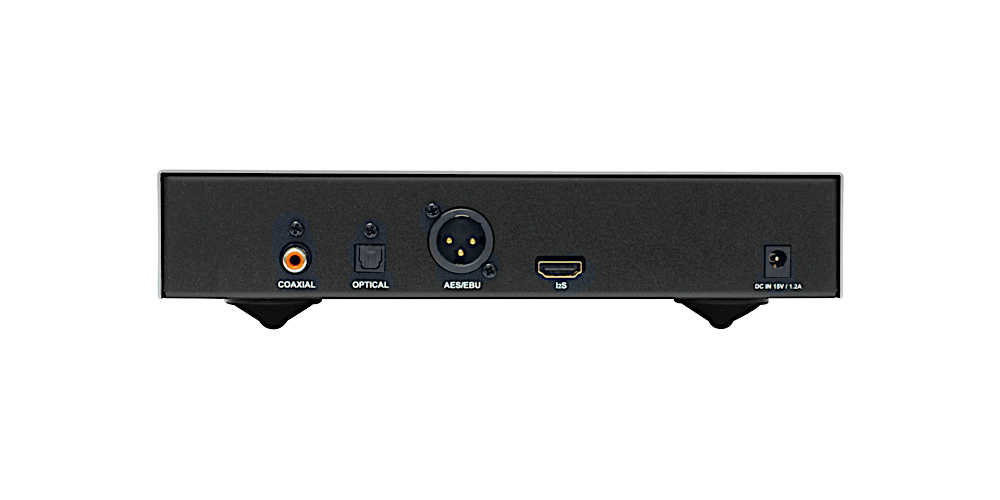

Outputs:

• Optical Output  (up to 24  bits  /  192 kHz) (DoP64)
• Coaxial Output  (up to 24 bits  /  768KHz) (DoP256)
• HDMI I2S* Output (up to 24 bits  /  768KHz) (DoP256)
• AES / EBU Output (up to 24 bits  /  768KHz) (DoP256)

• Optical Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
  192KHz, DoP64
• Coaxial Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
  192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
• HDMI I2S Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
  192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
• AES / EBU Sampling Rates Converter (SRC): 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
  192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
• Bit Resolution: 24-bits
• Dimensions: 235 mm W x 260 mm D x 55 mm H (including feet). The CD transport is 20.5mm from the edge of the case.
• Weight: 3Kg
• AC Fuse: Slow-blow, 1A, 250VA
• Worldwide AC voltage: 100VAC~240VAC
