QUAD Vena II SILVER

€899.00 vnt

people are viewing this right now

Integruotas stiprintuvas.

Galimos spalvos

Liko vnt.

Garantuotas saugus apmokėjimas

NEMOKAMAS PRISTATYMAS LIETUVOJE UŽSAKIUS VIRŠ 99 EUR
PREKIŲ PRISTATYMAS LIETUVOJE PER 2 - 3 D.D. Shipping & Return

Kategorijos: Namų technika, GARSO STIPRINTUVAI, Integruoti stiprintuvai

Aprašymas

Vena II

Integrated Amplifier

Building on the strengths of its predecessor, the Vena II is an exceptionally neat and convenient way to bring true high-fidelity sound to the varied nature of modern music collections – from vinyl and CD to digital streaming and hi-res files – via all manner of playback devices.

Download Brochure

OVERVIEW

SMART AESTHETICS

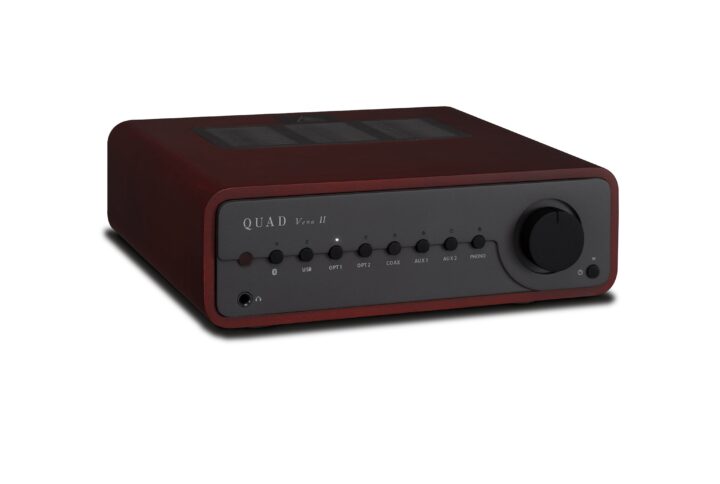

The Vena II’s small footprint (compared to many amps in its class) allows flexible positioning and ensures the amp slips tidily into a range of environments. The amp‘s dapper design is enhanced by a choice of four finishes: Quad’s classic Lancaster Grey is the standard option, while three premium finishes – Sapele Mahogany, Gloss Black and Gloss White – wrap the Vena II’s aluminium housing in veneered or lacquered wood.

Technology

SIGNIFICANT IMPROVEMENTS

The Class AB power amp section now has an upgraded power supply, a new 200VA toroidal transformer lying at its heart. This is followed by 2x15000uF reservoir capacity (30000uF in total), helping the amp to maintain firm control of the music whilst enabling excellent dynamic range.

Vinyl lovers will appreciate the addition of a phono stage for moving magnet cartridges – a high-quality, low-noise, JFET-based circuit with precise RIAA equalisation.

Headphone users are also better catered for. The original Vena included a headphone output, but this was connected to the amp’s main output stage rather than to a specialised headphone amp circuit. The Vena II incorporates a dedicated headphone amp with current-feedback circuitry, its gain bandwidth and high slew rate delivering a more dynamic, detailed and engaging performance with all manner of headphone types.

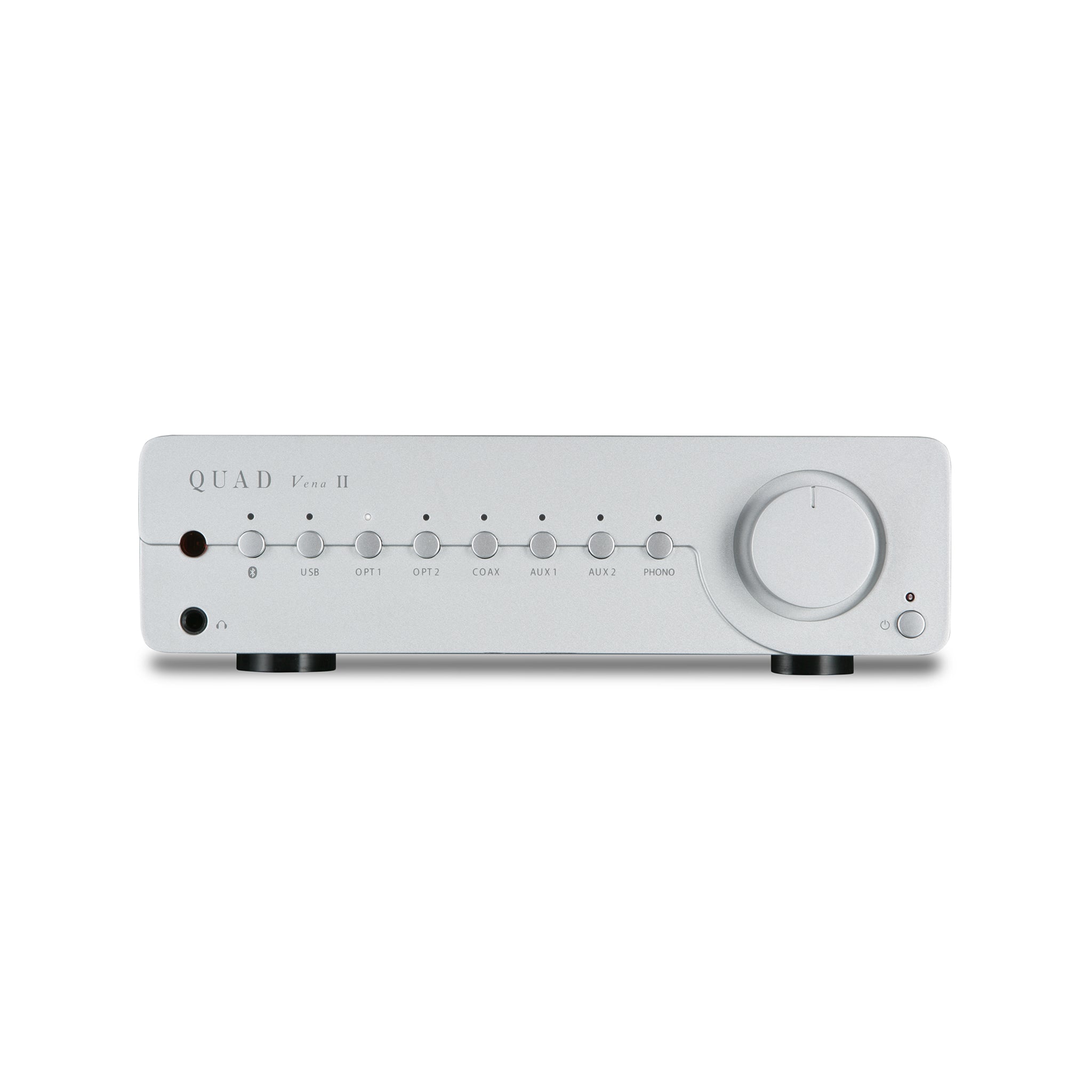

Simplicity is key to the Vena II’s outward design. Quad’s design team selected Bluetooth wireless streaming, with support for the aptX codec, to ensure easy pairing with all manner of smartphones, tablets, PCs and Macs – expertly implemented to deliver an adroit balance of quality and convenience. The Vena II feels like a traditional hi-fi amplifier, with its uncomplicated front-mounted controls and simple remote, yet its specification is state-of-the-art.

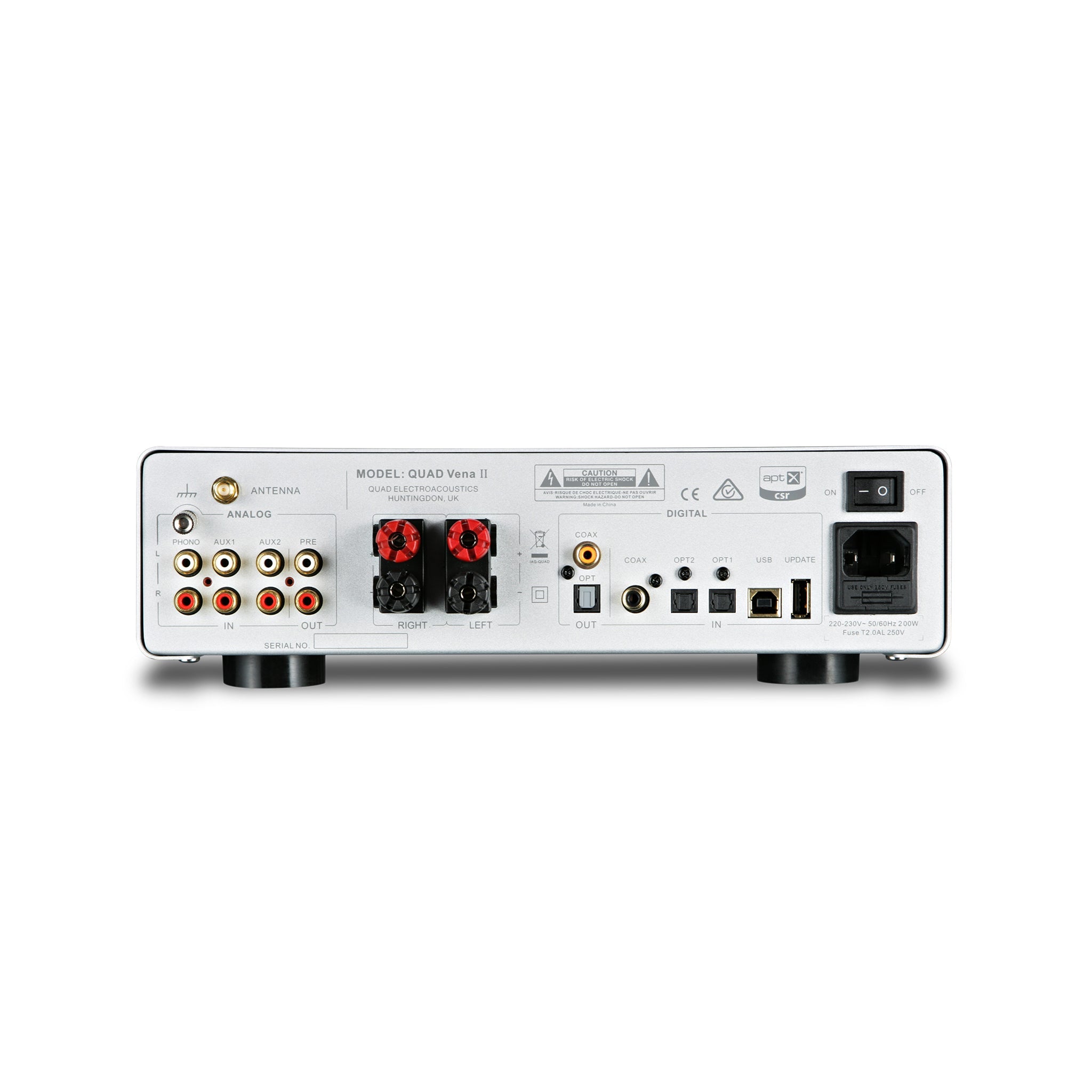

Copious cable connections enhance the amp’s flexibility. Inputs for digital sources comprise asynchronous USB and three S/PDIF sockets (one coaxial and two optical), while digital outputs are provided in optical and coaxial flavours. Analogue signals are catered for by three stereo RCA inputs – two line-level plus the new MM phono input for turntables – while pre-out sockets permit the addition of an external power amplifier.

Preamplifier Section
Analogue Inputs	2x line-level RCA / 1x MM phono
Analogue Outputs	1 x RCA (pre-out)
Analogue Input sensitivity	450mV (line-level) / 4.1mV (MM phono)
Analogue Input impedance	10kΩ (line-level); 47kΩ / 100pF (MM phono)
Frequency Response	20Hz-20kHz (+/- 0.5dB)
Total Harmonic Distorion (THD)	< 0.002%
Signal-to-Noise	> 110dB (A-weighted)
Power Amplifier Section
Power Output	2x 45W RMS (8Ω) / 2x 65W RMS (4Ω)
Frequency Response	20Hz-20kHz (+/- 0.5dB)
Total Harmonic Distortion (THD)	< 0.005% (30W, 8Ω)
Signal-to-Noise	> 108dB (A-weighted)
Digital Section
DAC Chip	ESS Sabre32 ES9018K2M
Digital Inputs	2x optical; 1x coaxial; 1x USB Type A; aptX Bluetooth
Max Sampling Frequency – USB	384kHz PCM; DSD256
Max Sampling Frequency – Optical/Coaxial	192kHz PCM
Digital Outputs	1x coaxial; 1x optical
