REVEL SA1000

€1,428.00 vnt

people are viewing this right now

Galios stiprintuvas.

Liko vnt.

Garantuotas saugus apmokėjimas

NEMOKAMAS PRISTATYMAS LIETUVOJE UŽSAKIUS VIRŠ 99 EUR
PREKIŲ PRISTATYMAS LIETUVOJE PER 2 - 3 D.D. Shipping & Return

Kategorijos: Namų technika, GARSO STIPRINTUVAI, Galios stiprintuvai

Aprašymas

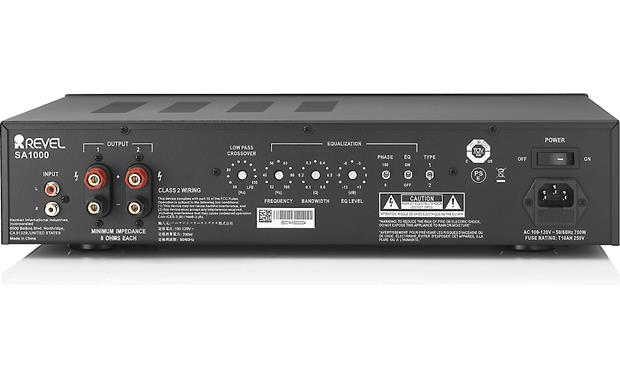

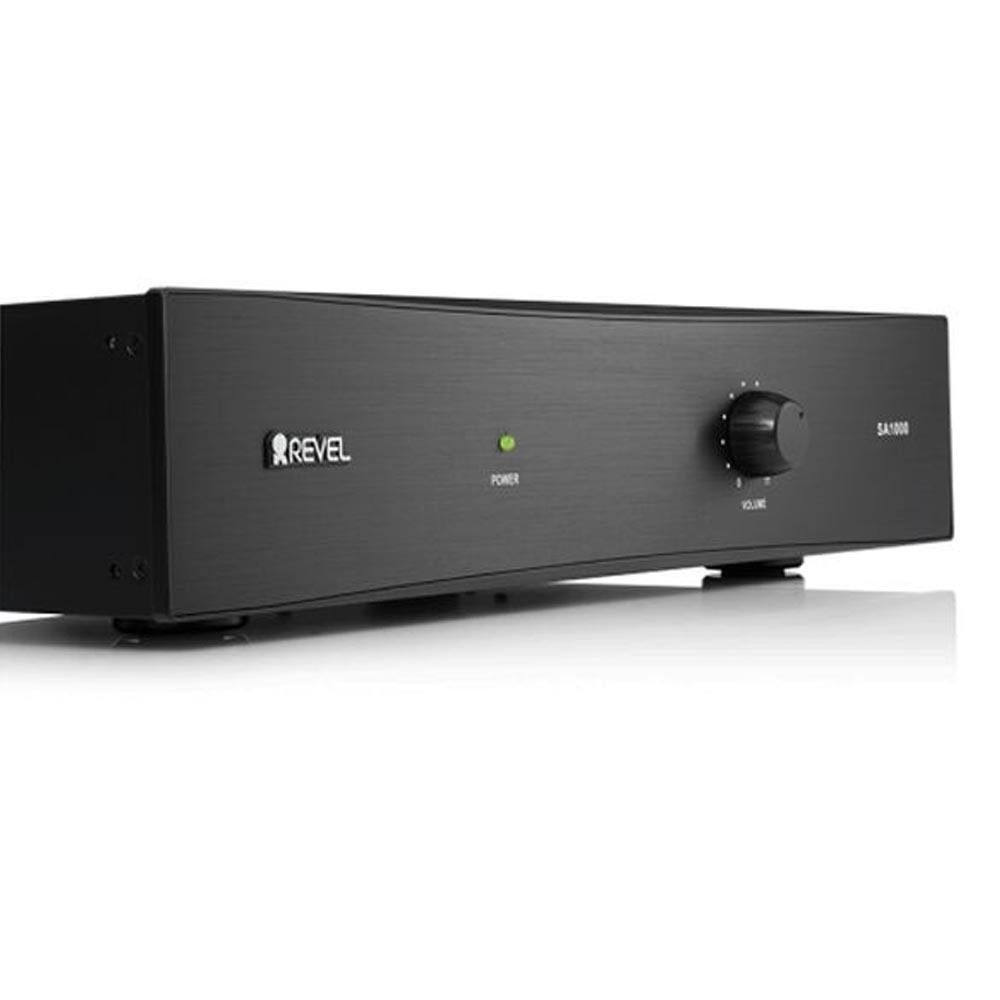

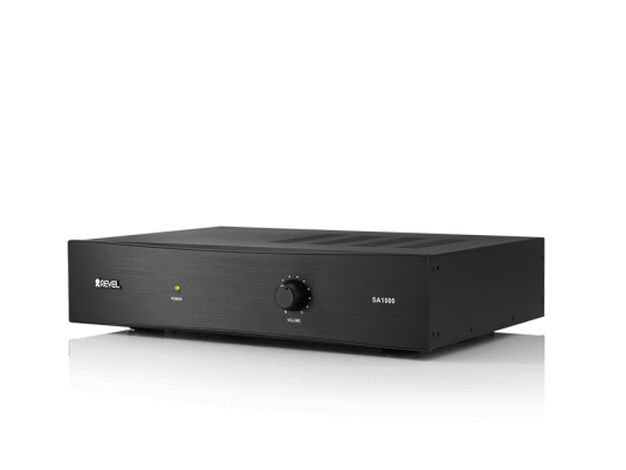

The SA1000 is a custom amplifier solution, optimized for the highest level of performance and reliability. This rackmount amplifier includes user features on the front panel, and a custom installer focused feature set on the rear panel. As part of Revel’s in-wall subwoofer system, this rack mountable Class D component is designed to power the B28W in-wall subwoofer.

The SA1000 single channel, rack mount amplifier has two outputs in parallel, so you can power one B28W subwoofer module with 350W RMS (750W Peak). When a second B28W subwoofer module is connected to the second output of the SA1000 amplifier, the total output power increases to 700W RMS (1500W Peak).

This complete in-wall subwoofer solution with external rack mountable amplifier is designed to complement Revel’s high-performance architectural product portfolio. It delivers dynamic bass and lifelike realism to concealed music and home cinema systems resulting from Revel’s advanced engineering prowess, and comprehensive subjective and objective measuring tests.

General Specifications

Rated Output Power (RMS) into the minimum impedance of 4 ohms	700 Watts (350W per Subwoofer)
Peak Power	1500 Watts (750W per Subwoofer)
Rated Impedance	8 Ohms per speaker output
Minimum Load Impedance	4 Ohm
Model-Specific EQ 1	Only for Revel B28C; 2 Only for Revel B28W
Input Sensitivity to 1W @ 50HZ	16.3mVrms +/- 1dB (Single input driven) Gain = 41.7dB
Input Overload (Both Inputs Driven)	2.0Vrms
Input Impedance	>10K Ohms
Low Pass Crossover Range	50-150Hz
Auto Turn On Input Sensitivity @ 50Hz	Typical 10mV
THD+N At 1W	<0.3%
THD+N At Rated Output Power	<1%
Signal-to-Noise Ratio To 1W	>65dBA
Minimum AC Mains Power Requirements Model	700W, 5A – 100-120VAC-50-60Hz
Minimum AC Mains Power Requirements Model	700W, 3A – 230VAC-50-60Hz
Power Consumption (Standby)	0.5W
Height	3.50in (88.90mm)
Width	17in (431.8mm)
Depth	11.04in (280.3mm)
Weight	14 lb (6.35kg)

Audio Specifications

Rated Output Power (RMS) into the minimum impedance of 4 ohms	700 Watts (350W per Subwoofer)
Peak Power	1500 Watts (750W per Subwoofer)
Rated Impedance	8 Ohms per speaker output
Minimum Load Impedance	4 Ohm
Model-Specific EQ 1	Only for Revel B28C; 2 Only for Revel B28W
Input Sensitivity to 1W @ 50HZ	16.3mVrms +/- 1dB (Single input driven) Gain = 41.7dB
Input Overload (Both Inputs Driven)	2.0Vrms
Input Impedance	>10K Ohms
Low Pass Crossover Range	50-150Hz
Auto Turn On Input Sensitivity @ 50Hz	Typical 10mV
THD+N At 1W	<0.3%
THD+N At Rated Output Power	<1%
Signal-to-Noise Ratio To 1W	>65dBA
Minimum AC Mains Power Requirements Model	700W, 5A – 100-120VAC-50-60Hz
Minimum AC Mains Power Requirements Model	700W, 3A – 230VAC-50-60Hz
Power Consumption (Standby)	0.5W
Height	3.50in (88.90mm)
Width	17in (431.8mm)
Depth	11.04in (280.3mm)
Weight	14 lb (6.35kg)
