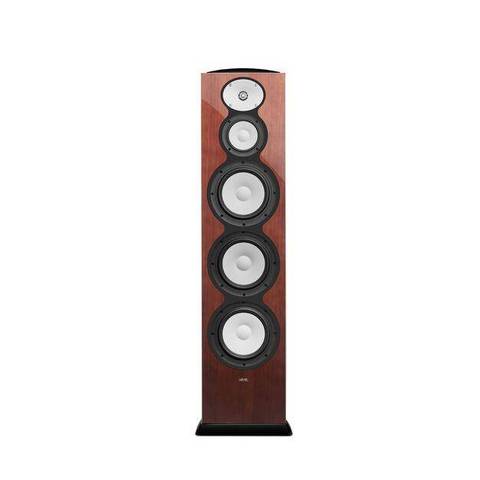

REVEL F328BE WALNUT

€10,000.00 vnt

people are viewing this right now

3-jų juostų grindinė kolonėlė.

Galimos spalvos

Liko vnt.

Garantuotas saugus apmokėjimas

NEMOKAMAS PRISTATYMAS LIETUVOJE UŽSAKIUS VIRŠ 99 EUR
PREKIŲ PRISTATYMAS LIETUVOJE PER 2 - 3 D.D. Shipping & Return

Kategorijos: Namų technika, GARSO KOLONĖLĖS, Grindinės kolonėlės

Aprašymas

The Revel F328Be is the flagship floorstanding loudspeaker from our award-winning PerformaBe series. The F328Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful all-new tweeter and 6th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminum or titanium tweeters.

Beryllium – Element 4 on the Periodic Table – is a rare earth metal that is renowned for its remarkable physical properties that make it the ideal material for a high-frequency transducer. Compared to aluminum and titanium tweeter diaphragms, Beryllium offers 4.5 times the stiffness and three times more damping, and does so at only half of the weight. Beryllium tweeters are the centerpiece of the Revel PerformaBe loudspeaker series.

The 5.25-inch (130mm) midrange and triple 8-inch (200mm) aluminum cone woofers utilize Deep Ceramic Composite (DCC) cones for improved performance. DCC is a plasma electrolytic oxidation process that uses a plasma discharge to create a coarse ceramic coating on both sides of the aluminum core. The deep ceramic layers sandwiching the aluminum core provide constrained layer damping that push cone breakup modes outside of the passband allowing the driver to maintain ideal pistonic motion throughout its range. DCC cones combine with optimized motor magnetics to deliver improved mid- and low-frequency performance.

PerformaBe crossover networks utilize all film capacitors and air core inductors in the midrange and tweeter circuits. These premium components allow Revel’s world-class engineers to extract nuances and details from music that would otherwise be lost. Combined with traditional Revel high-order crossover slopes and proprietary Acoustic Lens waveguide geometry, transducer integration is seamless.

F328Be top panels are painted in stylish metallic black with raised electroform badging. The loudspeakers are available in a choice of four high-gloss finishes for seamless integration into any décor: Black, White, Walnut, and Silver.

General Specifications

Type	3-way triple 8″ floorstanding loudspeaker
Low-frequency transducer	Three 8″ (200mm) Deep Ceramic Composite aluminum cones, with cast frames
Midrange transducer	5-1/4″ (130mm) Deep Ceramic Composite aluminum cone, with cast frame
High-frequency transducer	1″ (25mm) Beryllium dome, with acoustic lens waveguide
Recommended amplifier power range	50 – 300 watts
Frequency response	26Hz – 40kHz (-6dB)
Low-frequency extension	24Hz (-10dB); 26Hz (-6dB); 35Hz (-3dB)
Nominal impedance	8 ohms
Sensitivity (2.83V/1m)	91 dB
Crossover frequencies	240Hz; 2.1kHz
Enclosure type	Bass-reflex via dual rear-mounted ports
Inputs	Dual gold-plated binding posts with shorting straps
Available high-gloss finishes	Black, White, Metallic Silver, and Walnut
Dimensions with base and grille (H x W x D)	50.9″ x 13.5 ” x 17.6″ (1294mm x 341.3mm x 448.5mm)
Product Weight	51kg
