90º x 90º TRACTRIX HORN
Our exclusive Tractrix® horn technology delivers the power, detail and emotion
of the live music experience with the cleanest, most natural sound possible.
LINEAR TRAVEL SUSPENSION (LTS) ALUMINUM TWEETER
WITH KAPTON SUSPENSION
The exclusive Linear Travel Suspension (LTS) minimizes distortion for enhanced,
detailed performances. Kapton® is an extremely light and rigid material used
in the tweeter suspension to provide high efficiency and improve resolution
and detail. LTS tweeters are a hallmark of Klipsch speakers, making it a core
component of some of the best speakers in the world.
SPUN COPPER IMG WOOFER
Injection Molded Graphite (IMG) woofer cones are exceptionally light while
being extremely rigid – providing remarkable low frequency response, with
minimal cone breakup and distortion. When paired with the Tractrix
Horn-loaded LTS tweeter, it provides speaker efficiency highest in its class.
SLEEK, CONTEMPORARY APPEARANCE

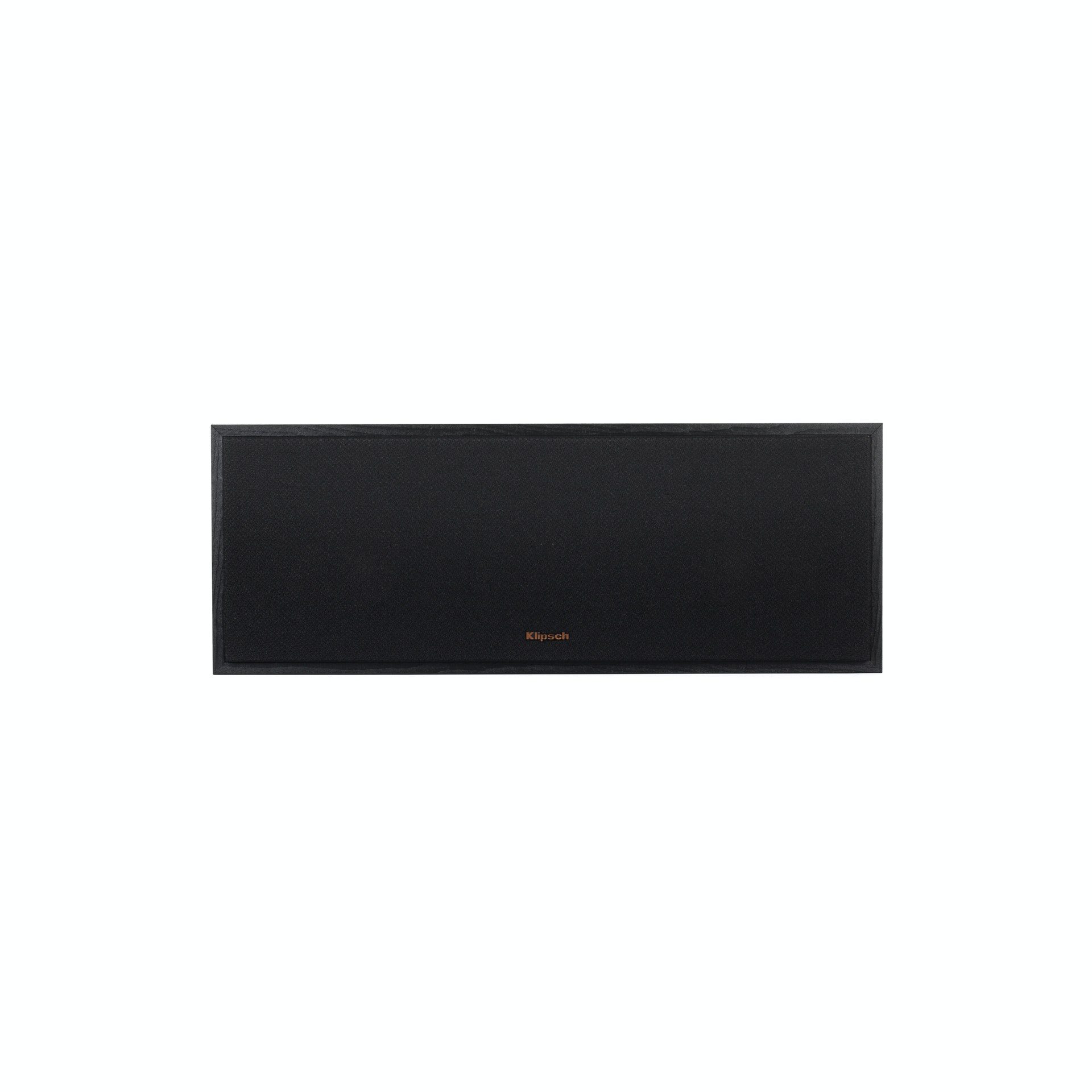

Exposed fasteners and low profile magnetic grilles give the speakers a
polished, modern appearance.
MDF CABINET WITH SCRATCH-RESISTANT, TEXTURED
WOOD GRAIN VINYL
Stylish aesthetic with absolute durability that results in a seamless
integration into any décor.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible
coloration and improved sonic accuracy.

Specifikacija:

FREQUENCY RESPONSE 89Hz – 21kHz +/- 3dB
SENSITIVITY 95 dB @ 2.83V/1M
POWER HANDLING (CONT/PEAK) 100W/400W
NOMINAL IMPEDANCE 8 ohms Compatible
CROSSOVER FREQUENCY 1,630 Hz
HIGH FREQUENCY DRIVER 1” Aluminum LTS tweeter mated to a 90 x 90 square
Tractrix® Horn
LOW FREQUENCY DRIVER Dual 5.25” spun-copper IMG woofers
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Sealed

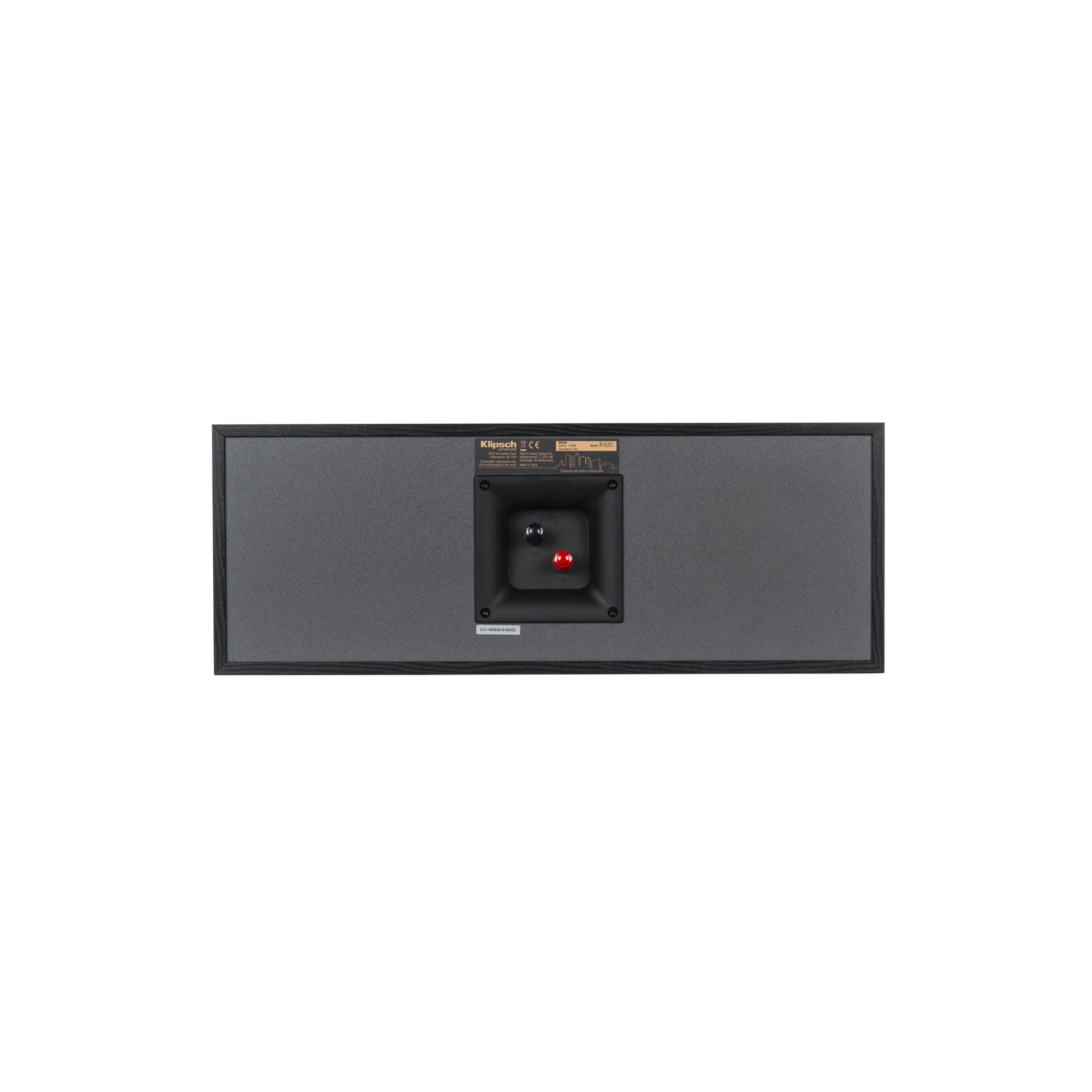

INPUTS Single Gold Plated Binding Posts
HEIGHT INCHES (MM) 7.3” (185 mm)
WIDTH INCHES (MM) 18.75” (476 mm)
DEPTH INCHES (MM) 7.6” (194 mm)
PRODUCT WEIGHT LBS (KG) 7 lbs (3.2 kg)
FINISHES Black Textured Wood Grain Vinyl
INCLUDED ACCESSORIES Rubber Feet (4)
BUILT FROM 2018
