TECHNOLOGY
1-inch (25 mm) silk dome decoupled tweeter with Anti-Diffraction WaveGuide and Tweeter Distortion Reduction
6-inch (152 mm) Hybrid Composition Conical Cone midrange driver with Long Displacement Surround technology.
Two 6-inch (152 mm) Hybrid Composition Conical Cone woofers with Long Displacement Surround technology
Anti-Diffraction Waveguide (ADW): Provides improved off-axis response with more uniform high frequency extension.
Hybrid Composition Conical Cone (HCCC): Provides the stiffness and strength of aluminum or titanium, with the transient response and smoothness of wood fibre.
Tweeter Distortion Reduction (TDR): Provides lower distortion, greater high frequency extension and smoother high end.
Long Displacement Surround (LDS): Provides cleaner, tighter, deeper bass.
Aluminum centre-plug: Eliminates cone breakup for faster attack and increased vocal clarity. Additional voice-coil cooling reduces power compression.
Dual, 5-way binding posts: Allows bi-wiring/bi-amplification with multiple connection options with wire up to 12 gauge (AWG).
DESIGN
The aesthetic of Jamo’s flagship Concert Series was envisioned by Kieron Dunk, world-renowned industrial designer. Concert Series’ beautiful exteriors house high-performance drivers, acoustically tuned to provide open, transparent playback of movies and music. Warm, natural sound is delivered throughout the environment, enveloping the listener
High-quality cabinetry, designer finishes and advanced technologies combine to create gorgeous furniture whose exceptional acoustics are surpassed only by their beauty. High quality finishes, satin painted MDF baffles, polished chrome logo, satin aluminum trim rings, centre plugs and stabilizer feet make the C 9 series aesthetically elegant, while providing exceptional acoustic performance.

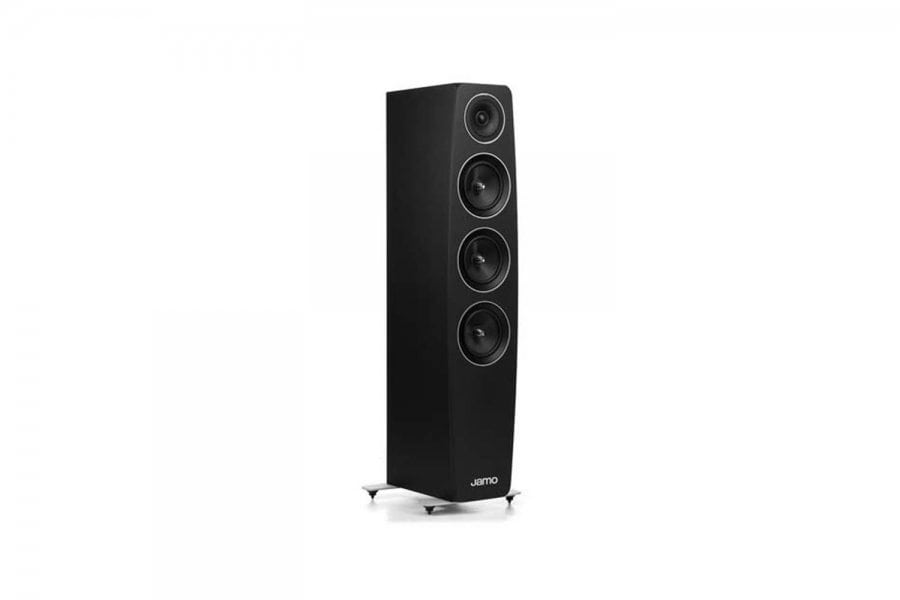

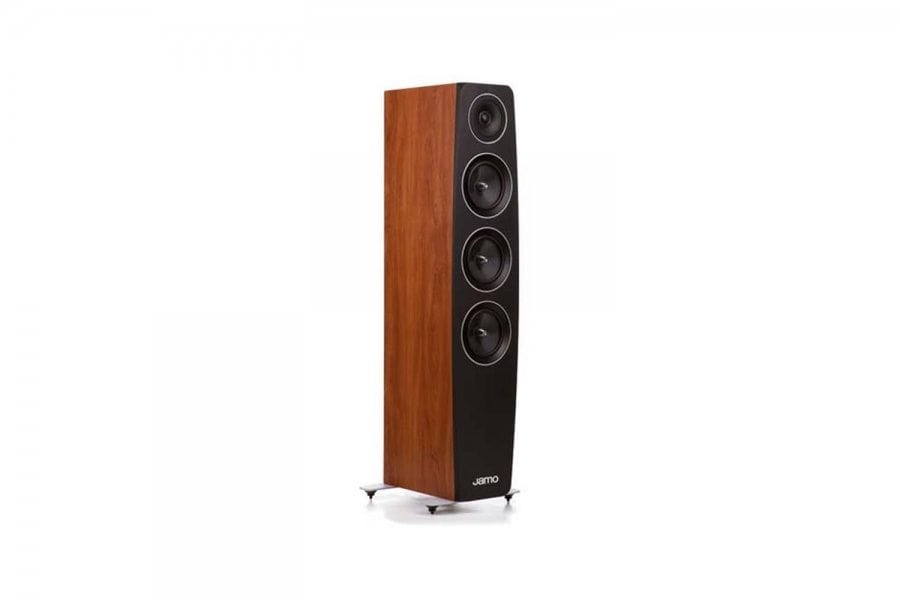

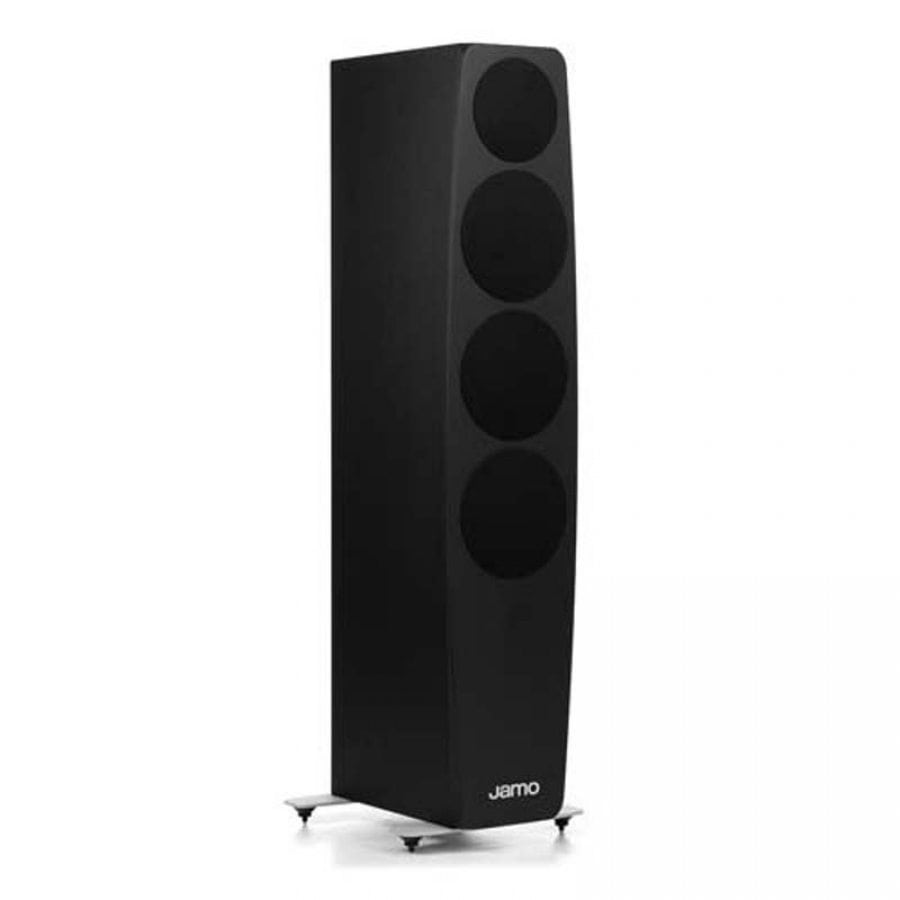

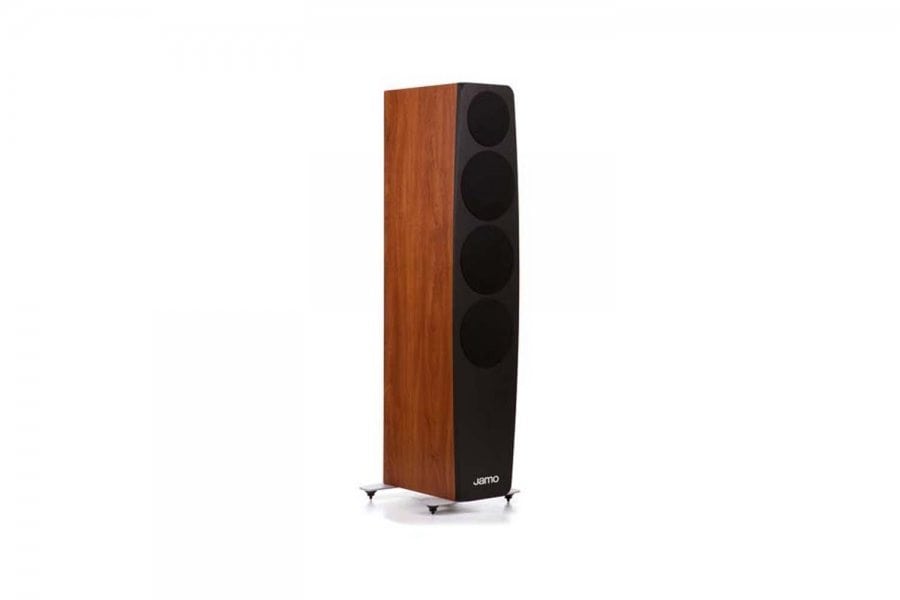

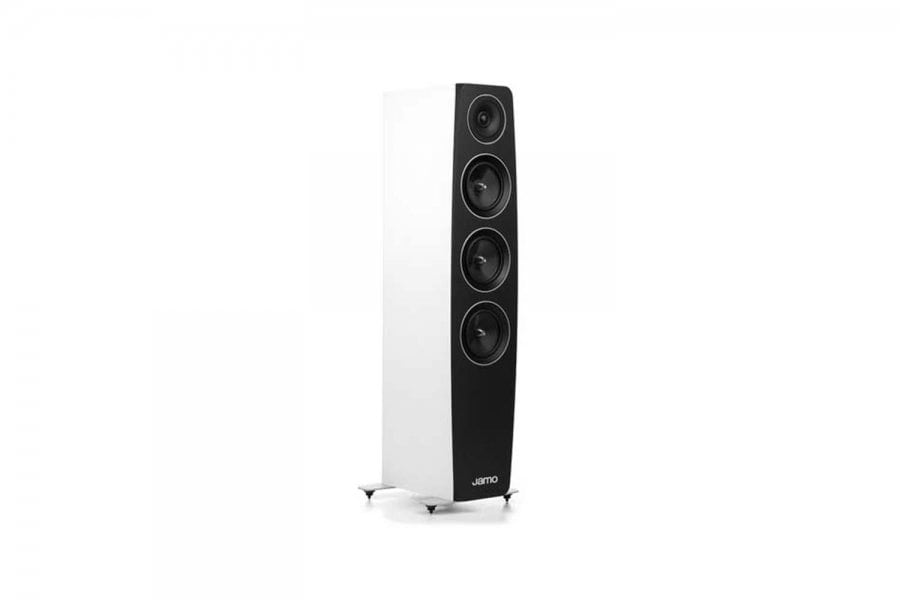

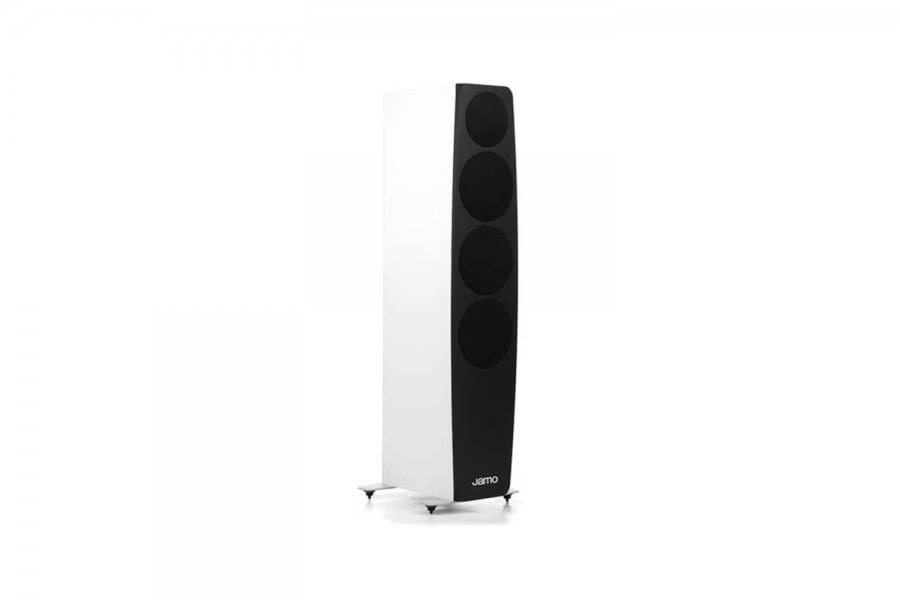

The C 97 is a feature-packed, 3-way bass reflex floorstanding speaker using two 6-inch woofers, a 6-inch midrange driver and a 1-inch decoupled tweeter to deliver remarkably accurate sound. The C 97 is available in Satin Black, Satin White and Dark Apple finishes with satin-painted MDF baffles for a premium, contemporary appearance.
SPECIFICATIONS
System Type 3-Way Bass Reflex
Impedance 6 Ohm
Weight (Kg/lb) 23.1 / 51
Tweeter (mm/in) 25 / 1
Woofer (mm/in) Two: 152.4 / 6
Product dimensions (mm/in, HxWxD) 1072 x 215 x 342 / 42.2 x 8.5 x 13.5
Frequency Response (Hz, +/-3dB) 32Hz – 24kHz
Power Handling (Watts Long/Short Term) 180 / 360
Sensitivity (dB, 2.8V/1m) 89dB
Midrange (mm/in) 152.4 / 6
Finish Satin Black,Satin White,Dark Apple
Minimum Amp Recommended 60W
Price for one unit.
