Housed within the gorgeous piano gloss black enclosure are two horizontally-opposed 12˝ ultra-long-throw active drivers and two vertically-opposed 15˝ x 13˝ planar infrasonic radiators, driven by a 1600 watt Class D Digital amplifier. This dual-plane, patented* dynamic inertial-balancing preserves and focuses all the energy produced by the transducers in order to more effectively move the air in the room, rather than wasting energy moving the box. It also enables you to hear all the fine subtle details in your recordings. The benefit is a new achievement in state-of-the-art subwoofer performance that, not only “rocks the house”, as Big Picture Big Sound’s Chris Boylan raved, but is also, “strong, pure and controlled” as Sound&Vision magazine’s Mark Fleischman wrote. With two active drivers separated horizontally in space, as well as two passive radiators separated vertically, the driver to-room coupling is distributed much more smoothly, for in-room bass performance that can’t typically be achieved with a single subwoofer.

Specifikacija:

Išmatavimai: 50 cm P x 44.6 cm A x 40.4 cm G

Svoris: 37.2 kg

Atkuriamų dažnių juosta:  10 Hz – 250 Hz

Garsiakalbių sudėtis:

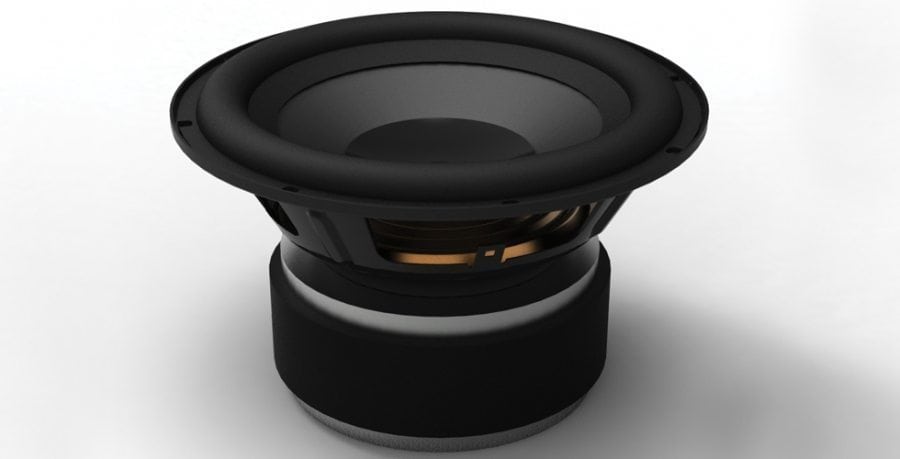

Du 12˝ didelės eigos aukštos galios žemų dažnių garsiakalbiai

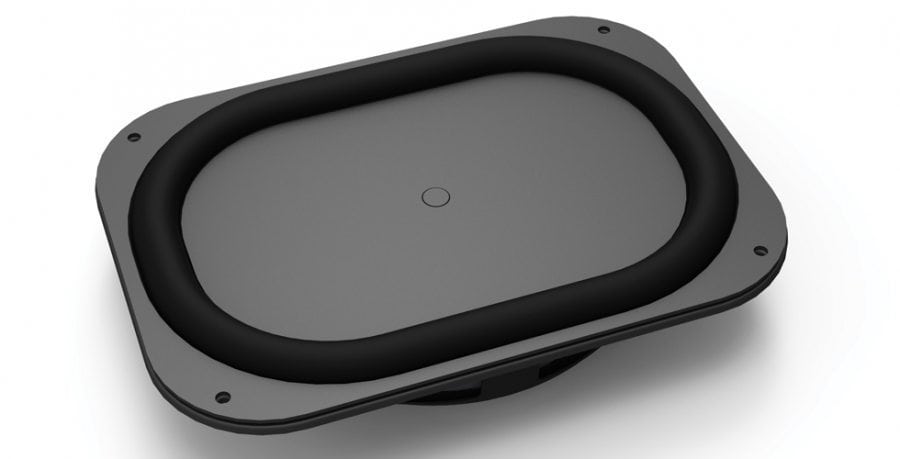

Du 13˝ x 15˝ kvadratiniai planariniai infragarsiniai radiatoriai

Stiprintuvas: 1600 W ForceField skaitmeninis stiprintuvas

LFE įėjimas: nefiltruotas , tiesioginis

Dešinės/kairės LFE įėjimas: Kintamų žemų dažnių nuo 40 Hz iki 150 Hz

Saugiklių dydis:

8 amp 250 voltų lėto perdegimo saugiklis

6.3 amp 250 voltų lėto perdegimo saugiklis

Galios reikalavimas/ suvartojimas (patvirtinta NA (TUV) ir CE rinkoms.):

Žemos įtampos versija – 120 V esant 50 arba 60 Hz / 1600 W

Aukštos įtampos versija – 240 V esant 50 arba 60 Hz / 1600 W

SuperSub Series Overview

The new SuperSub™ Series subwoofers are ultra-high-performance yet amazingly compact subwoofers that incorporate many recently developed unique and advanced technologies and components. The goal was to create beautifully styled, finely finished, reasonably sized subwoofers that could generate very low frequency pressure waves of extremely high amplitude, while delivering accurate and precise low frequency performance that is both highly impactful and extremely musical.

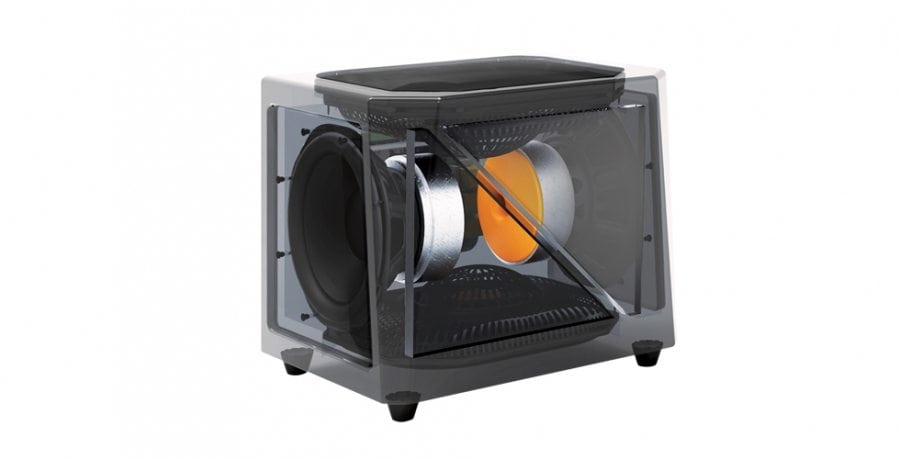

In order to achieve this, we have incorporated a unique, patented* 360 degree dual-plane inertially-balanced driver and sub-bass radiator topology, combined with a very advanced electronics package. With two active drivers separated horizontally in space, as well as two passive radiators separated vertically, the driver-to-room coupling is distributed much more smoothly, for in-room bass performance that can’t typically be achieved with a single subwoofer.

The electronics packages that drive the SuperSubs’ fully balanced array are a 1600 watt (XXL) and 1400 watt (X) Class D Digital amplifiers whose design is based on the technology originally developed for the GoldenEar Triton One tower. Features include: Discrete multi-band limiting, phase-perfect equalization, fully balanced and advanced reconstruction filters and a strong focus on keeping latency to an absolute minimum. Input facilities include a direct-coupled, unfiltered LFE input for home theater, or stereo Left/Right low level inputs with low-pass for two-channel setups. Sonically, the result of all this technology is rock-solid bass response that is both exceptionally fast and tuneful for music and extraordinarily deep and powerful, in order to effortlessly reproduce the most extreme movie sound effects.
