The 525 and 650 are designed for in-ceiling and in-wall use. The driver motor structures and cone/voice coil assemblies (5.25″ in the 525 and 6.5″ in the 650) are based on those utilized in GoldenEar’s Triton and Aon speakers. Of course, both also incorporate the GoldenEar High Velocity Folded Ribbon (HVFR™) tweeter and a complex crossover to perfectly blend the drivers for superb performance.

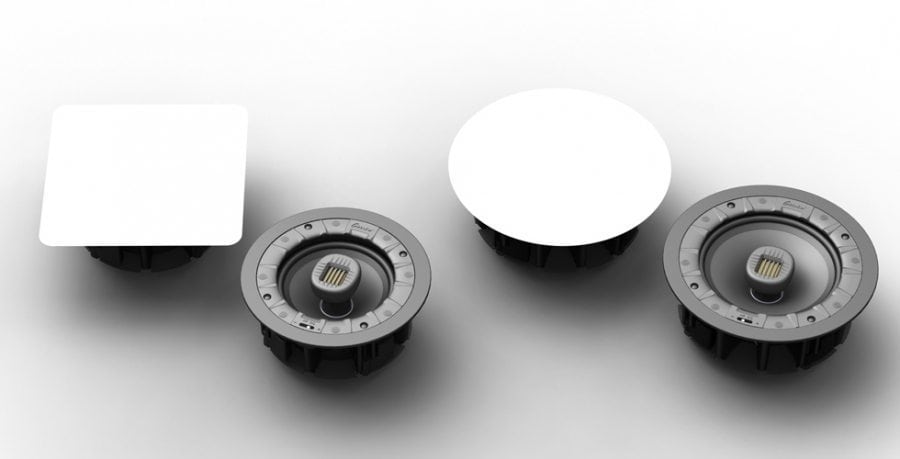

The 525s and 650s come standard with a round, paintable MagneLock™ grille and there is an optional square grille available. Special attention has been given to achieving wide sonic dispersion that is so important in distributed audio systems. The tweeters twist and pivot to optimize performance and a high-frequency equalization switch allows precise matching to any environment.

Specifikacija:
Kolonėlės išmatavimai: 20.63 cm diametras x 8.73 cm gylis
Kvadratinių grotelių išmatavimai: 21.98 cm x 21.98 cm
Apvalių grotelių išmatavimai: 22.06 cm diametras
Montavimas: 18 cm diametras
Svoris: 1.8 kg
Atkuriamų dažnių juosta: 25 Hz – 35 kHz
Efektyvumas: 90 dB
Nominali varža: Suderinama su 8 ohms
Garsiakalbiai:
1 x 16.51 aukštos raiškos vidutinių / žemų dažnių garsiakalbis
1 x HVFR™ Aukšto efektyvumo plėvelinis aukštų dažnių garsiakalbis
Rekomenduojamas stiprintuvas: 10 – 250 watt/kanalui

*Komplekte yra apvalios grotelės. Galimybė atskirai įsigyti kvadratines groteles.

Invisa Series Overview

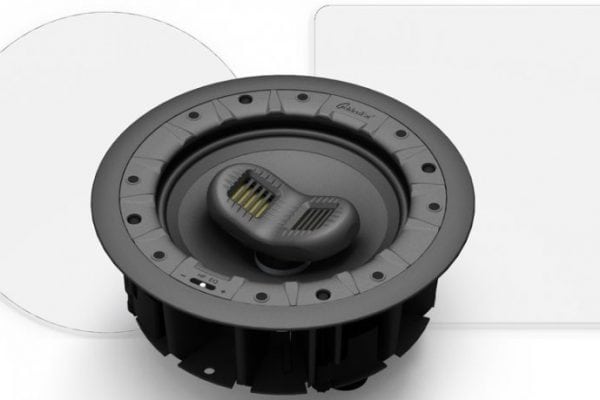

GoldenEar Invisa® Series loudspeakers are engineered to deliver superb state-of-the-art sound quality from in-wall/in-ceiling speakers that are designed to blend perfectly with their surroundings and virtually disappear. GoldenEar’s Invisa line-up consists of the Invisa 525, Invisa 650 and SP 652 StereoPoint™ Single-point Stereo speaker, the Invisa Home Theater Reference (HTR) 7000 and the Invisa MPX. All five models incorporate a magnetically attached grill-covered/hidden flange construction that helps to make them virtually invisible.

A tremendous amount of work has gone into the acoustical engineering of the Invisa Series speakers in order to deliver the highest sound quality possible in an architectural format. All five models incorporate a High Velocity Folded Ribbon (HVFR™) high-frequency radiator similar to the unit used in all of GoldenEar’s award-winning Towers, Bookshelf and Satellite speakers. The Invisa 525 and Invisa 650/652 utilize a one-piece driver/frame/flange construction in order to minimize their footprint. Solidly constructed of a marble-infused polymer, the unitized structure actually has the high-definition wide-dispersion driver constructed as an integral part. The Invisa HTR 7000 incorporates our Focus-Field™ Technology with a cast-basket 7″ bass/midrange driver and HVFR™ tweeter that are angled under the grille for optimum performance as Main and/or Surround, Rear, Height speakers in a high-quality in-ceiling home theater and music system. The Invisa MPX, with its advanced spaciousness and dispersion, is perfect for in-wall Main or Surround use. All four systems have complex multi-element crossovers to precisely blend the drivers for seamless, exquisitely natural sound quality.
