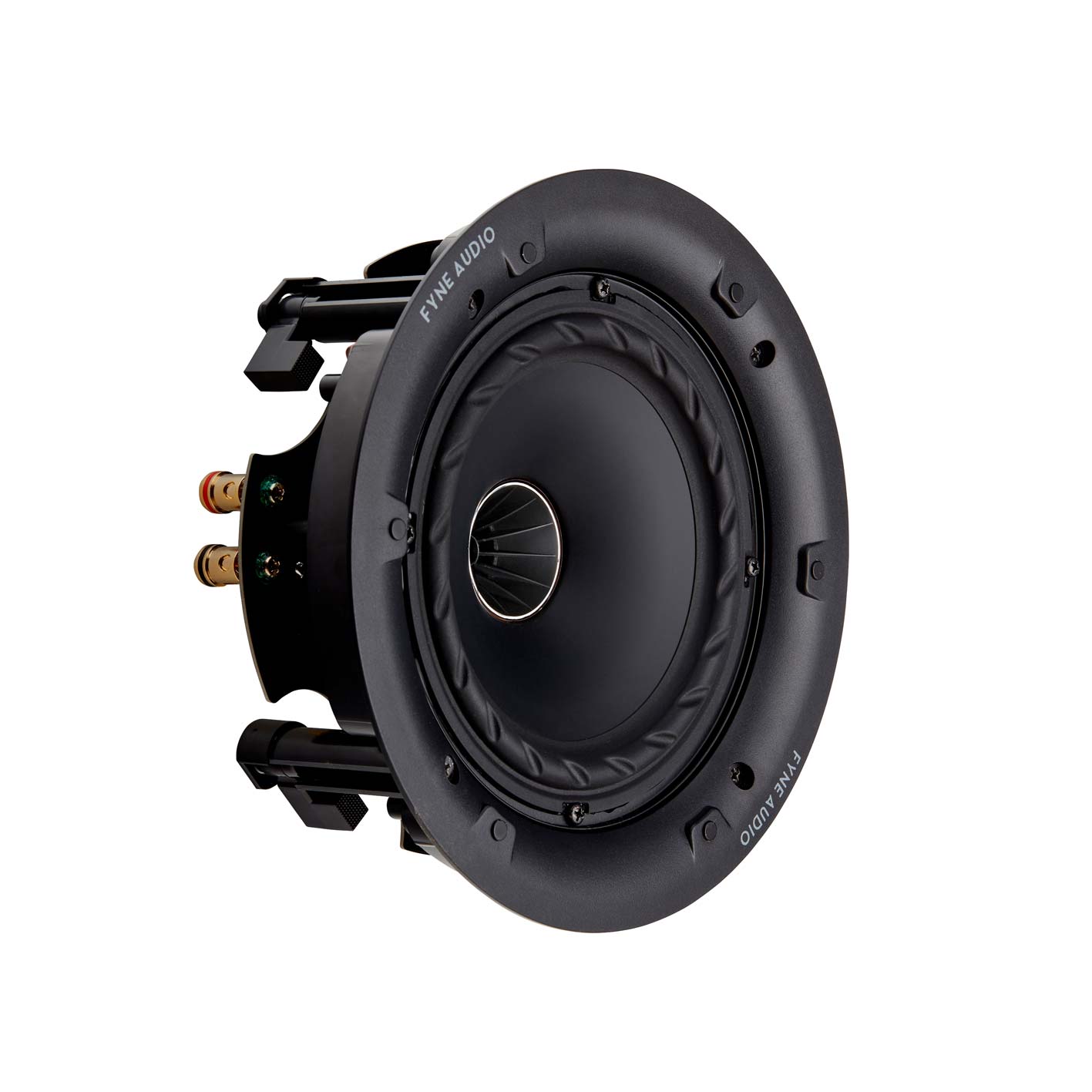

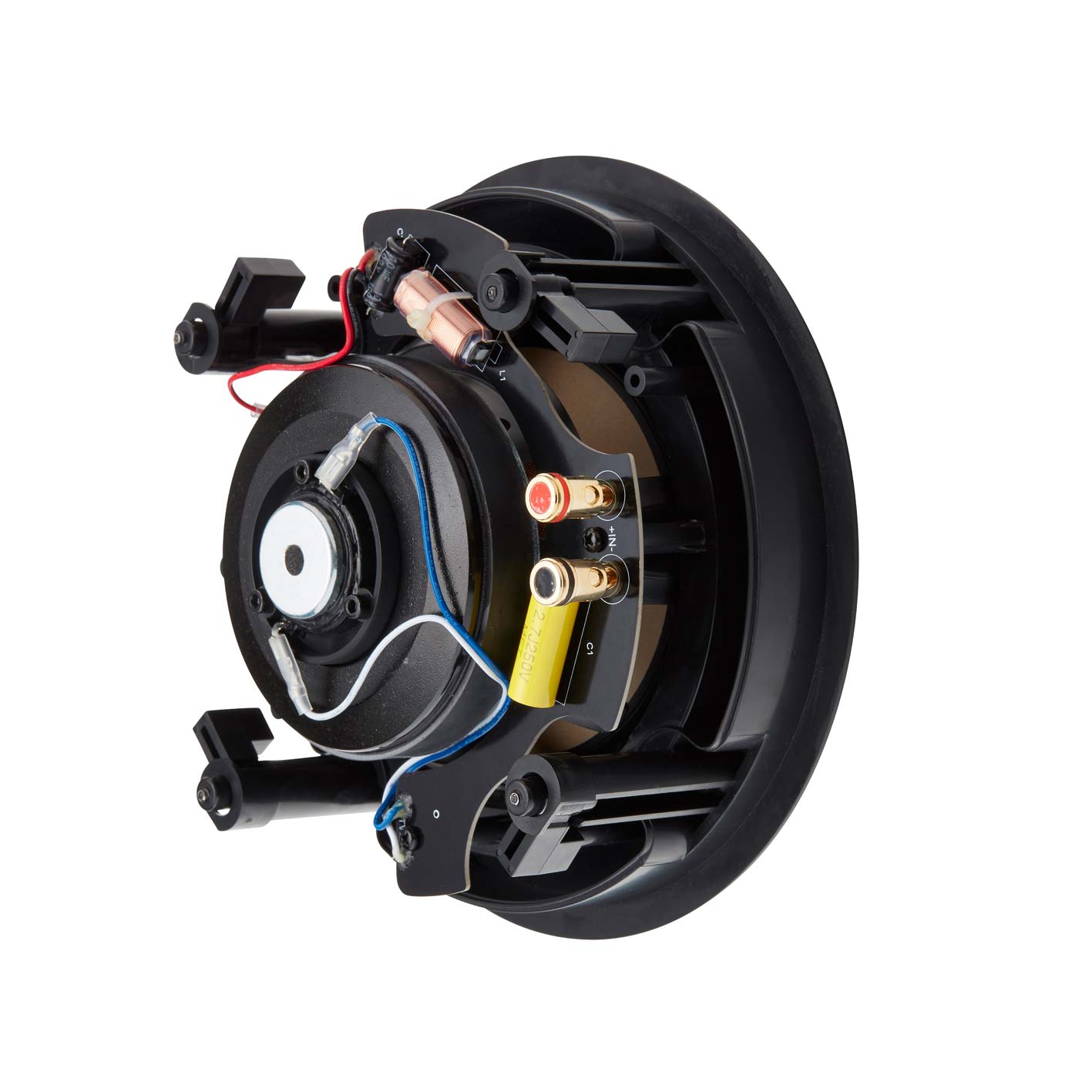

Detailed, refined and articulate, the FA501iC Home Install loudspeaker brings all the technology and sophistication of Fyne’s F500 series loudspeakers to discreet custom install applications for the home. Based on the 150mm (6”) Fyne IsoFlare driver, this audiophile-quality loudspeaker puts the series’ 25mm titanium done compression tweeter at the heart of the multi-fibre bass/midrange cone complemented by FyneFlute surround. The result is unsurpassed clarity and imaging, bringing all the benefits of full-range point source driver to a home install loudspeaker. With a crossover tuned to get the very best from a flush-mount infinite baffle position, and a shallow depth under 100mm, this compact speaker is ideal for in-ceiling or in-wall fitting. Complete with easy-to-fit clamps and both round and square low profile and fully paintable grilles, the FA501iC delivers high-performance sound while seamlessly blending into the room.

Specifikacija:

System Type 2 way IsoFlare loudspeaker for in ceiling or in wall application
Recommended amplifier power (Watt RMS) 30 – 125
Peak power handling (Watt) 250
Continuous power handling (Watt RMS) 62.5
Sensitivity (2.83 Volt @ 1m) 89dB
Nominal impedance 8 Ohm
Frequency response (-6dB typical in room) 40Hz – 34kHz
Drive unit complement 1 x 150mm (6”) IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm titanium dome compression tweeter
Crossover frequency 1.7kHz
Crossover type Passive 2nd order low pass, 1st order high pass
Dimensions – Dia x Depth 224 x 101mm (8.8 x 4.0”)
Square grille dimensions 233 x 233mm (9.2 x 9.2”)

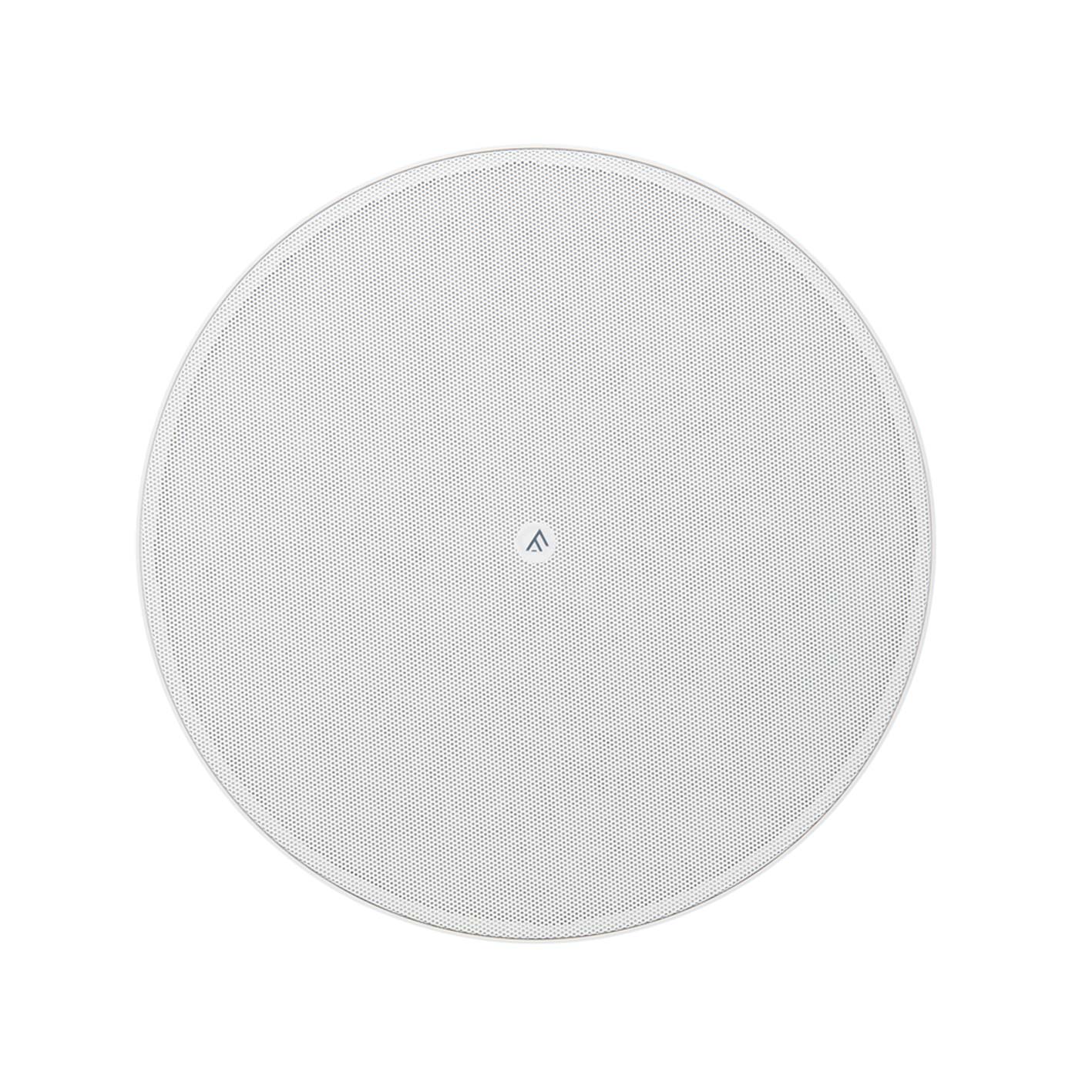

Round grille diameter 232mm (9.1”)
Cut-out diameter 208mm (8.2”)
Depth behind mounting surface 99mm (4.0”)
Clamp travel 5 – 50mm (0.2 – 2.0”)
Suggested min volume 12 L
Weight – Each 2.3kg (5.0lbs)
