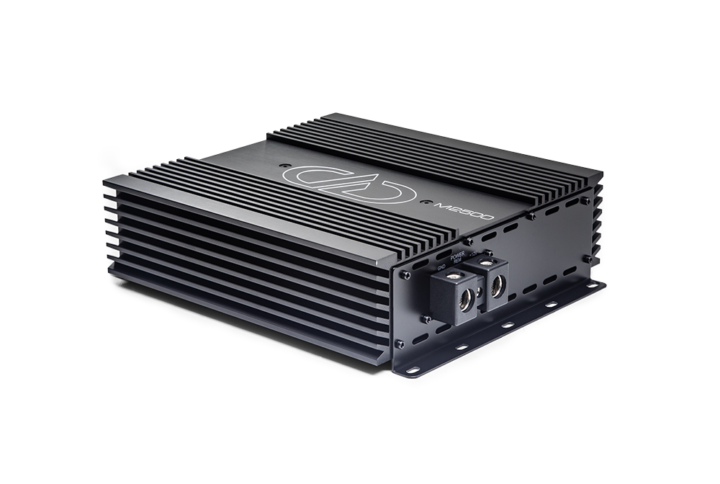

<p>The new SS amplifiers are the latest in high speed, high current class D designs offering high power and superior sound quality in compact footprints.<br><br>The classic DD AUDIO style heat sink is used in this upgrade for max cooling with 50% more side wall thickness than industry norms and extra long fins to increase surface area. All major components have been upgraded higher current mosfets and output devices, increased power capacitors, a more powerful transformer, plus improved venting and PCB with twice the thermal capability.<br><br>These new high-end mini amps are state of the art, no compromise designs yielding the best sound with unparalleled power to size ratio. The transformation is not only tangible, but audibly apparent.<br><br>Big clean power from a small package is what the SS600 does best, 600 Watts of continuous power at less than 1% THD+N. Within its chassis you’ll discover a selection of the best branded electrical components, 4 layer PCB and large toroidal transformer. Together, these elements synergize to enrich your system with precision and power.</p>

TECHNICAL DATA

Operating Voltage: 9 – 16
Test Voltage: 14.4
Input Channel(s): 1
Output Channel(s): 1
Continuous Wattage @4ohm: 250
Continuous Wattage @2ohm: 350
Continuous Wattage @1ohm: 600
Max Current Draw (Amps): 60
RCA Input Voltage Sensitivity: 6 – 0.25
High-Level Input Voltage Sensitivity: 20 – 1.1
RCA Input S/N: 95
Damping Factor: 100
THD: 0.1%
Bass Boost: 12
Frequency Response (Hz): 20 – 20k
Sub-Sonic Filter: 30 – 100
Low-Pass Filter: 35 – 250

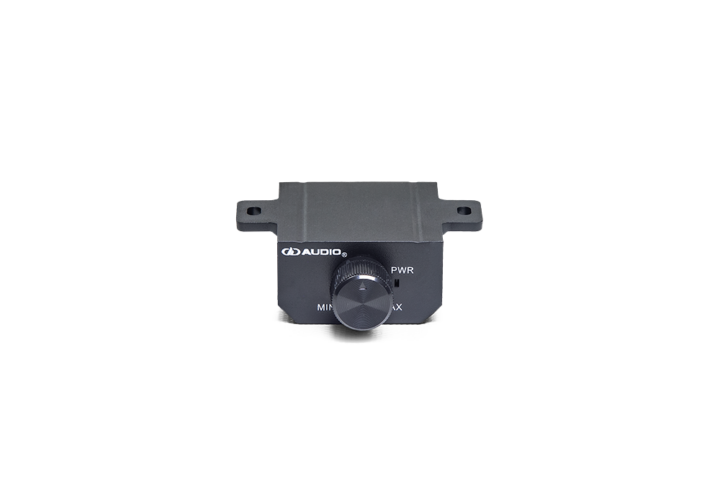

Remote Control: Remote Included in Box
Power Wire Gauge: 4
Speaker Wire Gauge: 12
Dimensions (Inches): 5.75 x 4.5 x 2
Dimensions (MM): 146 x 115 x 50
