The SPH-EVO82DAB features a modular design combining a large 8” touchscreen display with a hideaway control unit that installers can tuck into separate compartments of the automobile, providing vehicles with limited dash space a premium upgrade solution for drivers’ entertainment needs. The new receivers feature both Android Auto™ and Apple CarPlay™, as well as entertainment features such as Spotify®, Bluetooth® streaming, WebLink®, FLAC file playback and more.

Apple CarPlay
Apple CarPlay Connection USB connection
Android Auto
Waze yes
WebLink
DAB+
Digital Radio Tick Mark Approved product
Bluetooth®
Spotify
Multi colour illumination
USB Input
Cellular telephone auto muting
Screen 8″ WVGA Capacitive Multi-touchscreen
Installation Type Modular
Front Panel Multi-colour display and screen
Button Illumination RGB Colour Customisation (210,000 Colours)
Maximum power MOSFET 50W x 4

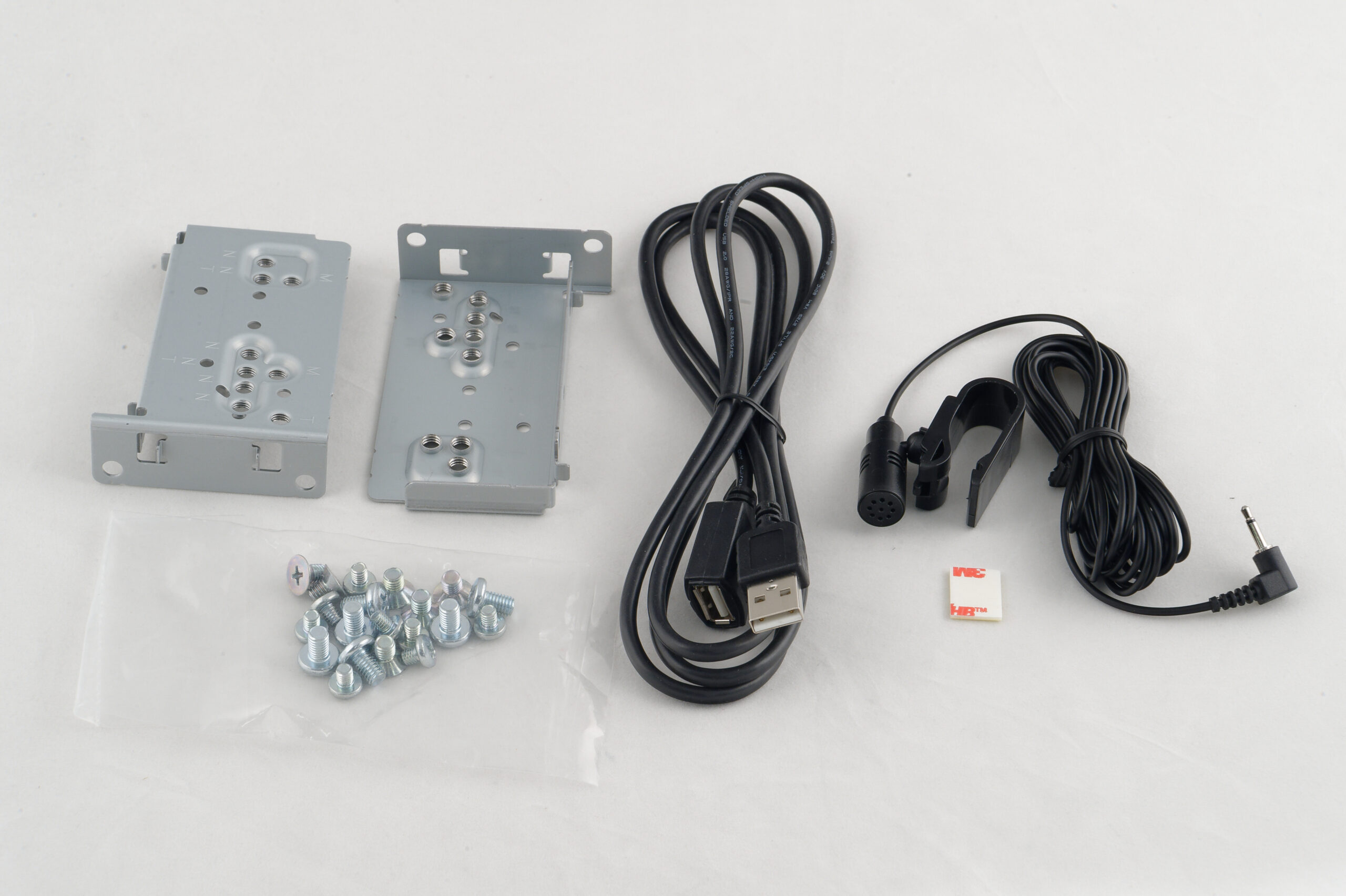

Accessories Included:
• 1 x USB extension cable
• 1 x External Bluetooth mic

Optional:
• CA-AN-DAB.001 (DAB antenna)
• CA-IU.52C (USB to Lightning cable)
• CA-MU.50 (USB to Micro USB Cable)
• CD-RGB150E (1.5m Extension Cable)
• CD-MC20 (Auto EQ microphone)
• ND-BC8 (Reverse camera)
Tuner • RDS FM/AM tuner
• DAB+ Tuner (Time Shift function)
Plays • Your iPod, iPhone, Android Smartphone
• Bluetooth audio

Via USB:
• MP3, WMA, AAC, WAV and FLAC audio files
• H.264, MKV, FLV and MPEG4 video files in Full HD
• Mpeg2, DivX video files
• JPEG image files
USB Input Rear USB (1.5 Amp)
Modular design
Apple Compatibility
Made for iPod / iPhone
Siri Eyes Free
App Mode
Works with iPod
Works with iPhone
Android Compatibility
Compatible with Android
Audio
FLAC
13-band Graphical EQ
RCA Pre-Outs 3 (Front, Rear, Subwoofer)
3-Way Network Mode
Source Level Adjuster
High Pass Filter
Low Pass Filter
Loudness
Equaliser 13-band Graphic Equaliser
Auto EQ (Equaliser)
Time Alignment
Connections
Aux-in Rear Aux-in
iPod/iPhone Direct Control
PAL/NTSC/SECAM
High Voltage Output 4V
RCA video 2 x Video Input (RCA / mini-jack AV)
Hard wired remote input
Video output Rear Video output
ISO connector
Input for rear camera Yes
RGB input No
Bluetooth
Pioneer Bluetooth
Additional Bluetooth Features • Audio streaming
• Automatic Phone book Transfer (5 x 1000 contacts)
• 2 Phones full time connect
• Autopairing via USB
Compatibility HFP/A2DP/SPP
Hands-free calls
Screen Features
Selectable wide screen modes
Rear camera switching
Aspect ratio 16:09
