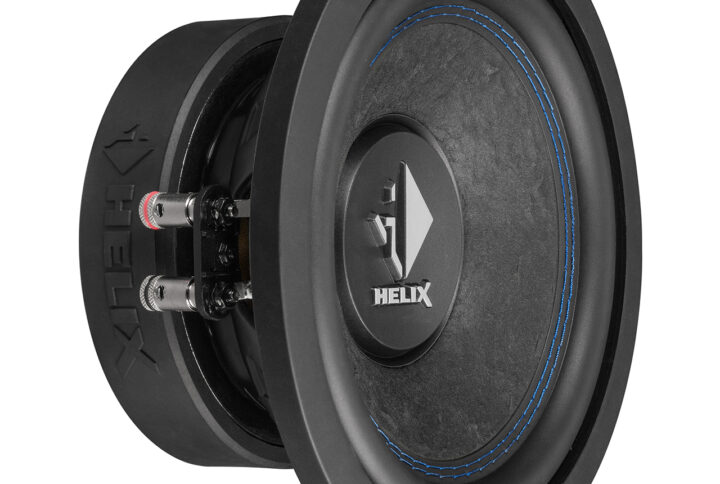

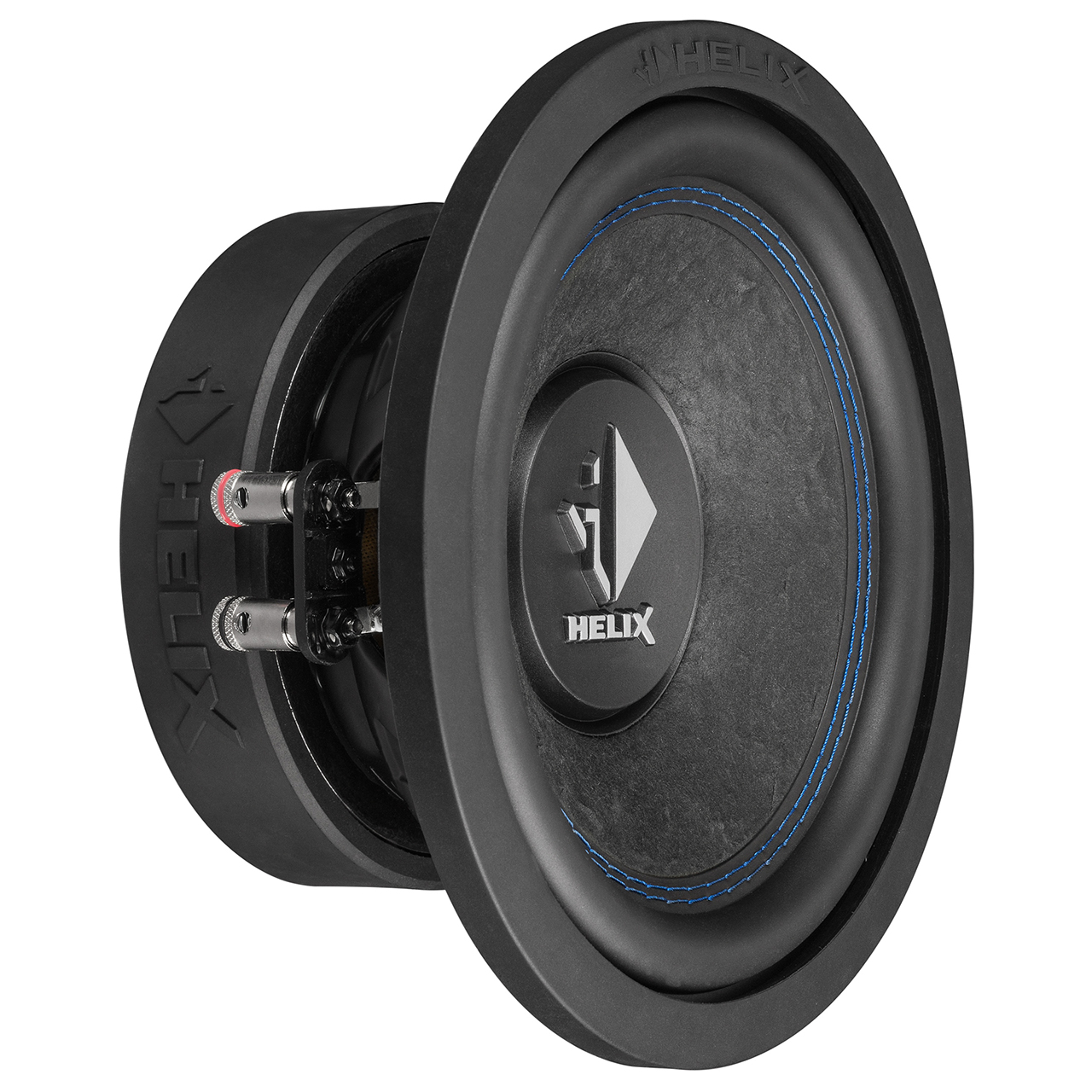

Helix K 8W-DVC2

Name: Helix K 8W-DVC2
Brand: HELIX
SKU: Helix K 8W-DVC2
Availability: InStock

€120.95

žmonių šiuo metu tai žiūri

Only3 item(s)left in stock!

Liko 3 vnt.

Pristatymo terminas: 2-6 d.d.

Garantuotas saugus apmokėjimas

NEMOKAMAS PRISTATYMAS LIETUVOJE UŽSAKIUS VIRŠ 99 EUR
PREKIŲ PRISTATYMAS LIETUVOJE PER 2 - 3 D.D. Siuntimas ir grąžinimas

Produkto kodas: Helix K 8W-DVC2 Kategorija: Be kategorijos Brand: HELIX

Aprašymas

Do-it-yourselfers, here′s your chance to create your personal subwoofer box, to fit perfect into your car!

From the technical point of view the drivers K 8W, K 10W and K 12W are absolutely identical with the subwoofers that are installed in the K series enclosure subs.

Just have a look at the Thiele/Small parameters and you will easily notice that those are designed for compact vented and sealed cabinets, yet leaving plenty of ″headroom″ for designing your own preferred sound characteristic.

If you prefer it to play safe, just choose the net volume, port tuning frequency and DSP settings as recommended in the technical data for outstanding bass performance.

So what are you waiting for? Start your ″tailor-made subwoofer project″ right now!

Recommended enclosure volumes:

Sealed box:
Net volume 8 L
Lower limiting frequency (-3dB) 50 Hz

Vented box:
Net volume 8 L
Port diameterø60 mm / 2.36″
Port area 28 cm²
Port length 42 cm / 16.5″ (angled port)
Port tuning frequencyFb43 Hz

Power RMS / max. 300 / 600 Watts
Impedance 2 x 2 Ω
DC resistance Re2 x 1.6 Ω
Fs37 Hz
Qms3.56
Qes0.46
Qts0.41
Cms262 μm/N
Vas17 L
B*I10.7 Tm
Efficiency 1 W / 1 m SPL 86.0 dB
Sd 219 cm²
Moving mass Mms69 g
Cone material: Hand-scooped paper cone
Mechanical resistance Rms4.54 kg/s
Voice coil diameter: 50.8 mm
Voice coil winding height: 24 mm
Xmax+/- 8.0 mm
Outer diameterø: 213 mm / 8.38″
Installation diameter: 182 mm / 7.17″
Installation depth: 101 mm / 3.98″.
