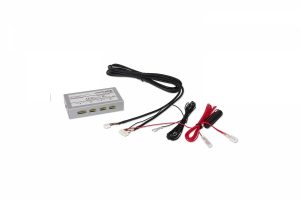

Dual Multi-Camera Interface allows connection of one or two direct connection cameras to a screen with RCA Input – KCX-C2600B

Enables connection of one or two Multi-View cameras to screens with RCA input. Includes  switch for camera image display on or off. Using the MODE button you can switch between viewing modes. Cameras turn on automatically when reversing.

Features

General

Camera accessory for direct connection cameras

Enables connection of one or two Multi-View cameras to screens with RCA input

Supports power supply for direct cameras

Required if you want front and rear camera

Includes camera view on/off of front camera and view mode select switch

Specifications

General

Output Image: Normal image, CVBS (NTSC Video signal) 16:9 Image output for wide-screen

Image Output impedance: 75 Ohm (1Vp-p)

Power Requirement: 12 V.DC

Negative Ground

Power Consumption: Less than 1.7W (12V)

Operating Temperature: -30°C – +80°C

Weight Power Section: 109g (including cable)

Weight Switch Section: 50g (including cable)

Dimensions:

Power Unit: 100 x 50 x 25mm

Switch Section: 29 x 38.5 x 13.6 mm

Power Unit Cable: 2m / 6m

RCA Extension Cable: 2m

Switch Cable: 3m
