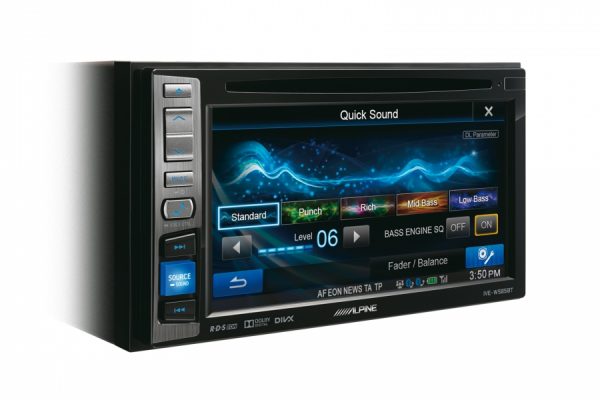

IVE-W560BT – 2-DIN MOBILE MEDIA STATION – Autoradio with Bluetooth, USB and DVD/CD Player



Full Media Enjoyment in an affordable package

This Mobile Media Station offers great sound quality and wide media compatibility at a very affordable price. Enjoy your USB, DVD, Xvid and iPod movies on the crisp WVGA display and make hands-free calls with the built-in Bluetooth module. If you are looking for a high-quality multi-talent on an affordable budget, you found what you’re looking for!

This product is also a solid base for a rear seat entertainment system.



Choice of Two Language Sets

This Mobile Media Station is available in two versions, giving you a choice of two language sets.



The IVE-W560BT features an English, German and French user interface

The IVE-W560BT-R features an English, Russian and Italian user interface

All other features are the same for both models.



Built-in Bluetooth

With the built-in Bluetooth technology, you can easily connect your mobile phone with Simple Secure Pairing to the Mobile Media Station. You can also stream your favorite music (A2DP) and control video and audio streaming (AVRCP Ver. 1.4 ).

Bluetooth® Voice Dial Function

While connecting to a voice dial compatible hands-free phone, you can make a telephone call by voice dial operation



Siri

Siri Eyes Free allows you to use an iPhone handsfree by simply speaking into the microphone. This function requires you to connect an iPhone to the unit with BLUETOOTH Auto Pairing. The Mobile Media Station uses Siri voice control specifically for driving scenarios. Tell Siri what you’d like to listen to and Siri will be on it. Want a text message read or sent? Siri has that handled. Have calls to take and return on the road? Siri is the perfect co-pilot for that.



Works with Android

If you own an Android phone, you can simply connect it via USB to the IVE-W560BT / IVE-W560BT-R to access all your music stored on the phone and enjoy it though the car’s stereo system.



Extra-Versatile Media Compatibility

The IVE-W560BT / IVE-W560BT-R will play all your favourite videos, including iPod and Xvid files via USB, and DVD-V/Xvid/MP3/WMA. You get brilliant video playback from the WVGA display, and you can further expand your system with a DVB-T tuner.



Various Ways to Expand Your System

Alpine autoradio with rear view camera screen

Alpine provides a number of ways to easily upgrade your system. The Mobile Media Station is rear view camera ready and steering wheel remote control ready (Analogue only). You can connect a DVB-T tuner for watching TV with digital quality, and do various upgrades via USB



FEATURES



Tuner

Memory Pre-sets: Pre-set Stations (FM:18, AM:12)

Memory: Auto Memory

Seek Mode: Local



RDS

RDS Functions: AF, TA, TP, PTY, NEWS, EON



BLUETOOTH®

Built-in BLUETOOTH®

Hands Free Calling: HFP (Hands Free Profile)

Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible

Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Compatible

Phone Book Synchronization

Phone Book Search: Alphabet search

Speed Dial: 6 Pre-set Memory

Voice Dial Operation (depends on mobile phone)

Auto Answer

Call Waiting

Call History Display: Dialled Call

Redial Function

Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume

Signal Strength Indicator

Microphone Included



Made for iPod® / iPhone®

Compatibility for iPod/iPhone: Made for iPod touch 5th/4th/3rd Gen., iPod nano 7th/6th/5th Gen., iPod classic 160GB/120GB/80GB, iPhone:6S, 6S Plus, 6, 6 Plus, 5, 5S, 4S, 4, iPhone 3GS

Connection: USB Connection

Music Playback

Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer

Alphabet Search

Direct iPod/iPhone Control

M.I.X. (Shuffle) Play: Song, Album

Repeat

Battery Charging

App mode for iPod Touch, iPhone (from iOS 4)



Disc Player

Disc Type: DVD/CD Player

Disc Playback Type: DVD-Video, DVD±R/RW, CDDA, CD-R/RW, Video CD

Playable Format: MP3/Xvid/MPEG-4/JPEG

M.I.X. Random Play

Repeat

DVD Direct Menu Control

CD Text Display

24 Bit DAC



USB Media Connection

Music & Video Playback Compatible

Playable Format: MP3/Xvid/MPEG-4/JPEG

USB Class: Mass Storage Class

Folder Up/Down

Banking: Max. 256 folders, 2000 songs



Sound Tuning

Subwoofer Level Adjustment

Subwoofer System Select: Subwoofer Level Control Management

High Pass Filter / Low Pass Filter

3 Band EQ (10 pre-sets + custom)



General

Power Output: 4 x 50 W High Power Amplifier

Display: 6.2 inch WVGA High Resolution Display

Control Type: Touch Screen and Rotary Encoder

Face Colour: Black

Blue Illumination

PreOut: 2 PreOuts (2V, Front + Rear/Subwoofer)

AUX-Out: 1 Video Aux Output

AUX-In: Front Aux Input (for Audio, 3.5mm mini jack), 1 A/V Aux Input

Steering Wheel Remote Control Ready (requires additional Alpine interface)

Remote Control Ready

Camera Connection: RCA Connection Compatible

Clock

Auto Dimmer

Security Code Anti-theft

Detachable 2DIN Size Trim Plate

Remote Turn-On

Remote control included: RUE-4233

Microphone included

The IVE-W560BT features an English, German and French interface

The IVE-W560BT-R features an English, Russian and Italian interface



SPECIFICATIONS



Screen

Screen Size: 6.2 inch Wide VGA Screen

LCD Type: Wide LCD colour monitor

Operation System: TFT Active Matrix

Number of Picture Elements: 1,152,000 pixels

Colour system: PAL/NTSC/SECAM/PAL-M automatic select



Max Power Output Ratings

Max Power Output: 4 x 50W



FM Tuner

Tuning Range: 87.5 – 108.0 MHz

Antenna (aerial) terminal: External antenna (aerial) connector

Usable Sensitivity: 10 dBf

Selectivity: 70 dB at 400 kHz

Signal-to-Noise Ratio: 70 dB (mono)

Separation at 1 kHz: 30 dB

Frequency response: 20 – 15,000 Hz



AM Tuner

Tuning Range: 531 – 1,602 kHz

Antenna (aerial) terminal: External antenna (aerial) connector

Intermediate frequency: 9,267 kHz or 9,258 kHz/4.5 kHz

Sensitivity: 44 μV



Disc Player

Frequency Response: 20 – 20k Hz

Total Harmonic Distortion: 0.05%

Wow & Flutter (%WRMS): B.M.L. (Below measurable limit)

Signal-to-Noise Ratio: 80 dB

Video Signal-to-Noise Ratio: DVD: 60 dB

MP3 Decoding: MPEG-1/2 AUDIO Layer-3

WMA Decoding: Windows Media™ Audio

Xvid Decoding: “.avi” ,“MPEG 4” File



USB

USB Requirements: USB 1.1 / 2.0

Max. Power Consumption: 1,000 mA

USB Class: Mass Storage Class

File System: FAT 12/16/32

Frequency Response: 20 – 20k Hz (±1 dB)

Channel Separation (at 1kHz): 75 dB

Dynamic Range (at 1kHz): 95 dB

Total Harmonic Distortion (at 1kHz): 0.01%

Wow & Flutter (%WRMS): B.M.L.

Signal-to-Noise Ratio: 80 dB

Horizontal Resolution: 500 lines or greater

Video Output Level: 1 Vp-p (75 ohms)

Video Signal-to-Noise Ratio: DVD: 60 dB

MP3 Decoding: MPEG-1/2 AUDIO Layer-3

WMA Decoding: Windows Media™ Audio



BLUETOOTH®

BLUETOOTH® Version : Bluetooth V3.0

Output Power: +4 dBm Maximum (Power class 2)

HFP (Hands Free Profile) 1.6

A2DP (Advanced Audio Distribution Profile) 1.2

AVRCP (Audio/Video Remote Control Profile) 1.4

PBAP (Phone Book Access Profile)

OPP (Object Push Profile)

SPP (Serial Port Profile)



Sound Tuning

Subwoofer Level Adjustment: -10 to +10 step

High Pass Filter & Low Pass Filter: Off / 80 / 100 / 120 / 140 / 160 Hz

3 Band EQ High / Mid / Low -10 to +10 steps



General

Power Requirement: 12 V DC car battery (negative ground (earth)

Weight: 1.7 kg



Dimensions

DIN Size: 2DIN

Chassis Size (W x H x D) mm: 178 x 101 x 169 mm
