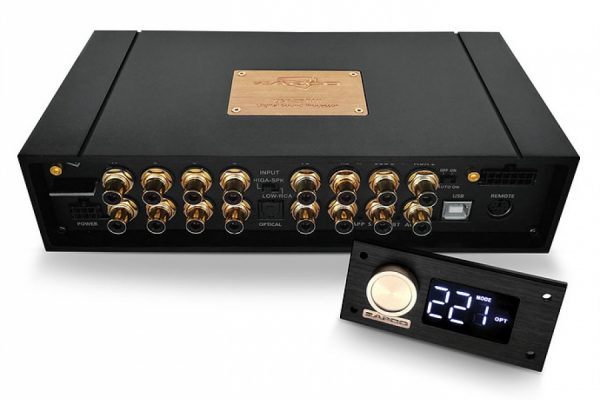

ZAPCO DSP-Z8 IV   8 kanalų skaitmeninis garso procesorius

Specifications:

● Inputs: Main RCA – Aux RCA – Optical

● Input range: 300mV-4V* (*Input can be lower or higher but max sonic performance is in this range)

● Optimum Input: 4V in for 5V Out @0dB

● THD+N: Analog Input 1V to 5V: ≤ 0.005%

Digital Input: @0dB: ≤ 0.002%

Analog Input 1V to 5V: ≤ 0.005%

● S/N: Analog in A weighted: ≥ 106dB

Digital in A weighted: ≥ 110dB

● Channel Separation: ≥ 90dB

● Noise Floor without signal: ≥ -128dB

● Each Output: Crossover HP/LP/None 6dB

Steps 6dB~48dB, Signal delay 0~24ms set by distance with ms override.

Phase 0⁰/180⁰, Graphic EQ 31 bands Boost/Cut with variable Q, Paragraphic EQ 31 bands Ch1~6 and 11 bands Ch7/8, Muting by Channel or linked groups. Also SOLO single channel play

● Dim.: 208mm (L) x 50mm (H) x 128mm (D)

● Operating Current: 600ma

● Recommended Fuse: 1.5A
