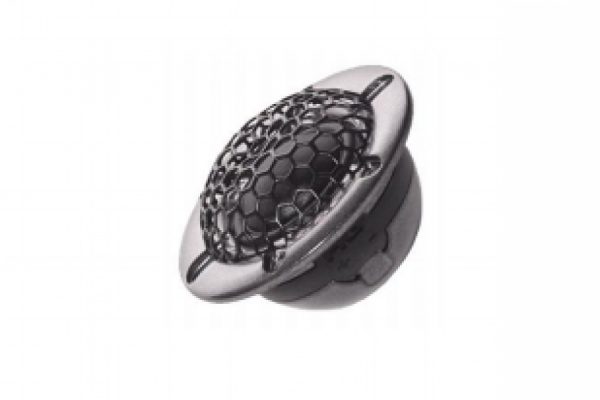

AEROSPACE 80

Specifications:

Name HG-80AeroPP-3

DC resistance Rdc 2,5 Ω

Nominal impedance ZN 3 Ω

Resonance frequency fs 110 HZ

Voice coil diameter 25 mm

Mechanical Q factor Qms 3,27

Electrical Q factor Qes 0,34

Total Q factor Qts 0,31

Moving mass Md 3,3 g

Effective piston area Sd 35 cm2

Mechanical resistance Rms 0,7 Kg/s

Compliance Cms 0,63 mm/N

Force factor BL 4,1 Tm

Equivalent air volume Vas 1,1 dm3

Efficiency η 0,41 %

SPL 2,83V/1m 93,19 dB

High-pass / Hochpass > 300 Hz 18 dB/Oct  /  > 350 Hz 12 dB/Oct

Cone: GLADEN C5

Spider: Connex

Surround: SBR

Coil former: Aluminum

Basket: Steel

Phase Plug: Aluminum
