3 m. HDMI kabelis.

Prekės prieinamumas: klausti

      Image Safe Checkout
      Garantuotas saugus apmokėjimas
      • PREKIŲ PRISTATYMAS LIETUVOJE PER 2 - 3 D.D. Shipping & Return
      SKU: 1474 Kategorijos: , ,

      HDMI-HDMI HD A/V 3M ilgio kabelis

      Kaina už 1 vnt.


      HDMI HD A/V HD5/S slim cable (7mm)
      HDMI High Speed with Ethernet Cable
      HDMI cables 0.5m to 5m is assembled with HD5/S slim cable.

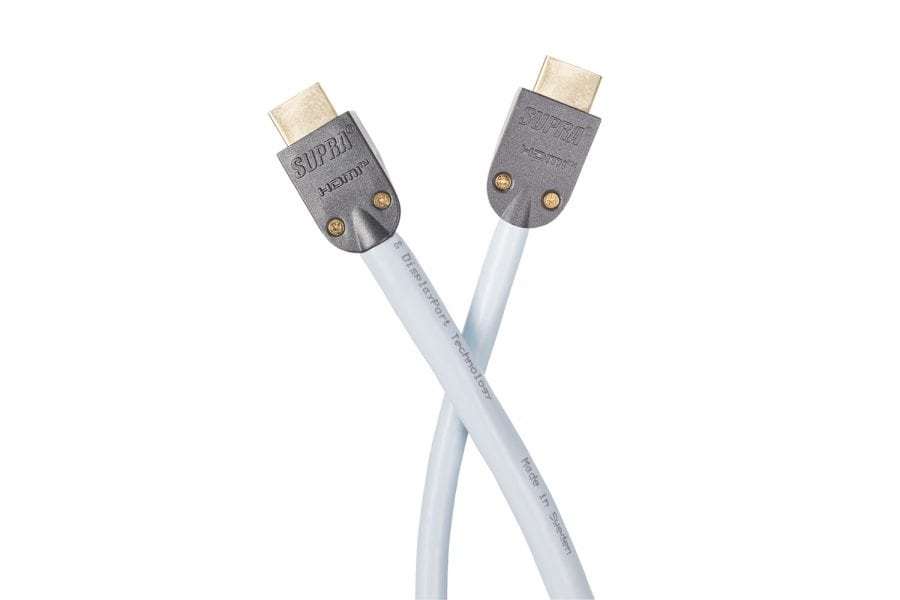

      The cable to the right of the picture

      HDMI HD A/V HD5 cable (9.5mm)
      HDMI High Speed with Ethernet Cable
      HDMI cables 6m to 30m is assembled with HD5 cable.
      The cable to the left of the picture
      From the start and on, we have delivered trustworthy HDMI cables, hence our reputation on the installation market, where we supply large quantities to hotels, conference facilities and similar, and where no one overlooks sub-standard performance. Nine years of continuous product development has resulted in the Supra HD5 HDMI Met-S/B, which (according to us) is the best passive HDMI cable there is, offering HDMI High Speed with Ethernet & 4K resolution. We guarantee that our HD5 cable handles HDMI 1080P signals up to 32 meters – passively! We think we are alone to offer this.

      High Speed HDMI with Ethernet transmission
      SUPRA launched its first HDMI cable in 2004. Already from the very beginning, the HDMI standard and its contact gave most manufacturers a hard time to achieve perfect performance. Yet many cables were launched claiming fluent transmission, a fact many customers soon found reason to doubt. When we at Supra started our development, we knew how challanging this would become and left nothing to chance.
      We know also the burden of proof, why we test and approve in compliance with the latest test provisions by HDMI´s Accredited Testing Center in the USA – a quality assurance treat to our customers. The bandwidth of the HD5 is 1100MHz, above three (< 3) times the specification of HDMI High Speed (340MHz). There are some interesting esoteric cables out there claiming to do the job but only a few are actually up for it. Supra High Speed HDMI is one.
      With the addition of our smart contact Supra Met-B/S, the cable is now possible to route in 20 millimeters conduits including the contact. No more on-site cut-offs and re-soldering, jeopardizing the typical Supra top notch performance.

      SUPRA HDMI Features & benefits
      Transmits today’s challenging formats flawlessly
      Future proof – Meets today’s HDMI standard and known requirements of tomorrow
      Sturdy design – Withstand the normal installation abuse
      up to 23AWG leads – For minimum losses
      Triple screen technology – Provides for long distance clearance hence freedom of installation with maintained signal integrity
      Made in Sweden, three step quality plan – Unsurpassed quality and reliability

      High resolution picture and sound
      We often meet scepticism when we talk about HDMI cables. ”Does it really matter?” ”I mean, it’s only a data stream? Yes, it is a stream of digital bits. Yes, it does matter. Unfortunately there is an intermediate state before the signal is so corrupt it cannot be read and blanks out. Many claim that if the screen shows, the signal is good enough. There is circuitry in the receiver which tries to repair broken data stream by buffering and error correction, but this is based on best possible estimates and is not necessarily what was sent. You might experience sync problems (delays), distorted colorations, insufficient blackness, noise and unexplainable audible pops during which the hardware is working overtime trying to repair the fragile bitstream. Do your precious hardware the best possible favour you can by connecting it using SUPRA HDMI cables and both you and your equipment will fully enjoy the show.

      SUPRA High Speed HDMI with Ethernet Cable (v2.0) in short:
      Signal Bandwidth: 1100 MHz
      TMDS Bandwidth: 18 Gbit/s
      Color Depth: 48 bit (16 bit per color channel)
      Maximal resolution and corresponding cable length: 4096 x 2160 @ 60 fps; 1-10 meter, 4096 x 2160 @ 24/30 fps; <10-20m and 1080p @ 24/30 fps up to 30 meter passively!
      Deep Color, x.v.Color
      Auto Lip Sync
      Dolby TrueHD, DT-HD Master Audio
      3D over HDMI
      Audio Return Channel
      Ethernet Channel

      Mechanical Specifications

      Standard: HDMI 2.0, High speed with Ethernet
      Connection configuration: Single-Link
      Connectors: HDMI-HDMI Met-S
      Signal direction: Bi-directional
      Included HDMI connectors: 2 x Supra Met-S (straight)
      Additional connectors: Supra Met-B (bent housing sold separately)
      Applications e.g.: Bluray/Projector/TV/DVD/TV-decoders
      Max resolution per cable length interval in passive appliances: 4096 x 2160 @ 60 fps; up to 10 meter, 4096 x 2160 @ 24/30 fps; up to 20 meter and 1080p @ 24/30 fps up to 30 meter
      Solder tin: Almit SR-34 Super
      Cable clamping: Molded connector body fitted in aluminium housing
      Cable: Supra HD5/S or HD5
      Lead area, 0.5 – 5m: 5xTMDS 0.128 / 26 (HD5/S) mm2 / AWG
      Lead area, 5 – 30m: 5xTMDS 0.26 / 23 (HD5) mm2 / AWG
      Lead material: Solid strand oxygen-free copper
      Di-electric (insulation): Air-injected PE foam for minimal capacitance
      Inner shield / coverage: Aluminized PET foil / 100 %
      Communication leads (HD5/S): 5 x 0.081 / 28 (di-electric: PE) mm2 / AWG
      Communication leads (HD5): 5 x 0.129 / 26 (di-electric:PE) mm2 / AWG
      Outer shield / coverage: Aluminized PET foil and braid / 100 %
      Jacket: Heat an age resistant PVC
      Flame retardancy: No, see FRHF Version
      Cable outer dimension (HD5/S): 7 mm
      Cable outer dimension (HD5): 9.5 mm

      Electrical performance – Supra HD5/S
      Resistance: Rev. Ohm / km
      Capacitance: Rev. pF / m
      Characteristic impedance: 100 Ohm
      Velocity factor: 0.8 x C (speed of light)

      Electrical performance – Supra HD5
      Resistance: 82 Ohm / km
      Capacitance: 42 pF / m
      Characteristic impedance : 100 Ohm
      Velocity factor: 0.8 x C (speed of light)
