SUPRA COMBICON CRIMP ASSORTMENT 521 PARTS

Kaina už rinkinį.

Supra CombiCon Crimp M6 Assortment
An on-location assortment supplied in a heavy-duty Aluminum case containing all necessary parts to mount contacts to any of our speaker cables using either crimp1) or nut clamp M6 connector bodies.

Content
50 pieces of BFA/Banana M6
50 pieces of Fork M6
50 pieces of Crimp Body M6 CB-01
50 pieces of Crimp Body M6 CB-02
50 pieces of Crimp Body M6 CB-04
50 pieces of Crimp Body M6 CB-06
50 pieces of Sleeve S1-2 Black
50 pieces of Sleeve S1-2 Red
50 pieces of Sleeve S4-6 Black
50 pieces of Sleeve S4-6 Red
10 pieces of Body M6 Red (50 pieces in refill pack)
10 pieces of Body M6 Black (50 pieces in refill pack)
1 piece Crimping Pliers

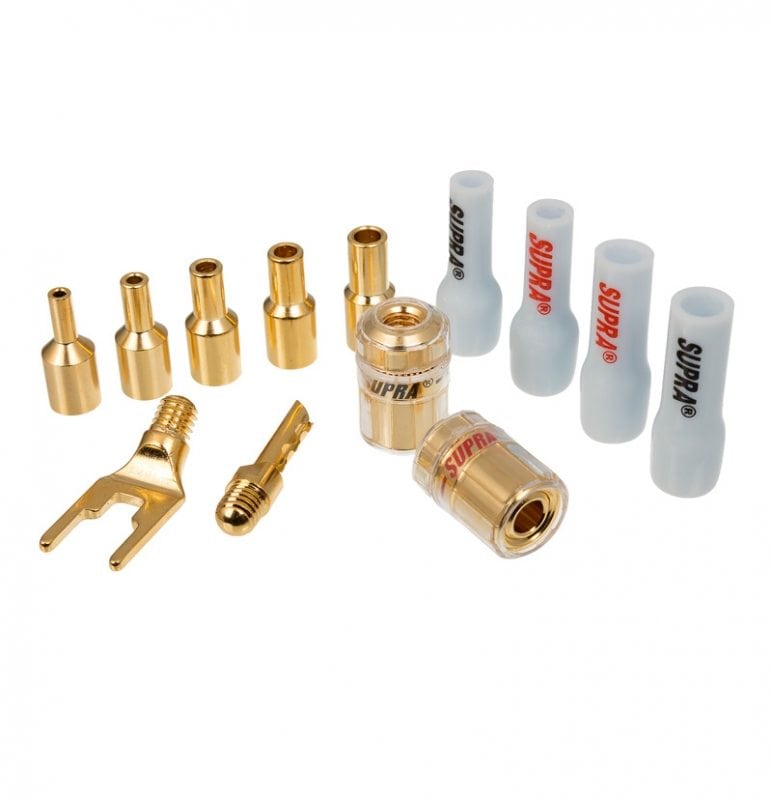

The CombiCon Crimp Bodies M6

This crimp connector comprises three parts: a 24K goldplated Copper connector crimp body with a M6 thread, a contact part which kan be either a BFA/Banana or a Fork and finally a sleeve to finish up the perfect joint. The crimp body is as said, crimped on to the cable strands, a very delicate junction between cable and contact1). The M6 threaded crimp body are available for the cable sizes 1.5, 2.5, 3.0, 4.0 and 6.0 mm2.

The CombiCon Bodies M6

The connector Body attach to the cable either straight or in 90° angle. Click the pictures above for better views. A speaker cable with fork connectors may also attach to the connector Body, often to achieve a different access angle of the connection to the speaker terminal. Printing in red and black, respectively, for polarity identification. The connector Body houses CombiCon BFA/banana or Fork in the M6 thread.

The CombiCon Contact Parts M6

The 24K gold plated BFA/Banana pin is re-engineered, reinforced and now equipped with a key grip suitable for a small spanner or a 5 mm fixed wrench and M6 thread. The banana pin fits into CombiCon Body M6 and CombiCon Crimp Body M6.

The 24K goldplated Fork (spade) features a two-step inner width to facilitate connection to the vast majority of speaker terminals and the design is reinforced compared to the previous version. The Spade fits into CombiCon Body M6 and CombiCon Crimp Body M6. The Spade is angled for easier mounting in tight spaces.

The CombiCon Sleeves

There are sleeves in heat and heat resistant PVC to finish up the joint between cable and Body. They are available in several sizes for each Supra cable size. The sleeve printing in red or black Supra logotype, establishes the final contact polarity. N.B. Make sure not to mix the polarity, due to phase error in the sound reproduction.

Making a electrically and sonically benign connection, using the crimp bodies, requires certain basic knowledge as e.g. electricians possess, as well as some of our retailers. We do not recommend to try this connection without being absolute certain, how a correct electrical joint is performed. Neither do we recommend any attempts to connect with other tools than the Supra CombiCon Pliers, even if proper skill requirements is met. Warning! Negligance to follow the above recommendation may in its mildest form cause substandard sound quality, but also include the risc of damaging your amplifier and in worst case the cable may start a fire due to insufficient joint conductivity, resulting in excessive heat development.
